Description

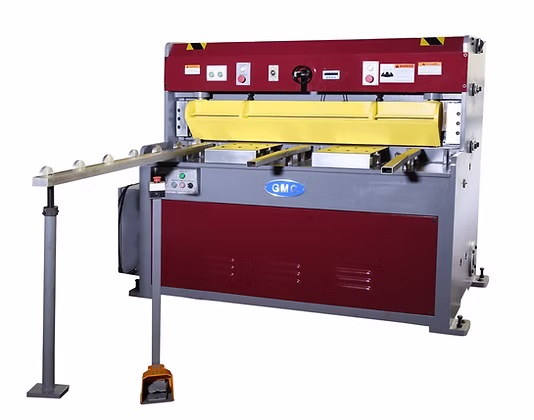

The Sheet Metal Shear HS-0625E by GMC Machine Tools offers exceptional cutting power, precision, and durability. With its versatile capabilities, user-friendly design, and advanced safety features, this machine is the ideal choice for metalworking professionals seeking efficiency and superior results. Invest in the HS-0625E and experience enhanced productivity and profitability in your sheet metal cutting operations.
6′ x 1/4″ New GMC Hydraulic Metal Shear Model HS-0625E Specifications:
|
Model |
HS-0625E |
|---|---|
| Cutting Capacity |
mild steel(hot roll) Tensile 60,000PSI, stainless steel & cold roll, tensile 85,000PSI, soft aluminum, tensile 28,000PSI, min. thickness |
| Mild Steel | 6′ x 1/4” |
| Stainless Steel | 6′ x 10 Ga. |
| Soft aluminum | 6′ x 3/8″ |
| Min. thickness | 20Ga |
| Blade length | 6’6″ |
| Strokes Per Minute | 10-17 |
| Worktable Height | 34 1/2″ |
| Front Support Arm | 24″ |
| Backguage: | 24″ German SIKO Powered Backguage |
| Blade Rake Angle | 2 Degree |
| Oil Tank Capacity | 31 Gallons-Hydraulic oil Shell #68HD |
| Main Motor |
15 HP, 220V/30A, 440V/15A (optional) |
| Backguage Motor | 1 HP 220V/440V (3 Ph.) |
| Amperage Draw | 60A/220V, 30A/440V |
| Machine Weight | 8,150 lbs |
| Shipping Weight | 8,550 lbs |
| Machine Dimensions | 102x89x63” |
| Shipping Dimensions | 112x79x70” |
6′ x 1/4″ New GMC Hydraulic Metal Shear Model HS-0625E Standard Features:
- ISO 9001 certified
- Taiwan machines
- 24” SIKO Front Operated power back gauge w/ micro adjustment 0.004” , inch/mm digital display
- Quick Change Blade Gap Adjustment (BGA), with gap dial
- CE standard “OMERO” electric control system
- Meet OSHA safety standard code
- Shadow line for accurate straight cutting
- Adjustable cutting length and stroke
- Ball transfer plates on worktable for easy loading workpiece
- Well balanced and sturdy all steel machine frame
- German made Hydraulic logic system centrally located and quiet
- Hydraulic hold-downs with anti-mar neoprene
- Shear blades are high grade carbon/chrome alloy steel and hardened to 60 HRC, 2-edge indexable upper blade and 2-edge indexable bottom blade
- Full length viewable safety finger guard to protect operator from cutting hazard
- Removable safety foot pedal, automatic blade raise up on removal of foot from pedal
- Hydraulic, electrical overload protection
- Compact operator control panel
- All motors are overload protected & low voltage control system
- Jog or continuous auto cycle cutting operation modes
- One year industrial warranty for parts
6′ x 1/4″ New GMC Hydraulic Metal Shear Model HS-0625E Standard Equipment:
- 1 each 60” squaring arm with inlaid inch/metric dual scale
- Quick change blade gap adjustment (BGA) with gap dial
- Shadow line for accurate straight cutting
- drop back chuter
- Upper and bottom blade set with 2-edge on bottom & 2-edge on upper
- 2 each 24” front support arms
- Hydraulic hold-downs with anti-mar neoprene
- Full length viewable finger guard
- 24” German SIKO Front Operated Power Back Gauge with micro adjustment , accuracy 0.004” inch/metric digital display
- Removable safety foot pedal
- Tool box
6′ x 1/4″ New GMC Hydraulic Metal Shear Model HS-0625E Optional Equipment:
| Safety fence for enclosure of the back side of the machine | $1,150.00 |
Disclaimer:
Please note this machine is incompatible with the use of a rotary phase converter. Any attempt to purchase, install, or employ one, whether carried out by you or a professional service company, will automatically void the warranty. It is crucial to understand that any such actions are entirely the responsibility of the buyer.
This disclaimer is intended to clearly convey that the utilization of a rotary phase converter to power or operate this machine is not supported
