Description
6′ x 44 Ton New U.S. Industrial Hydraulic Press Brake Model USHB44-6CNC Specifications:
| Working Pressure | 44 Tons |
| Length of Working Table | 78.7″ |
| Distance between Housings | 63.7″ |
| Throat Depth | 7.8″ |
| Stroke Adjustment of Ram | 1.96″ |
| Ram Travel | 3.93″ |
| Open Height | 12.5″ |
| Rapid Ram Travel Speed | 2.4″/sec |
| Rapid Ram Retreat Speed | 2.0″/sec |
| Backgauge Travel | 24″ |
| Pressing Speed | Dependent on Tool Load |
| Hydraulic Oil Capacity | 36 gal |
| Motor Horsepower | 7.5 HP, 220 or 440 volts, 3 ph. 30/15 amps |
| Net Weight | 7,700 lbs |
| Length | 101″ |
| Width | 60″ |
| Height | 80″ |
6′ x 44 Ton New U.S. Industrial Hydraulic Press Brake Model USHB44-6CNC Standard Features:
- Ram deflection adjustment
- Massive torsion bar for parallelism
- Three speed ram
- Bottom time delay
- Inching, single cycle and auto run
- Setting for ram speed slowdown and rapid return position
- Forged heavy duty cylinder and body
- Rapid approach, bending cycle and rapid retreat
- All steel construction
- Bed tools are held with standard slot for ½” x 5/8” tang w/set screws, plus die clamps are included
- Ram takes standard American Tang Tooling (1/2” x 5/8”) and American Safety Tang Tooling, and Z1
- Space between Ram Tool Clamps allows for deep box bending
- Free Gooseneck Punch and multi-opening Die for up to 90° forming up to 10-gauge mild steel
6′ x 44 Ton New U.S. Industrial Hydraulic Press Brake Model USHB44-6CNC Optional Features:
| CNC 2-Axis Color Graphic Control: Shown above Controls BOTH Bend Angle and Backgauge Position. Comes with 6” LCD touch screen. Code and Graphic programming included. Graphic allows 10 bends per program/cross-section. Controls features a tool library, Metric/inch switchable, Auto bend sequence, Auto retract of Backgauge, Spread length, Interference bend alert, Calculated bend allowance, Programmable ram dwell and much more. Control stores thousands of programs with USB Port, Ethernet and RS232 for program backup. | $4,995.00 |

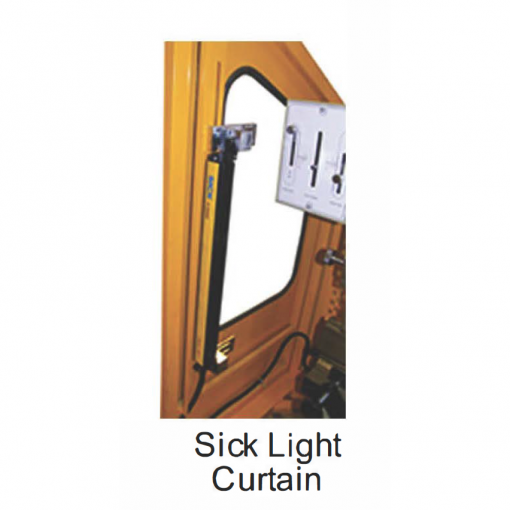

| Sick Model deTec 4 Light Curtain System – Minimum OSHA Requirement | $4,990.00 |
| Upgrade to Fiessler Akas II Laser Guarding (Substitute for Sick deTec 4) | $9,995.00 |
| Upgrade to Pilz PSENvip LED Safety Guarding (Substitute for deTec 4) | $8,495.00 |
| Add Third Axis (Back Gauge Height controlled from operator panel) | $4,995.00 |

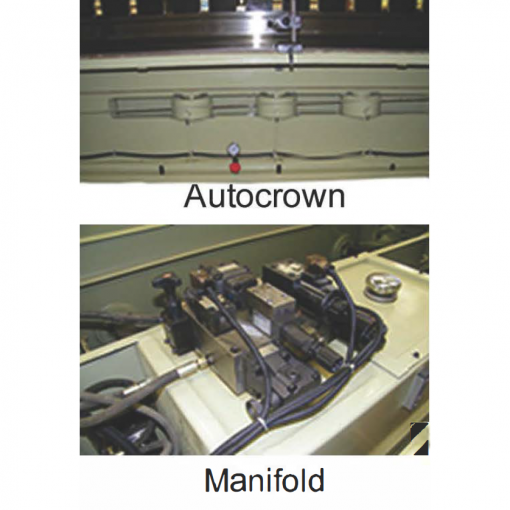

| CNC Controlled Mechanical Auto Crown | $9,995.00 |
| Upgrade to Cam-Lever Quick Action Ram Clamps | $2,695.00 |
| High Speed Servo Back Gauge | $6,995.00 |
| Training in our Memphis, TN Facility | No Charge |
| Training at customer site, less than 300 miles from Memphis | $2,995.00 |
| Training at customer site, more than 300 miles from Memphis (if outside continental USA, please call for quote) | $3,995.00 |
