Description

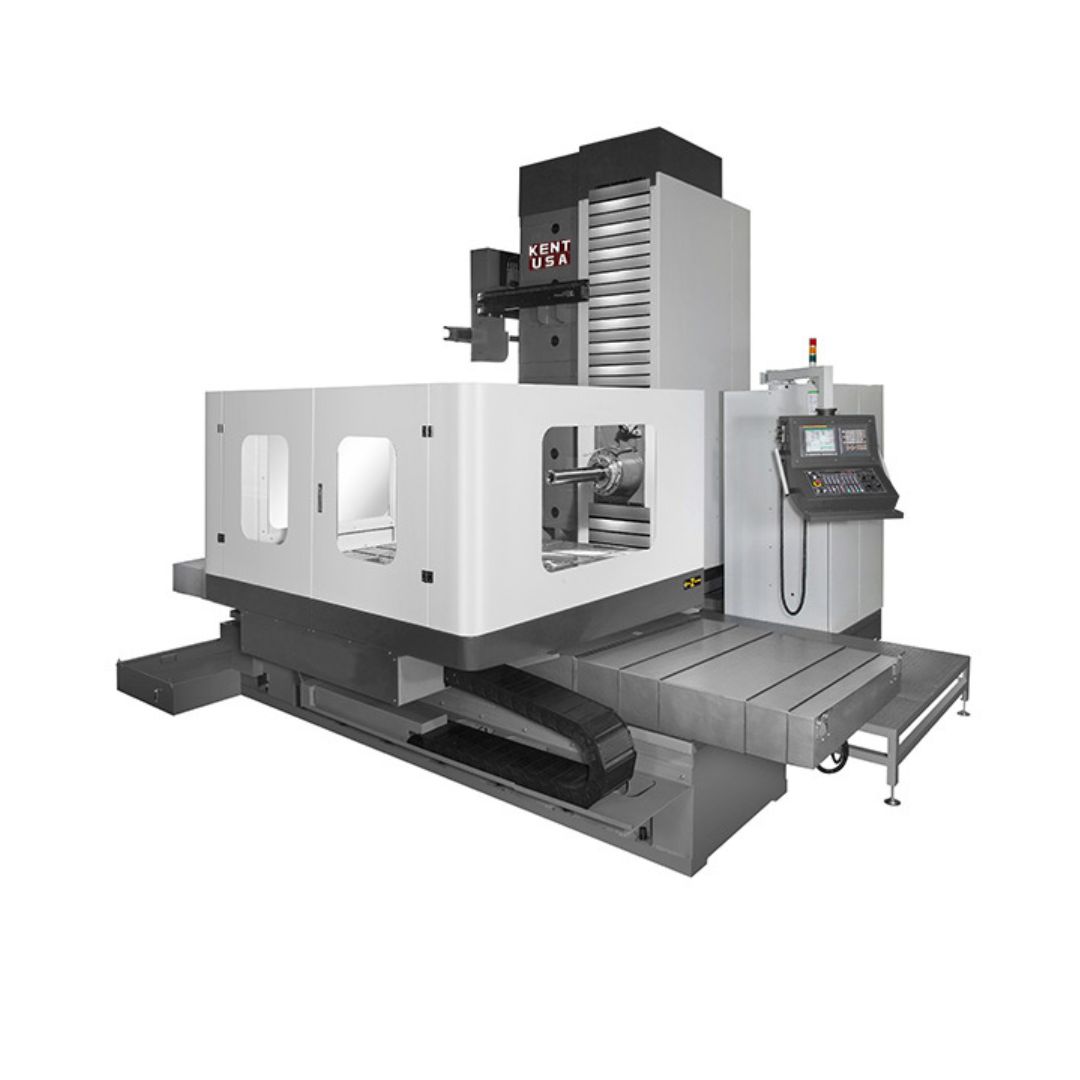

62″ x 55″ New Kent USA Horizontal Boring Mill Model KBM-11022 Specifications:
| Working Surface of Table | 62″ x 55″ | |
| T-Slots | 0.86″ x 0.27″ | |
| Spindle Speed | 0~2000(Opt. 2500) RPM | |
| Spindle Diameter | Ø 110 | |
| Max. Tool Weight | 55.1 lbs | |
| Max. Tool-Diameter/Length | Ø2.9″ / Ø9.8″(Without Adjacent Tool)/ Length 15.7″ | |
| Maximum Load | 11,023 lbs | |
| Height From Ground | 37″ | |
| XYZW Axis Travel | 47.25″ x 62.21″ x 58.66″ | |
| Distance Between Spindle Center to Working Table | 0-55″ | |
| Distance Between Spindle Nose to Table Center | 3.5″~74.4″ (-0.39″~74.4″) | |
| X, Y, & Z Rapid Speed | 393.7 ipm | |
| Spindle Motor | 20 HP (Opt. 25) | |
| Axis X / Y / Z / W / B Motor | 9.4 / 9.4 / 9.4 / 5.4 / 9.4 HP | |
| Spindle Taper | 7/24 taper ISO.50, BT-50 | |
| Spindle Cycle Lubrication Motor | 0.2 HP | |
| No. of Tools | 40 (Opt. 60) | |
| Tool Change Time | 15 seconds |
62″ x 55″ New Kent USA Horizontal Boring Mill Model KBM-11022 Standard Features:
- 7” x 59” hardened and ground table top, #50 taper spindle
- Precision ball screws in X, Y, Z, & W axes
- X, Y, Z, & W axes driven by AC motor
- Compact operation panel
- Meehanite® casting, with built in coolant reservoir in machine base
- Coolant system
- Centralized automatic lubrication
62″ x 55″ New Kent USA Horizontal Boring Mill Model KBM-11022 Standard Accessories:
- Linear scale on XYZ axes
- Spindle oil cooler
- Automatic power off
- Hydraulic unit
- Coolant system
- Lubrication system
- Alarm lamp
- Work lamp
- MPG
- RS232C interface
- Heat exchanger
- Chip conveyor and cart
- Leveling bolts & pads
- Controller manuals and circuit diagram
- Operation manuals
- Machine inspection lists
- Splash guards (around work table)
- Tool box
- Fanuc 0i-MD with standard function
62″ x 55″ New Kent USA Horizontal Boring Mill Model KBM-11022 Optional Accessories:
- ATC: 60 Tools
- Oil mist device
- Various auxiliary work tables
- Air conditioner at the electrical cabinet
- Extension sleeve 250mm/300mm
- Coolant through spindle
- Manual 90 angular milling head
- Simultaneously controlled rotary table
