Description

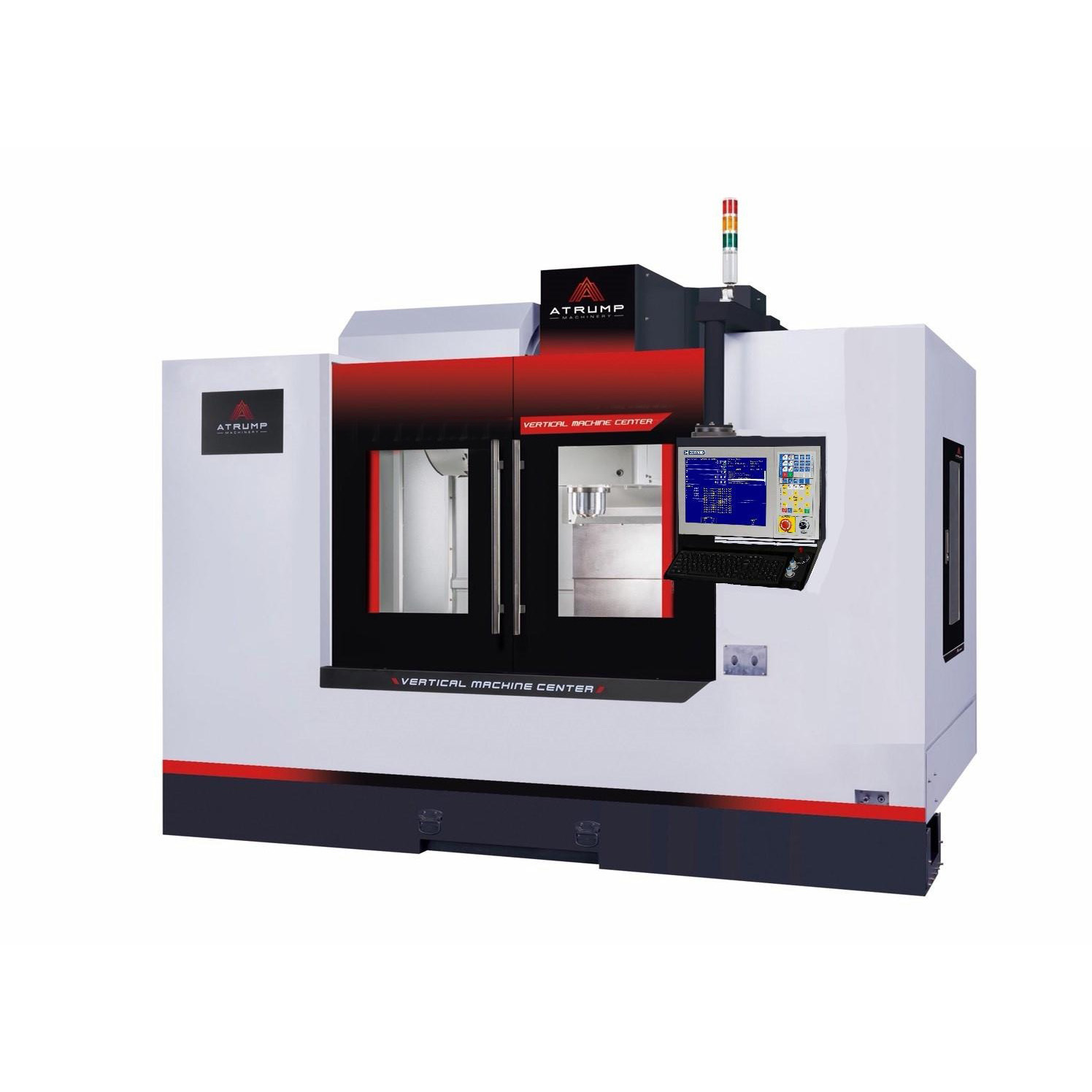

63″ x 31.4″ x 27.5″ New Atrump Machining Center Model AM63 Specifications:
| Table | 63″ x 29.5″ |
| X travel | 63” |
| Y travel | 31.4” |
| Z travel | 27.5” |
| Spindle nose to tabletop | 5.9” to 33.4” |
| Spindle center to column | 35.8″ |
| Table load capacity | 3.300 lbs |
| T-slot (5) | 0.86″ x 5.9″ |
| Spindle taper | CAT40 |
| Spindle speed | 10,000 rpm |
| Spindle drive type | Belt |
| Rapid feed rate X/Y/Z | 590/590/472 ipm |
| Cutting feed rate | 1 to 393 ipm |
| Spindle motor/Max power | 25 HP |
| Servo motors on XYZ | 4 kW / 4 kW / 4 kW |
| Coolant pump | 2 HP |
| Tool magazine capacity | Arm 24 tools |
| Max tool diameter | Ø 3.1″ |
| Adj. pocket empty | Ø 3.54″ |
| Max tool length | 11.8″ |
| Max tool weight | 15.4 lbs. Total 176 lbs. |
| Lubrication pump | Auto lubrication |
| Floor space | 159″ x 137.7″ x 131.8″ |
| Net weight | 31,240 lbs |
| Power requirement | 40 KVA 3 Phase 208V to 230V |
| Air requirement | 70-100 psi |
| Oil way recommended | Mobil Vectra #2 |
| Optional chiller oil | Shell Tellus 32 |
| Coolant capacity | 90.8 gallons |
63″ x 31.5″ x 27.5″ New Atrump Machining Center Model AM63 Features:
- Centroid’s Easy Conversational Programing OAK PRO License
- Huge 15” Color Touch Screen
- RS232 and 2USB ports for easy data X-fer.
- Rigid Box way design on X/Y/Z axis.
- C3 Class Ball Screw is pre-loaded to reduce the effects of heat deformation.
- 25HP Spindle Motor & 8,000rpm Spindle Speed.
- 100% Laser tested and calibrated positioning accuracy and repeatability.
- High speed Delta AC motors and Drivers and Spindle inverter.
Standard Accessories:
- Auto lube system
- Full enclosure
- 15″ color LCD
- Screw type chip auger
- USB 2.0 port
- 100 step MPG
- Tools & tool box
- Air Gun and Water Gun
- Coolant system
- Flood wash system
- 60 GB solid state hard drive
- Spindle chiller
- RS-232 interface
- 2 x LED work light
- Parts manual machine
- Shop floor programming/Conversational
- 24 tools arm type ATC
- Splash guard
- Telescoping way cover
- Leveling bolts & plate
- Electronic Operation Manual Centroid
- Air blow for spindle protection
63″ x 31.5″ x 27.5″ New Atrump Machining Center Model AM63 Optional Accessories:
| 8928 Upgrade to Wireless MPG | $330 |
| AM63-CC Upgrade to Chain type Chip Conveyor (AM63) | $6,880 |
| AM63-30HP Upgrade spindle motor to 30HP | $2,980 |
| AM63-OS Oil Skimmer | $1,180 |
| AM63-EC Electric Cabinet conditioner | $4,500 |
| M16-OS Oil Skimmer | $1,045 |
| M16-EC Electric cabinet conditioner | $2,350 |
| AL-IDS Interlock door switch | $480 |
| CP-MIST Mist Coolant System | $950 |
| C40RK-45 Retention Knob CAT40, 45degree (24pcs) | $360 |
| CK-105 52pcs Clamping Kit | $330 |
| CAT40- TOOL16 CAT40 EM Tool Holder + Keyless Chuck + Retention knob (*16 pcs.) EM 1/8, 1/4, 3/8, 1/2, 5/8, 3/4, 1″+C40RK-45(x8) +INT-13-CAT40 (x1) |
$920 |
| HAV-6 6″ Angle Vise W/ Swivel Base (Made in Taiwan) | $610 |
| C40RK-45 Retention Knob CAT40, 45degree x 24 piece | $360 |
| 10249 Printed Manual Centroid control | $88 |
| 10630 Unlimited part program size | Included |
| 10730 Intercon off-line conversational program (for your desktop PC) | $99 |
| 10850 Coordinate system rotation (CSR) | Included |
| 10625 Scaling and mirroring [G50 & G51] | Included |
| 10740 Engraving software | $500 |
| 15010 Upgrade to CNC Unlimited License instead of PRO license | $450 |
| 14944 KP-3 probing | $899 |
| 15134 TT-4; Tool touch off kit | $860 |
| MNC-130R CNC rotary table w/-Delta motor and driver 1KW. (Table size: 5.1”) | $8,800 |
| DTS-130 Manual tailstock for MNC-130R | $790 |
| SK6 + AP1 3-Jaw manual scroll chuck w/-backplate | $1,130 |
| MNC-130RP MNC130R 4th axis Rotary Table Package -MNC-130R+DTS-130+SK6+AP1 | $10,280 |
| MNC-172R CNC rotary table w/-Delta motor and driver 1KW. (Table size: 6.69”) | $9,450 |
| DTS-171 Manual tailstock for MNC-171R | $990 |
| SK6 + AP1 3-Jaw manual scroll chuck w/-backplate | $1,270 |
| MNC-172RP MNC170R 4th axis Rotary Table Package -MNC-172R+DTS-171+SK6+AP1 | $11,250 |
| MNC-200R CNC rotary table w/-Delta motor and driver 1KW. (Table size: 7.87”) | $10,100 |
| SK7 + AP1 3-Jaw manual scroll chuck w/-backplate | $1,420 |
| MNC-200RP MNC200R 4th axis Rotary Table Package -MNC-200R+DTS-200+SK7+AP1 | $12,000 |
| MNC-251R CNC rotary table w/-Delta motor and driver 1KW. (Table size: 9.84”) | $11,500 |
| DTS-251 Manual tailstock for MNC-251R | $1,200 |
| SK8 + AP2 3-Jaw manual scroll chuck w/-backplate | $1,580 |
| MNC-251RP MNC251R 4th axis Rotary Table Package -MNC-251R+DTS-251+SK8+AP1 | $13,330 |
