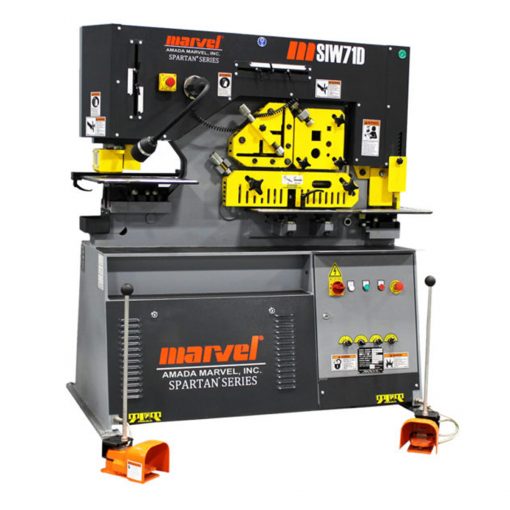

71 Ton New Marvel Spartan Ironworker Model MSIW71D

71 Ton New Marvel Spartan Ironworker MSIW71D specifications, features and options. Call 614-255-9000 with any questions.

Terms:  Check with Order

SKU: 18770 Categories: ,

Description

71 Ton New Marvel Spartan Ironworker Model MSIW71D Specifications:

Work Stations
5
Punching

Punching Pressure
71 tons
Standard Tooling
1-1/2″ x 9/16″
Large Tooling
2″ x 7/16″
Oversize Tooling
4-5/16″ x 3/16″
Throat Depth
12″
Stroke Length
2-5/32″
Cycle/Min. (3/4″)
25
Work Height
40-9/16″
Flat Bar Shearing

Capacity
14″ x 5/8″
Width & Thickness
12″ x 3/4″
Blade Length
15″
Angle Flange Trim
4″ x 3/8″
Work Height
35-1/2″
Angle Shear

90°
4″ x 4″ x 3/8″
45°
2-1/2″ x 2-1/2″ x 3/8″
Work Height
44-7/8″
Bar Shearing

Round Bar
1-3/4″
Square Bar
1-3/4″ x 1-3/4″
Channel Shear
5″
H Beams
5″
T Beams
3-1/2″ x 7/16″
Work Height
44-7/8″
Notching

Rectangular Notcher
1-3/4″ x 3-9/16″ x 3/8″
Large V
4″ x 4″ x 3/8″
Work Height
35-1/2″
Special Tooling

Single V Bending Attachment
10″ with 3″ wide V
Multi V Bending Attachment
19-1/2″ with 1/2″, 3/4″, 1″, 1-1/4″ wide V



71 Ton New Marvel Spartan Ironworker Model MSIW71D Standard Work Stations:

  • Punching Station: The punch cylinder is machined and faced to assure proper alignment of the cylinder shaft. Cylinder stroke length is adjustable both top and bottom with two easily set limit switches. The see-through stripper provides a full view of the punch for ease of alignment and operation. The stripper is also adjustable for varying thickness of material. The various machines punch from 1/8″ to 2″ in diameter. Punching from 2-1/16″ to 4″ is achievable with usage of the oversize attachment feature. Punches and dies are easily interchangeable. Both round and shaped tools can be used in the machine.
  • Die Holder: The die holder will accept standard tooling and has two hole sizes (D and DX series only). The die holder slides in and out on two T-slots for ease of alignment and makes tooling changeover quick and trouble-free. The overhanging feature of the die holder allows for punching channel leg.
  • Punch Table: The punch table provides support for the workpiece and also incorporates a worktable scale and an adjustable back stop for gauging. The punch work table is segmented and the front portion can be removed for punching angle iron and channel legs.
  • Bar Shearing Station: The round and square bar station allows for shearing various sizes. T-bar and channel shear blades are also available for this station. With the bar shearing feature, rounds and squares can be cut from 1/8″ to 2-1/8″ (Larger sized holes are available on larger machines only). By changing the blades you can also cut T-bars, H-beams, and channel iron.
  • Angle Shear Station: The angle shear allows for both straight and miter cuts of varying sizes of angle material without a drop-out slug. The adjustable holdown keeps distortion to a minimum. The angle shearing feature allows the option to cut angle iron at 90 degrees, and smaller angle iron at 45 degrees. This feature can be done with both the top and bottom leg.
  • Flat Bar Shear Station: The flat bar shear station has a cast iron support table with guides for accurate positioning and has scribe marks at 90 and 45 degrees for miter cuts. With an adjustable holddown and a upper blade, that has a anti distortion feature, deformation is held to a minimum. The lower blade has four useable sides. A special feature of the flat bar shear is its variable degree miter-cutting on the bottom leg of the angle iron.
  • Notching Station: The notcher is ideal for notching on either flat bars or angles. The gauging table has adjustable stops for precise positioning and the safety guard is electrically interlocked for maximum safety and visibility. Notching needs are met with a rectangular notching tool, standard on each machine. Marvel can provide a V-Notching tool for a variety of desired applications.



71 Ton New Marvel Spartan Ironworker Model MSIW71D Standard Features:

  • Five (5) Sets of Punches & Dies
    • Punches: 9/16″, 11/16″, 13/16″, 15/16″, 1-1/16″
    • Dies: 19/32″, 23/32″, 27/32″, 31/32″, 1-3/32″
  • LED Lighting at all Work Stations
  • Adjustable Electric Back Gauge (36″)
  • Scrap Boxes at Punching & Notching Stations
  • Adjustable Stroke Depth at Punch
  • Two (2) Full-Control Foot Pedals
  • Two (2) Hold Die Holders
  • Two (2) Piece Gauging Table at Punch Station
  • Keyed Punch Holder for Shaped Tooling
  • CPD Series: 26 punch, 62 die
  • 24 Volt DC Control Voltage
  • Standard Voltage: 230 Volt, 3 Phase, 60Hz (Optional-460 Volt)



71 Ton New Marvel Spartan Ironworker Model MSIW71D Optional Accessories:

V-Notcher at Notcher Station
Bending Single V
Bending Multi V
Electric Back Gauge 6 ft (in place of standard 3 ft.)
Channel Web Die Holders
Oversize Punching Kit
Channel Shear 3″ x 4.1″ lb. per foot
Channel Shear 4″ x 5.4″ lb. per foot
