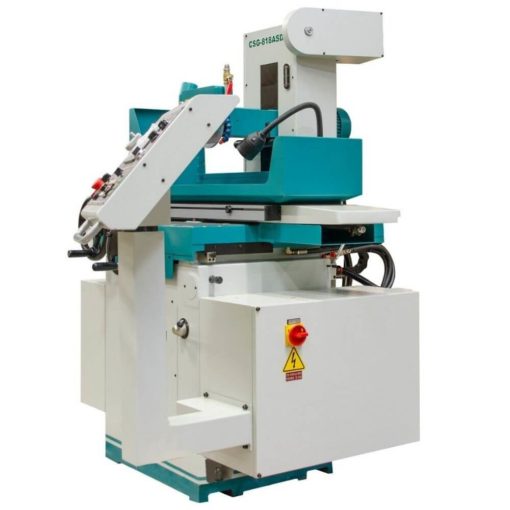

8″ x 18″ New Clausing Surface Grinder Model CSG818ASDIII

Price On Request
F.O.B. Factory
Terms:  Check with Order

Options

SKU: 32410 Category:

Description

8″ x 18″ New Clausing Surface Grinder Model CSG818ASDIII Specifications:

Model
Table size 8″ x 18″
Max. grinding length (longitudinal) 19″
Max. grinding width (crosswise) 9″
Max. distance from table surface to spindle centerline 18″
Standard magnetic chuck size 8″ x 18″
Longitudinal movement of table
Max. travel (hydraulic) 19″
Max. travel (manual) 20″
Table speed infinitely variable 0.196″-0.984″ min.
Crossfeed transverse travel
Auto transverse increment 0.04″-0.4″
Auto constant feeding speed 0.79″-12.6″ min
Max. auto transverse travel 9.25″
Max. manual transverse travel 9.84″
Handwheel per revolution 0.2″
Handwheel per graduation 0.0008″
Wheelhead vertical downfeed
Automatic infeed 0.00005″-0.0025″
Step feed (JOG) 0.00004″
Rapid travel, approx. 10″/min
Slow travel, approx. 0.236″/min
*Min. display value: 0.00004″
Grinding spindle drive
Speed 3450 rpm
Power rating 2 Hp
Standard grinding wheel
Diameter 8″
Width 0.5′ max 0.75″
Bore 1.25″
Power rating
Hydraulic motor 1 Hp
Crossfeed motor 350W
Elevating motor 40W
Measurements & weights
Floor space (total space required) (L x W x H) 71″ x 50.6″ x 66″
Weights, approx. Net 2,657 lbs.
Gross 3,031 lbs.
Rated power, approx. 3 Hp
Packing dimensions (L x W x H) 75″ x 56″ x 76″

*ASDIII models have no elevating hand wheel but jog buttons per revolution or graduation. Machine design, control and specifications are subject to change without notice.

8″ x 18″ New Clausing Surface Grinder Model CSG818ASDIII Features:

  • On ASDIII models, you can set the vertical zero point, finish grinding volume, target point and the grinding wheel rise-up point.
  • The machine features a simple and clear digital display & touch control panel for easy learning and operation.
  • Vertical feed powered by dual motors, AC motor for rapid up/down and stepping motor for micro downfeed positioning, slow auto downfeed and slow up/down.
  • Vertical positioning is displayed on the screen showing present spindle and setting the start point, rough grinding volume, finish grinding volume, downfeed volume for finish grinding, target point, rise up point, intermittent spark-out.
  • Cross transverse travel powered by DC servo motor, allows step feed and continuous infeed grinding.
  • The speed of wheel dressing can be adjusted on the control panel.
  • High quality, ribbed, cast iron table, saddle and base
  • All slideways and screws are fully oiled by an automatic continuous lubrication system to minimize wear on slideways and screws.
  • High Grade Anti-Wear Slideways…The saddle rides on precision, hand-scraped double V ways, and the table rides on precision hand-scraped V and flat ways coated with “TURCITE-B”.
  • Precision spindle cartridge, supported by preloaded precision angular contact ball bearings and one NN type roller bearing.
  • Ballscrew for cross travel, powered by DC servo motor

ASDIII Control Features:

  • Frequency inverter (Optional)
  • 10″ touch color screen
  • Chuck control w/ De-Mag
  • Grinder condition input
  • Alarm message
  • System data
  • Starting picture
  • Machine I/O monitoring
  • Grinding size input

8″ x 18″ New Clausing Surface Grinder Model CSG818ASDIII Standard Accessories:

  • Tool box with tools
  • Wheel extraction screw and nut
  • Balancing arbor
  • Leveling screws with blocks
  • Grinding wheel
  • Work light
  • Wheel flange
  • Touch-up paint
  • Auto lubrication system
  • Diamond dresser
  • Manual pulse generator
  • Chuck controller w/ De-Mag
  • Standard voltage 230 or 460 3 phase (208 requires a transformer or special order)

8″ x 18″ New Clausing Surface Grinder Model CSG818ASDIII Optional Accessories:

Chuck Options
C0105 8” x 18” Permanent Magnetic Chuck $1,510.00
C0105F 8” x 18” Permanent Magnetic Fine Pole Chuck $3,100.00
C0107 8” x 18” Electromagnetic Chuck $1,555.00
C0107F 8” x 18” Fine Pole Electro Chuck $2,420.00
Coolant Options
C0201 10.5gal 6.6gal/min Coolant & Dust Unit $1,770.00
C0201A 10.5gal 6.6gal/min Coolant & Dust Unit w/ Mag. $2,880.00
C0202 10.5gal 6.6gal/min Coolant System $665.00
C0203 Dust Collector $1,145.00
C0204 31.7gal 6.6gal/min Coolant w/Man. Paper Feed $1,435.00
C0205 40.9gal 6.6gal/min Coolant w/Auto Paper Feed $2,500.00
C0206 40.9gal 6.6gal/min Coolant w/Auto Paper Feed & Mag. Sep. $3,540.00
C0207 18.5gal 6.6gal/min Coolant w/Mag. Sep. $1,915.00
Balancing Options
C0301 Extra Balancing Stand $150.00
C0301R Roller Balancing Stand $510.00
C0301A Arbor for Balancing Stand $45.00
C0310 Dynamic Wheel Balancer w/Special Wheel Flange $6,570.00
C0601 Spare Wheel Flange $85.00
Wheel Options
C0701 Manual Over the Wheel Dresser $655.00
C0750 Concave-Convex Forming Dresser 8” Wheel $640.00
C0801 Extra Dia. Dresser w/Diamond (table mount) $80.00
C1100 Extra 8” x 0.5” x 1.25” Grinding Wheel $100.00
C0502A Full Enclosed Guard w/Top Cover (factory installed only) $5,975.00
C0500 Door Interlock for Full Enclosed Guarding $660.00
C1603 Swivel Guard $750.00
C1604 Extra Dust Collector Guard $115.00
Feed Options
C1601B Mobil Manual Pulse Gen. w/Stepping Motor Control (factory order) $1,600.00
Spindle Options
C4001 Inverter Control 0-3450 rpm 2HP 230v (factory installed) $1,530.00
C4001A Inverter Control 0-3450 rpm 2HP 460v (factory installed) $1,530.00
GR-3HP 3Hp Spindle Motor in Lieu of 2Hp (factory order) $515.00
C4002 Inverter Control 0-3450 rpm 2Hp 230v (factory installed) $1,755.00
C4002A Inverter Control 0-3450 rpm 2Hp 460v (factory installed) $1,755.00
