Description

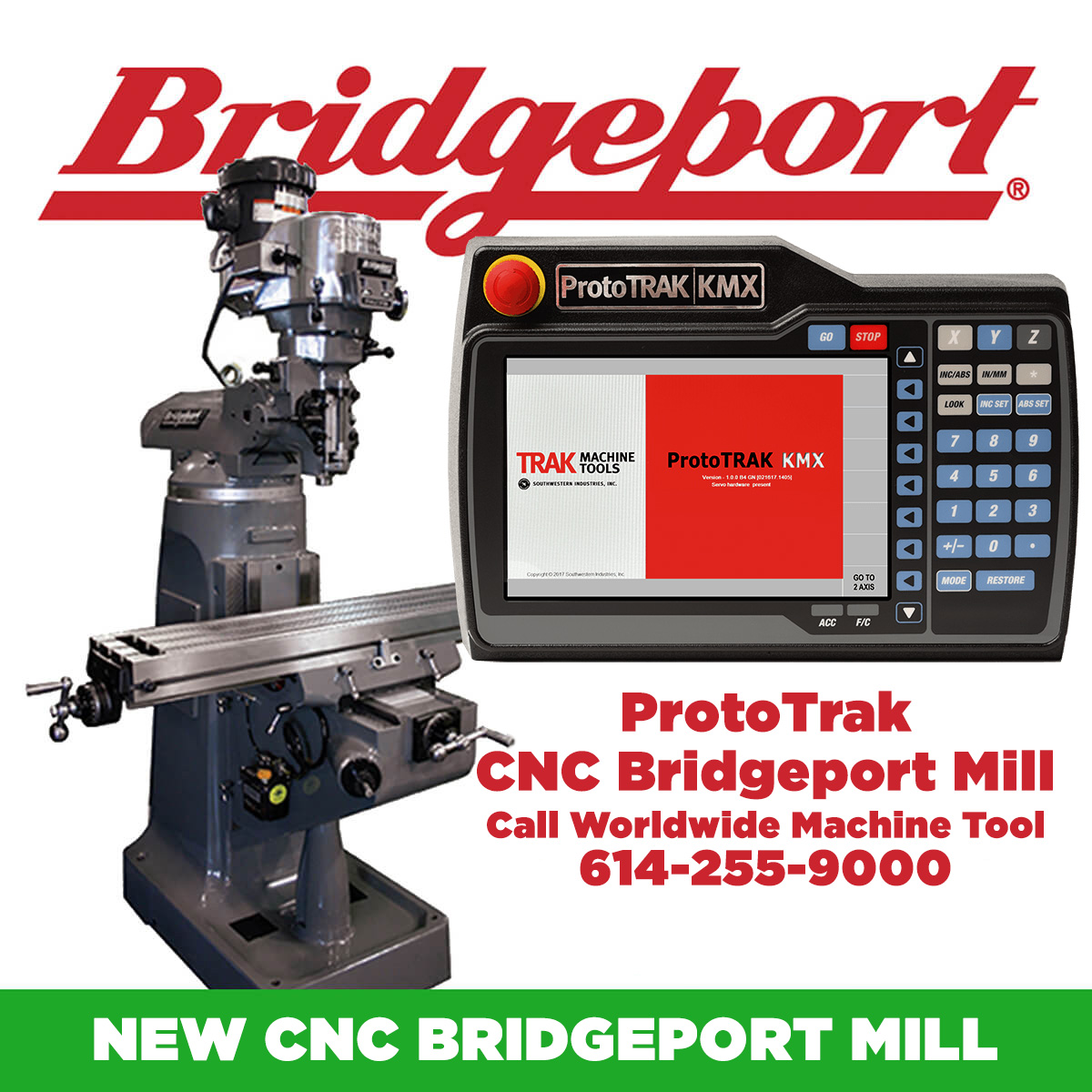

9″ x 49″ New Bridgeport CNC Vertical Milling Machine with ProtoTrak KMX 2 Axis
Announcing the new Bridgeport CNC Vertical Milling Machine with ProtoTrak KMX – 2 Axis CNC Control for sale only at Worldwide Machine Tool. This machine is available through ordering with Worldwide Machine Tool. Call for pricing and delivery times 614-255-9000
9″ x 49″ New Bridgeport CNC Vertical Milling Machine with ProtoTrak KMX 2 Axis Specifications.
|
Table & Ways |
Table Size |
9” x 49” |
|
Table Height Above Floor (max) |
47.25” |
|
|
Table Load |
750lbs. |
|
|
No. of T-slots |
3 |
|
|
T-slot Width |
5/8” |
|
|
T-slot Center Distance |
2.5” |
|
|
Table Ways |
Dovetail |
|
|
Knee Ways |
Dovetail |
|
|
Column Ways |
Dovetail |
|
|
Travels |
X Longitudinal Table (w/o pwr feed) |
36” |
|
X Longitudinal Table (w/pwr feed) |
33” |
|
|
Y Cross |
12” |
|
|
Knee |
16” |
|
|
Ram |
12” |
|
|
Throat Distance (min) |
6.75” |
|
|
Throat Distance (max) |
18.75” |
|
|
Table to Nose Gauge Line (min/max) |
2.5” / 18.25” |
|
|
Motors & Spindle |
Spindle Motor (duty cycle/continuous) |
3 Hp / 2Hp |
|
Amp. Draw 208v. |
7 |
|
|
Amp. Draw 230v. |
7 |
|
|
Amp. Draw 460v. |
5 |
|
|
Speed Range High Range |
500-4200 RPM |
|
|
Speed Range Low Range |
60-500 RPM |
|
|
Main Spindle Taper |
R8 |
|
|
Spindle Travel |
5” |
|
|
Quill Feed (in/rev.) 2 Axis System |
.0015/.003/.006 |
|
|
Quill Feed 3 Axis System |
0-100 ipm |
|
|
Quill Diameter |
3.375” |
|
|
Capacities |
Power Quill Feed |
3/8” |
|
Milling Capacity (mild steel) |
2 CI/in |
|
|
Boring Range (mild steel) |
6” dia |
|
|
Spindle Diameter |
1.875” |
|
|
Feed Rate Range (X,Y) |
0-100 ipm |
|
|
Minimum Increment |
0.0001” |
|
|
Construction & Weight |
Floor Area |
7 x 10 ft |
|
Height |
87” |
|
|
Net Weight |
1930 lbs |
|
|
Shipping Weight |
2075 lbs |
|
|
Input Power |
208/230/240 Volt |
|
|
|
3 Phase, 50/60 hz |
|
|
|
4KVA |
|
|
|
|
9″ x 49″ New Bridgeport CNC Vertical Milling Machine with ProtoTrak KMX 2 Axis
- Easy to learn and use
- Improved Auto Geometry Engine®
- Outstanding graphics
- Powerful offline programming for using our Advanced Software Options
- Can handle quick manual jobs to complex profiling
Powerful Canned Cycles
-
-
Position
- Drill
- Bolt Hole
- Mill
- Arc
- Face Mill
- Circle Pocket
- Rectangular Pocket
- Irregular Pocket
- Circular Pocket
- Rectangular Profile
- Irregular Profile
- Subroutine Repeat
- Subroutine Rotate
- Subroutine Mirror
- Copy Repeat
- Copy Rotate
- Copy Mirror

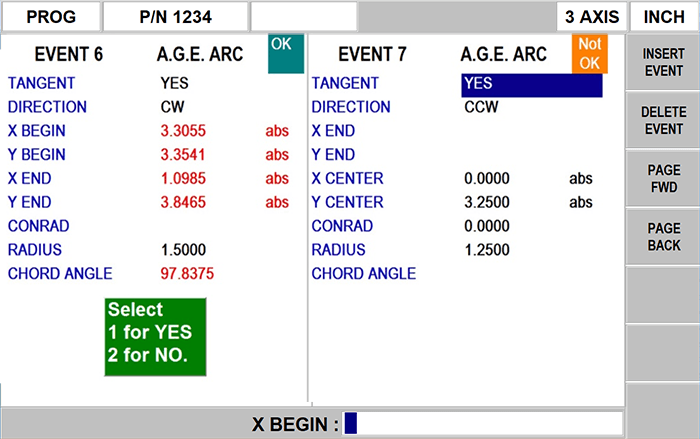

Auto Geometry Engine®
Program complex profiles easily with the powerful A.G.E. feature. Enter the information you have and the A.G.E. will calculate missing points for you while you program.

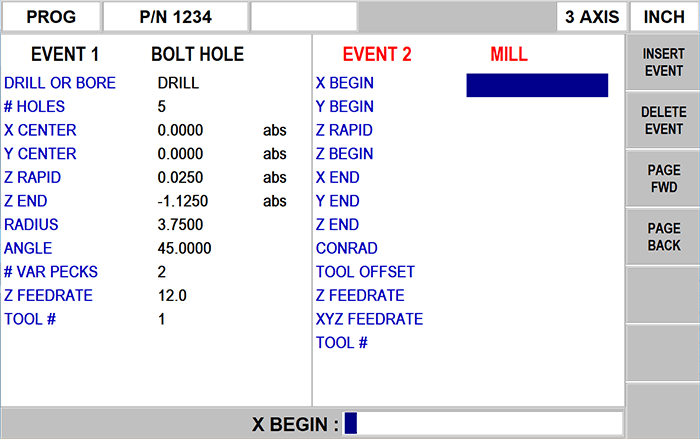

Programming the ProtoTrak CNC control

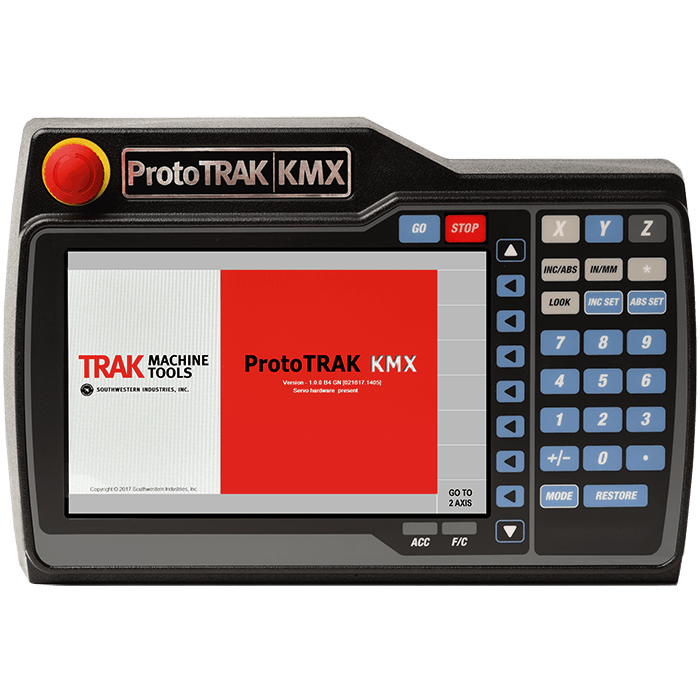

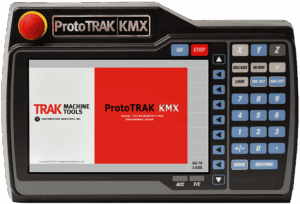

ProtoTRAK KMX CNC Specifications
Note: (O) = optional
ProtoTRAK Upgrade Hardware
Note: For upgrades, use your current motors, servo amplifiers and ballscrews. There are some exceptions. See the details of your kit, or contact us for more information.
Control Hardware
- Digital servo amplifiers — custom-designed for ProtoTRAK operation
- D.C. servo motors rated at 280 in-oz. continuous torque, twice the required amount
- Precision ball screws in the table and saddle
- Modular design simplifies service and maximizes uptime
- 115V / 60Hz / 10 amps / 1 phase
- Feedrate override of programmed feedrate and rapid
- Polycarbonate sealed membrane keypad locks out contamination
- 9.0″ color LCD
- Windows® operating system
- USB port for interface with a storage device
- Rugged industrial PC
- RJ45 port and Ethernet card for networking
- Glass scale on quill for Z-axis readout
Control Software
- Clear, uncluttered screen display
- Prompted data inputs
- English language — no codes
- Soft keys change within context
- Selectable two- or three-axis CNC
- Inch/mm selectable
- Convenient modes of operation
- Diameter Cutter Compensation allows programming of the part rather than the tool centerline
- Circular interpolation makes arcs and any size hole easy to do with standard tools
- Linear interpolation for machining lines at any angle
- Conrad provides automatic corner radius programming with one data input
- Incremental and absolute can be mixed within an event
- Error messages identify programming mistakes
- Fault messages support system self-diagnostics
- Parts graphics display
- Look — view graphics during programming with a single button press
- Math Help — graphical, prompted assistance for finding points
- Machine Tool Error Compensation and Backlash Compensation custom set after installation
- Selectable inch/mm measurement readout
- Jog of X and Y from 1 to 100 inches per minute; DPMKX2 150 ipm on Z
- Selectable 2- or 3-axis operation
- AGE (Auto Geometry Engine)
DRO Mode Features
- Incremental and absolute dimensions
- Jog at rapid with override
- Powerfeed X, Y, or Z
- Teach-in of manual moves
- Servo return to 0 absolute
- Tool offsets from library
- Go To Dimensions (optional with TRAKing®) (O)
- Fine/coarse handwheel resolution (optional with TRAKing®) (O)
Program Mode Features
- Auto Geometry Engine
- Geometry-based programming
- Tool path programming
- Scaling of print data
- Programming of auxiliary functions (when present in original control)
- Three-axis geometry conversational programming
- Incremental and absolute dimensions
- Automatic diameter cutter compensation
- Circular interpolation
- Linear interpolation
- Look — graphics with a single button push
- Event editing within the program
- Conrad — automatic corner radius
- Math Help — with graphical interface
- Tool step-over adjustable for pocket routines
- Selectable ramp or plunge cutter entry
- Subroutine repeat of programmed events
- Nesting
- Subroutine rotate about Z-axis for skewing data
- Subroutine mirror of programmed events
- Copy repeat — for editing of repeated events
- Copy rotate — for editing of rotated events
- Copy mirror — for editing of mirrored events
- Run Island, Helix, Thread Mill, and Engrave events (when present in an imported ProtoTRAK program)
Programmed Canned Cycles
- Posn/Drill — single point
- Bolt Hole — series of points evenly spaced around a circle
- Mill — straight line in any direction
- Arc — any portion of a circle
- Pocket — rectangle, circle, or irregular shape with all material removed inside; includes finish cut
- Face Mill — removes material from the top of the workpiece; includes Z finish cut
- Profile — perimeter of a rectangle, circle, or irregular shape; includes finish cut
- Repeat, Rotation, Mirror of programmed events, with or without offset
Set Up Mode Features
- Service Codes
- Software
- Machine setup
- Advanced diagnostics and service logs
- Operator defaults and options
- Set Pocket and Face Mill step-over (in Service Codes)
- Tool library
- Tool names
- Tool length offset with modifiers
- Tool path graphics with adjustable views
- Verify — solid model representation of finished part (as programmed)
Run Mode Features
- TRAKing (O)
- 3D CAM file program run
- 3D G-code file run with tool compensation
- Real-time run graphics with tool icon
Program In/Out Mode Features
- Program storage to USB flash drive
- CAM program converter
- Converter for prior-generation ProtoTRAK programs
- DXF/DWG file converter (offline version only)
- Selection of file storage locations
- Preview graphics for unopened files
- Networking
- Save Temp — saves current program, tool offsets, and home positions for minimal setup the next day
Software Options
- Offline programming system
- DXF and Parasolid programming on Offline
KMX Offline Programming
- All features of the ProtoTRAK KMX organized to run on your PC
- Program and set up your jobs, then load into the ProtoTRAK KMX
- Windows® operating system (not compatible with Mac OS)
- Converter Package for Offline (requires purchase of KMX Offline Programming)
- Verify
- Solid model representation of machining the part including the tool path
The DXF File Converter
- Import and convert CAD data into ProtoTRAK programs
- DXF or DWG file support
- Chaining
- Automatic gap closing
- Layer control
- Easy, prompted process you can do right at the machine
The Parasolid File Converter
- Generate ProtoTRAK KMX programs from the data in the solid file
- .x_t 3D CAD format support
- No specialized knowledge required
TRAKing®/Electronic Handwheels Option
- Electronic handwheels on X and Y (replaces mechanical handwheels)
- TRAKing of programs during program run
- Go To Dimensions
- Selectable fine/coarse handwheel resolution
9″ x 49″ New Bridgeport CNC Vertical Milling Machine optional accessories.
| BPS8408 Air Power Draw Bar R8 (US MFG) | $1,485.00 |
| BPS001 Coolant Chip Pan | $570.00 |
| BPS-ENCOL Enclosed Base Coolant System w/On-Off Switch | $700.00 |
| BPS040 4” Column Riser Block Series 1 | $640.00 |
| BPS041 6” Column Riser Block Series 1 | $690.00 |
| BPS042 8” Column Riser Block Series 1 | $750.00 |
| BPSK140 Knee Servo Feed (USA MFG) | $1,955.00 |
| 2VS020-1 R8 Milling Chuck Kit w/11 ER Collets | $690.00 |
| Z384-SET-1 R8 Metric Set 2mm by 1mm, 19 Collets | $1,030.00 |
| Z384-SET-6 R8 Inch Collet Set 1/8 to 7/8 by 1/16ths, 13 Collets | $275.00 |
| Z384-SET-7 R8 Inch Collet Set 1/8 to ¾ by 1/8ths, 6 Collets | $150.00 |
| FV-9031G R8 to J2 Arbor for FV-9030G | $170.00 |
| FV-9033G R8 to J6 Arbor for FV-9032G | $170.00 |
| FV-9041G 12pc. R8 Collet Rack | $60.00 |
| FV9050G ½” R8 Shell Mill Holder | $100.00 |
| FV-9051G ¾” R8 Shell Mill Holder | $150.00 |
| FV-9052G 1” R8 Shell Mill Holder | $100.00 |
| FV-9080G R8 End Mill Adapter Set 3/16-1 ¼ (8 pcs.) | $320.00 |
| 2VS002A Central 110v Wiring Point w/6 Plugs & 8’ Power Cord | $265.00 |
| 2VS010 52 Piece Clamping Kit | $195.00 |
| FV-9010G Kurt 6” Vise Only | $1,025.00 |
| FV-9011G Kurt 6” Swivel Base for FV-9010G | $730.00 |
| FV-9012G Vise Step Key Kit 11/16 x 5/8 (set of 2) | $95.00 |
| FV-9030G ½” Keyless Drill Chuck | $230.00 |
| FV-9032G 1/8” to 5/8” Keyless Drill Chuck | $240.00 |
| FV-9070L LED Work Light w/3Pin 110V Plug | $215.00 |
| CS-9062 Coolant Mist System 1 Gal | $1,020.00 |
Note: Pricing is subject to change based on manufacturer. Request a quote for current pricing and availability. Clausing warrantees the machine and control for a period of one year from the date of installation. This warranty does not cover normal wear items such as filters and belts or damage that results from the misuse or abuse of this equipment.
Download the Bridgeport milling machine installation, operation and parts manual.
The operation installation and parts manual includes the safety requirements and setup for a new Bridgeport milling machine. The parts diagrams and instructions help you setup and maintain a new Bridgeport mill. Call Worldwide Machine Tool at 614-255-9000 for help.
Click to download a Bridgeport Mill Parts and Maintenance Manual
Click and Download the Bridgeport Mill lifting instructions.
Click and Download the Bridgeport Mill Safety and Data Sheet.
Click and Download the Bridgeport Mill Older Parts Sheet.
Bridgeport Dimensions and Shop Floor Foot Print. 5′ Front to back , 87″ Tall, 68″ Tall with head tilted Down.
