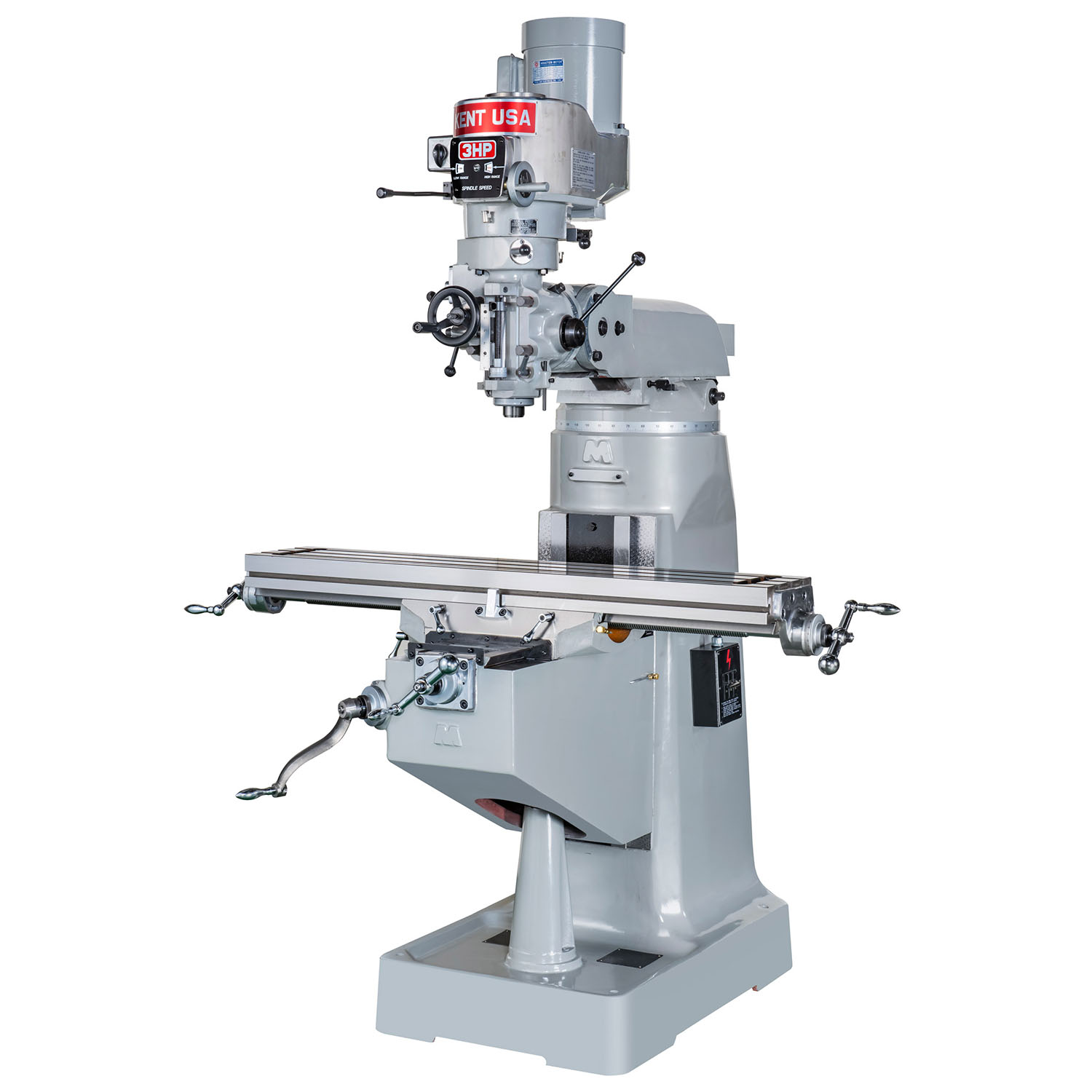

Name: 9" x 49" New Kent USA Vertical Knee Mill Model KTM-3VS
SKU: 39513
Availability: InStock

Description

Kent USA Manual Knee Mills are affordable, versatile, and easy to operate. Our manual knee mills are ideal for prototype, tool room and R&D work, as well as part of training programs and everyday machining. You will be able to perform practically any milling operation on a knee mill. This includes angels cuts and drilling and the cutting and drilling of long workpieces. They are also great for fixtures, rework, and one-of-a-kind components. Our KTM-3VKF, KTM-3VSF, KTM-4VKF-E, KTM-5VKF-E and KTM-5AVKF models have spindle motors with AC-Frequency drive. Today, we lead the field with the highest performance AC-Frequency drive head on the market with 0-4500 rpm in under 3 seconds. We use the latest generation of flux-vector inverter drives made in the USA — for performance that is second to none. An optional high-speed head with 6000 rpm spindle is also available. Factory install CNC knee mills are also available for high precision and higher volume production.

9″ x 49″ New Kent Vertical Knee Mill Model KTM-3VS Specifications:

Table size (WxLxH)	9″ x 49″ (Opt. 9″ x 42″)
Table Travel (X Axis)	35″
Saddle Travel (Y Axis)	12″
Knee Trave (Z Axis)	15″
Quill Travel	5″
Ram Travel	14.5″
Spindle Motor	3 HP
Spindle Speed	60-500-4200 RPM (standard variable speed model)
Spindle Taper	R-8 (NMTB-30 or Quick change spindle optional)
Quill Diameter	3.375″
Quill Feed Rate	0.0015″ / 0.003″ / 0.005″ in/rev
Drilling Capacity (Manual/Power)	0.75″ / 0.37″ diameter
Boring Capacity	6″ diameter
Milling Capacity	2.0 in³/min
Maximum Work Load (Center)	850 lbs
Spindle Center to Column	5″ – 19.5″
Net Weight	2500 lbs
Gross Weight	2800 lbs
Shipping Dimensions	72″ x 72″ (skid)
Power Requirements	220 volts, 3 phase, 60 Hz, 10 Amp (optional 440v, requires 5 Amp)

9″ x 49″ New Kent Vertical Knee Mill Model KTM-3VS Standard Features:

3 HP spindle motor, 16 speeds step pulley milling head
9″ x 42″ hardened and ground table
Table, saddle, and knee with hardened and ground dovetail ways
Precision ground leadscrews with backlash compensating double nut
Precision bored and ground milling head, with super precision ABEC-7 bearings
Meehanite® casting, with built in coolant reservoir in machine base
Centralized one-shot lubrication, with meters check-valves

9″ x 49″ New Kent Vertical Knee Mill Model KTM-3VS Optional Accessories:

Digital Readout System (View Brochure)
Table (X Axis) Power Feed
Saddle (Y Axis) Power Feed
Knee (Z Axis) Power Feed
Air Power Drawbar
Flood Coolant System
Chip Tray
Right Angle Milling Attachment w/Arbor Support
Rustlick Coolant (1 Gal, Mixes 1:30)
Riser Blocks (4″/6″/ 8″)
Angle-lock Vises (6″/8″)
Rotary Table
Clamping Kit (52 pc)
R-8 Collet Set
Single Phase Motor Option
NMTB-30 Spindle
