Description
Kent USA Sinker EDMs have 3D capabilities and are ideal for mold making, micro hole drilling, creating shapes in fully-hardened metal components, and machining washers, keyways, scientific research apparatuses and more. They are used for creating more complex geometries with a high degree of accuracy. Because there is no direct contact between the electrode and the material, our Sinker EDMs can burn through any electrically conductive material without inducing stress into or deforming the workpiece. Kent USA Sinker Type EDMs offer tank sizes from 33.4″ x 20.9″ x 13.4″ to 66.9″ x 39.4″ x 21.7″, power of 30A to 90A, and up to 4400 lbs of max load. All Kent USA Sinker EDMs are backed by our 15-month warranty.

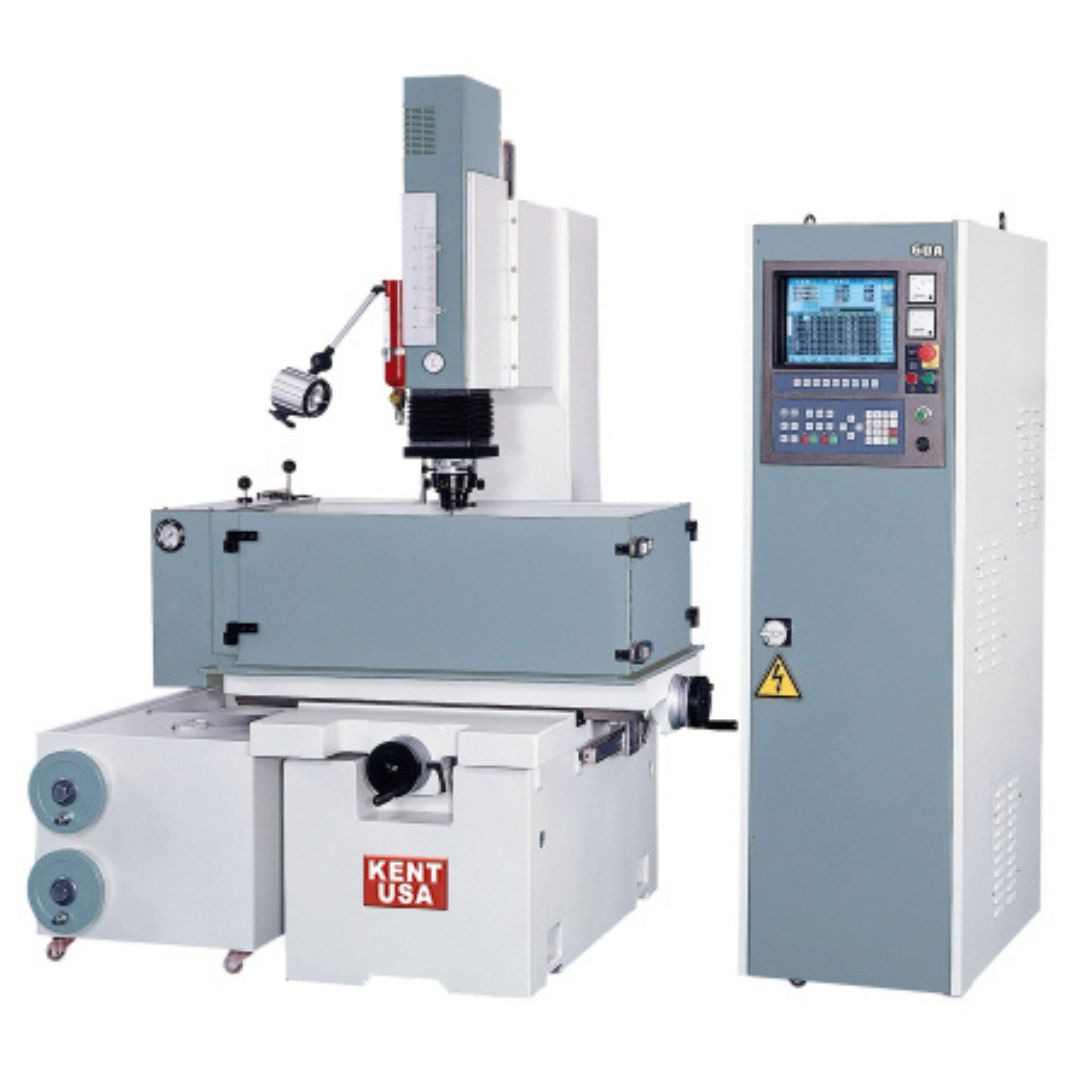

90 AMP New Kent USA Sinker Type EDM Model KEB-707B Specifications:
| Work Tank | 46.1″ x 27.6″ x 16.9″ | |
| Work Table | 31.5″ x 19.7″ | |
| Travel (X / Y / Z / W) | 19.7″ x / 15.8″ / 7.9″ / 11.8″ | |
| Distance Between Plate to Table | 9.5″ ~ 29.1″ | |
| Max Electrode | 331 lbs | |
| Max Work Load | 3307 lbs | |
| Max Output Current | 90 Amp | |
| Max Stock Removal | 200 mm/min | |
| Best Surface Finish | Ra 0.2 mmRa | |
| Best Electrode Wear | < 0.15% | |
| Dielectric Tank | 330 L (87 Gal.) | |
| Net Weight | 4409 lbs |
90 AMP New Kent USA Sinker Type EDM Model KEB-707B Standard Features:
- 90 Amp power supply capacity
- Fully ribbed solid castings for maximum rigidity and stability
- Built-in 3-axis DRO system integrates with machine control for positioning and auto z-depth setting in for simple programming
- Maximum 500 programmable steps for setting all machining parameters enables complete start to finish auto cycle for even the most complex jobs
- MOSFET electric discharge circuit design is ideal for fast burning, reduced electrode wear, and uniform surface finish applications
- Precision linear ways with oil immersed ball screw and DC Servo motor on Z-axis
- Power rapid Ram up/down traverse motor
- Centralized one-shot lubrication system provides lubrication to all points
90 AMP New Kent USA Sinker Type EDM Model KEB-707B Standard Accessories:
- Work head
- Work lamp
- Filter
- Tool box
- Automatic fire extinguisher
- Color LCD
90 AMP New Kent USA Sinker Type EDM Model KEB-707B Optional Features:
- Super sparking
- Permanent magnetic chuck
