9″ x 49″ New Acer E-Mill Vertical Mill Model 3VS II – In Stock!

The Acer E-mill 3VS Model 3VS II Single Phase with Electronic variable speed head milling machine features, specifications and options.
Call for pricing 614-255-9000

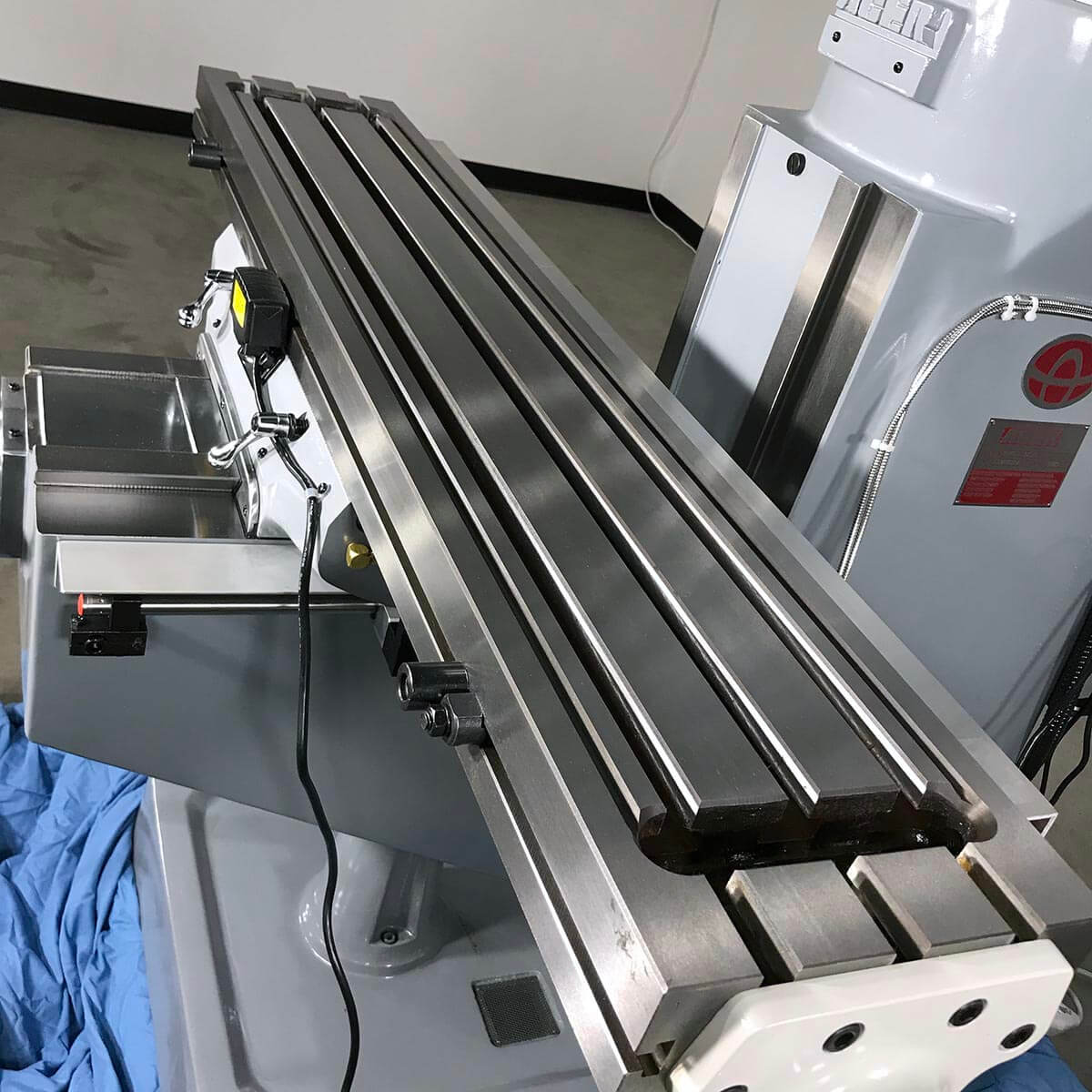

In Stock! NOTE: Photos show optional accessories added to machine. Accessories are not included in base price.
F.O.B. East Coast Fulfillment Center
Terms: Check with Order

Options

Description

The Acer E-mill Model 3VS II Single Phase Series milling machines are “trouble free” mills. They were designed to satisfy all your milling needs by simplifying the mill head design, reduce training time, and improve productivity. Some of our Acer E-mill features are ANILAM 3300MK and 3200MK controls, which create the industry’s new standard in combining ease of use and high performance.

New Acer E-Mill Vertical Mill Model 3VS II Unboxing Video:



New Acer E-Mill Vertical Mill Model 3VSII Specifications:

Table Size 9″ x 49″
Longitudinal Travel Manual 28″
Cross Travel-Manual 12″
Vertical Knee Travel 16″
Ram Travel 12″
Table Load 750 lbs.
Travel X-Axis 34″
Travel Y-Axis 12.6″
Travel Z-Axis 16″
Travel Spindle Nose to Table Surface .6″~17.3″
Travel Spindle Center to Column Surface 5.1″~20.3″
Quill Travel 5″
Quill Diameter 3-3/8″
Main Motor 3 HP
Head Rotates Right-Left  ±90°
Head Tilts Front-Back  ±45°
Spindle Speeds 60~4500 rpm
Spindle Taper R-8 (NT#30 Opt.)
Machine Weight 2,380 Lbs

New Acer E-Mill Vertical Mill Model 3VS II Features:

  • 3 HP Spindle Motor & Precision R8 Spindle w/ ABEC-7 Bearings
  • Large Digital Spindle RPM Display
  • Spindle is designed to stay inactive when power is restored after power failure
  • Chrome Plated & Precision Ground Spindle Quill
  • Hardened & Ground Dovetail Ways & 3-Axes Guideways to HRC 52°

New Acer E-Mill Vertical Mill Model 3VS II Optional Accessories:

“NEWALL” 2-Axis DRO (12″ x 30″ travel, 0.0002″ Res. Scale) $2250.00
Installation Fee on 2-Axis DRO $400.00
Longitudinal Power Feed $645.00
Cross Power Feed $700.00
Knew Power Feed $700.00
“SERVO” Longitudinal Feed (M-9121-140) $1110.00
“SERVO” Longitudinal Feed (M-9108-150X) $1225.00
“SERVO” Cross Feed (M-9521-140) $1285.00
“SERVO” Cross Feed (M-9521-150) $1400.00
“SERVO” Knee Feed (M-9811-200) $1575.00
installation Fee: Long. Feed $300.00
Installation Fee: Cross Feed $400.00
Installation Fee:  Knee Feed $500.00
12″ Rotary Table (Vertical & Horizontal) $935.00
Coolant System (Not Installed) $585.00
Coolant System Installation Fee $300.00
Chip Pan (52″ x 31″ x 6″; 49 Lbs.) $405.00
Clamping Kits (52 pcs.) $175.00
R-8 Collet Set (11 pcs/set with 1/8″ increment; 1/8″ ~ 3/4″) $235.00
6″ Angle Lock Milling Vise $525.00
Horizontal Milling Attachment $1285.00
“MAXI-TORQUE” RITE Power Drawbar (Not Installed) $820.00
Installation Fee for Auto-Air Power Draw Bar $300.00
N.S.T. #30 Spindle Taper  $650.00
Installation Fee for N.S.T. #30 Spindle Taper $4500.00
Riser Block 4″ $610.00
Riser Block 6″ $680.00
Riser Block 8″ $705.00
Installation Fees for Riser Blocks (4″/6″/8″ each) $400.00
Upgrade Frequency Inverter 440V/3-Ph $530.00
Halogen or LED-L95 Work Light $260.00
Upgrade to UL Conformity Electric Cabinet $650.00
Installation Fee for UL Conformity Electric Cabinet  $350.00
Upgrade to “NEWALL” 3-Axis DRO (3rd Axis on QUILL or KNEE) $750.00
Installation Fee for 3rd-Axis DRO on QUILL or KNEE $450.00
