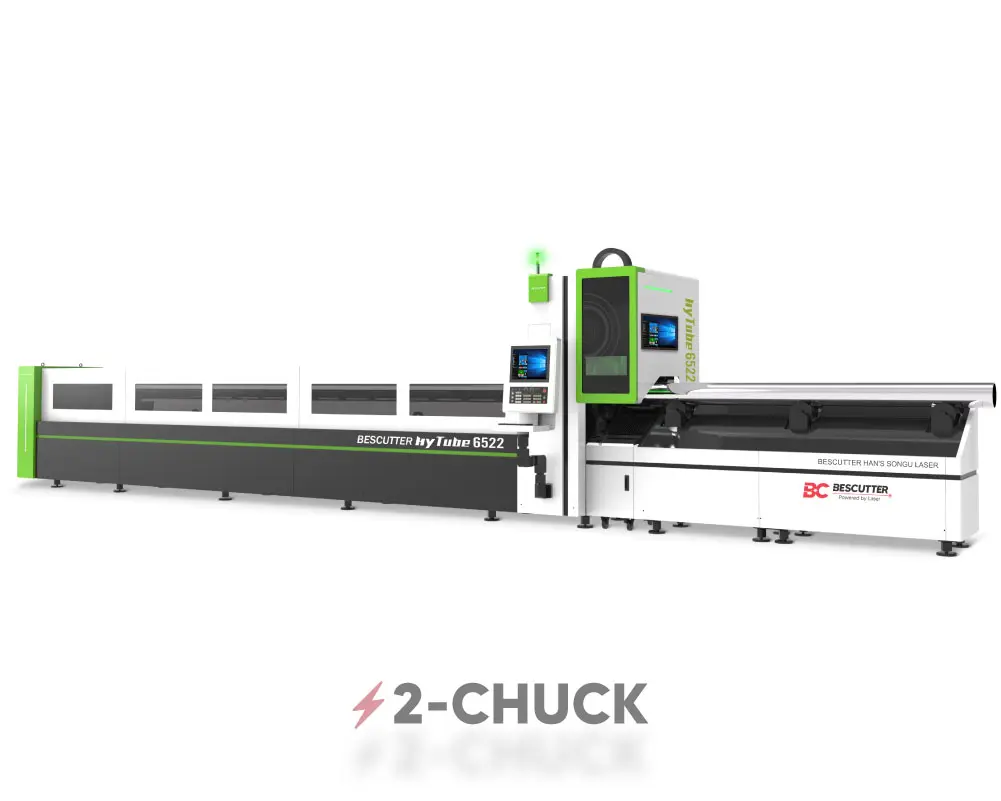

BesCutter 2-Chuck Hytube IPG Fiber Laser Pipe Cutting Machine with auto loading Overview and Standard Features:

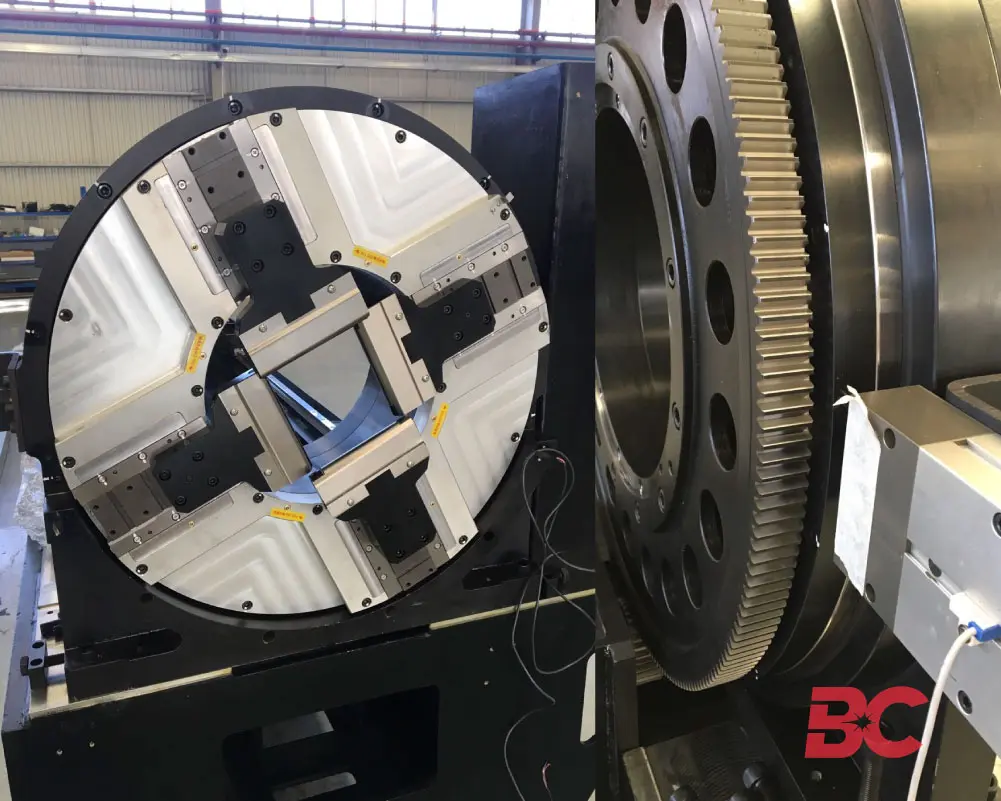

The BesCutter HYTUBE 2-Chuck Fiber Laser Cutting Machine is an advanced, high-efficiency system engineered for the automatic cutting of long-sized tubes and structural steel sections. Its dual pneumatic chuck system provides secure clamping and precise material rotation, ensuring high cutting accuracy and stability. The system supports various tube shapes, including T/H/I/L sections, round, square, triangle, rectangular, oval, channel, and L-shape tubes.
Key Features:
- Powerful and Versatile Cutting – Supports up to 1500W to 6000 W laser power for clean, high-speed cutting.
- Automated Precision – Equipped with Precitec Light-Cutter for high accuracy and autofocus capabilities.
- FASTCUT CNC System – Intuitive user-friendly interface for seamless operation.
- Adaptive Tube Recognition – Automatically detects and adjusts settings for different tube types. Special designed flexible tube support device, to keep the device grip the tube tightly during the tube feeding and rotating. Support power is set according to tube size, ensure the tube would not droop, and minimize the axis swing during the rotation, improve the cutting accuracy.
- TubesT Nesting Software – Optimizes material utilization and improves workflow.

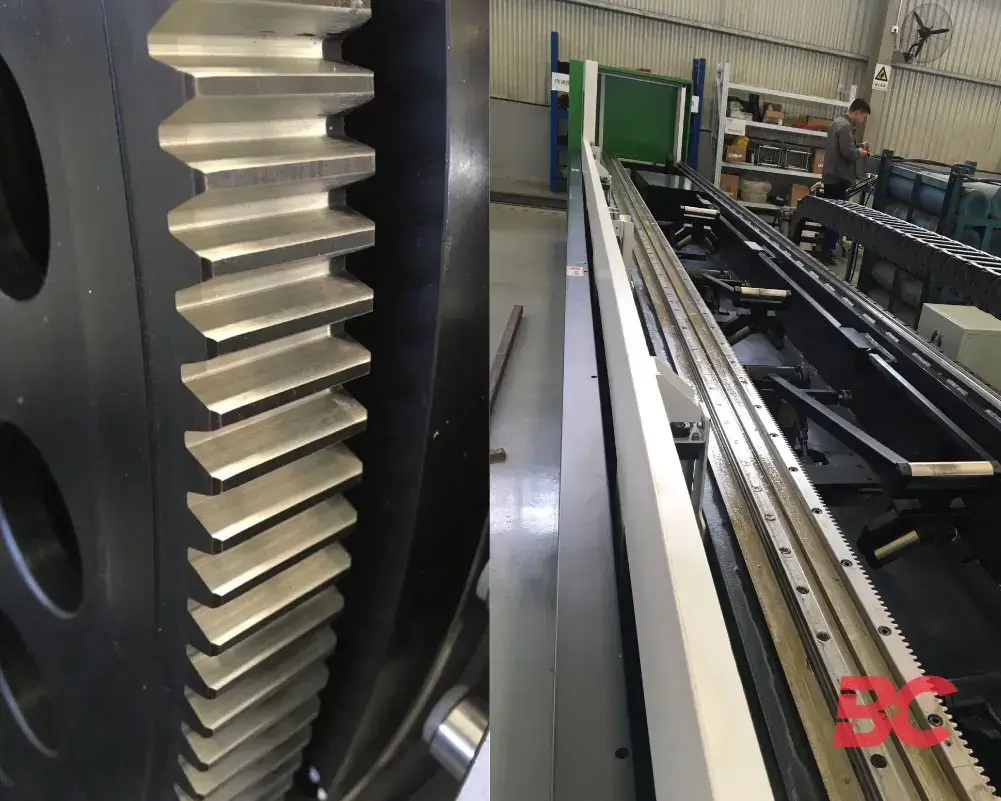

- Industrial-Grade Components – YASKAWA servo motors, Rexroth linear rails, and Alpha precision gear ensure durability and reliability.

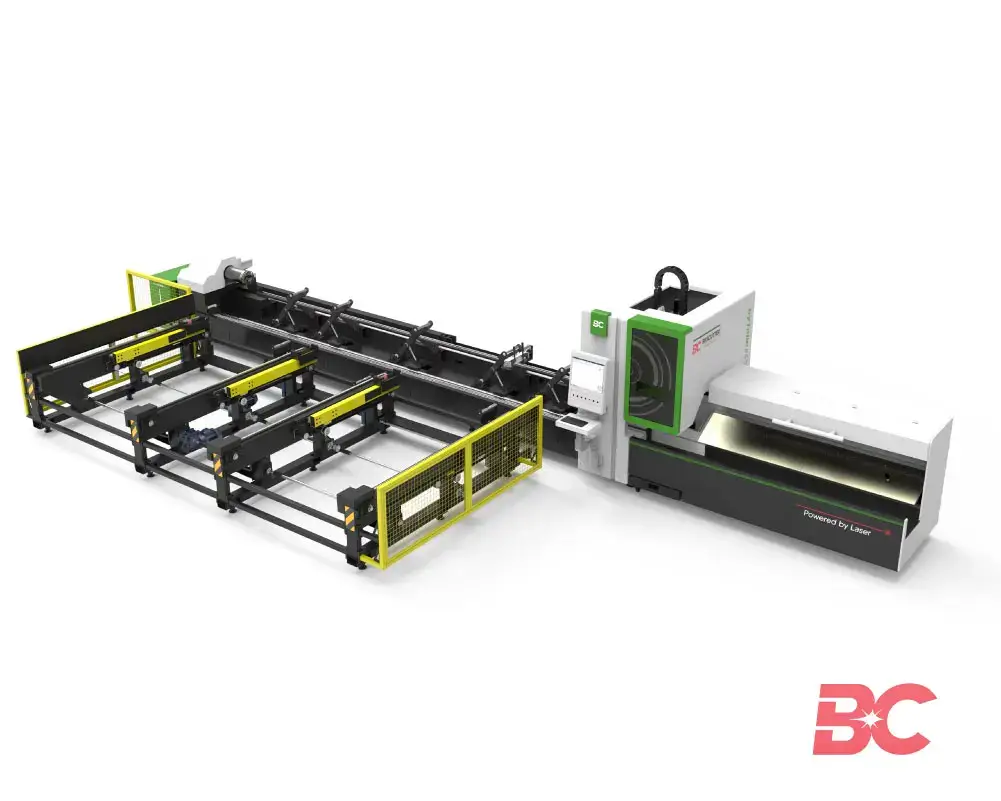

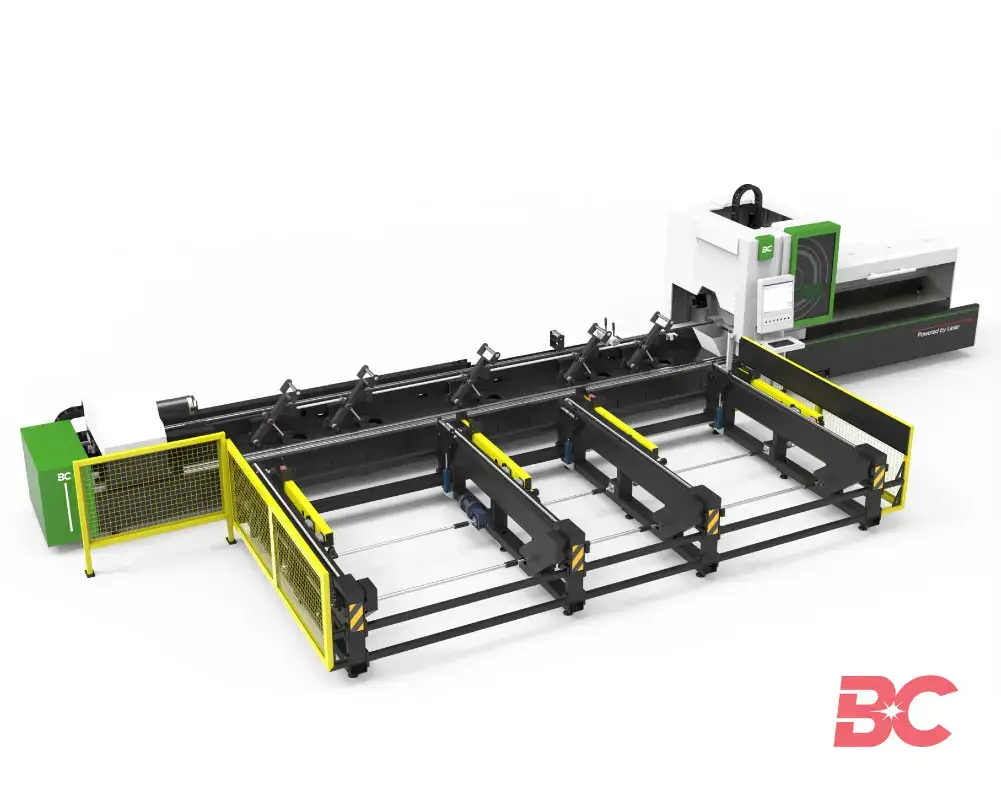

- Automatically loading by whole package tube, reduce staff number and improve the processing efficiency.
- Tube type auto-recognition system, different types tubes can be mixed loading together, the system will select the proper parameter from the application library automatically.
- Tube cutting application library make operator enjoy the user-friendly HMI and “One-button setting parameter” function according to the tube type, the parameter can be modified in real-time.
- High precision & high-pressure servo-control valve can precisely control the cutting gas and pneumatic chuck, to achieve the best cutting quality.
- Linear positioning speed is 100m/min, rotation positioning speed is 120m/min.
PRECITEC Laser Cutting Head
Precitec laser cutting head is most professional laser cutting head, stable performance, and simple to use. Features: Auto-adjust laser alignment system: the laser cutting head can ensure the cutting quality within the working area. Optics detection function: to ensure the stability during the cutting process, avoid contamination to the head. Auto-focus function: Non-contact capacitive sensor is used to keep the same distance between the cutting nozzle and material, even for the surface with curves. Special designed cutting nozzle: to minimize the gas consumption during cutting. Protection lens is used to keep optic lens safe, and it is much easier for maintenance. Edge detection function: the laser head will automatically locate the material position, then adjust the coordinate system in software directly.
Laser Source
Adopts IPG new laser source:
- Over 40% Wall-plug Efficiency
- Hot Redundancy & Good Stability
- Integrated Coupler or Beam Switch Option
- Excellent Beam Parameter Product
- Real-time running log monitoring
- Excellent Beam Parameter Product
- Maintenance-free Operation
- Constant BPP over Entire Power Range
- Compact, Rugged & Easy to Install
Control System
- FSCUT5000 is a high-performance open loop laser control system.
- It is widely used in the field of metal and non-metal laser cutting. Because of its outstanding performance in the field of medium power fiber laser cutting, it is favored by many high-quality customers.
- Users can set the output port of following, rise (close following), stop (Hold), move up and down by clicking, and input port of following signal, by themselves. User friendly HMI, with status and the current position display function.
- 200G hard disk storage space
BesCutter 2-Chuck Hytube IPG Fiber Laser Pipe Cutting Machine with auto loading Specifications:
| Tube Range | Standard: 240″ / Optional: 354″ |
| Tube Diameter | Standard: 0.78″ – 8.66″ / Optional: 0.78″ – 12.60″ |
| X, Y, Z axis distance | 246″ / 7.87″ / 6.30″ |
| A, B Axis | Infinite Rotation |
| X, Y-axis positioning accuracy | ±0.03 mm/1000 mm |
| X, Y axis re-positioning accuracy | ±0.05 mm |
| A, B axis positioning accuracy | ±30″ |
| A, B axis re-positioning accuracy | ±10″ |
| X, Y axis max positioning speed | 100m/min |
| Max positioning speed | 100 rpm |
| Maximum load weight | 3,500 lbs |
| Laser Resonator | IPG |
| Optional Laser Wattage | IPG 2000W / 3000W / 4000W |
| Laser head | PRECITEC |
| Machine Weight (with auto loader) | 26,455 lbs |
| Dimensions LxWxH (with auto loader) | 472″ x 169″ x 110″ |
