Description

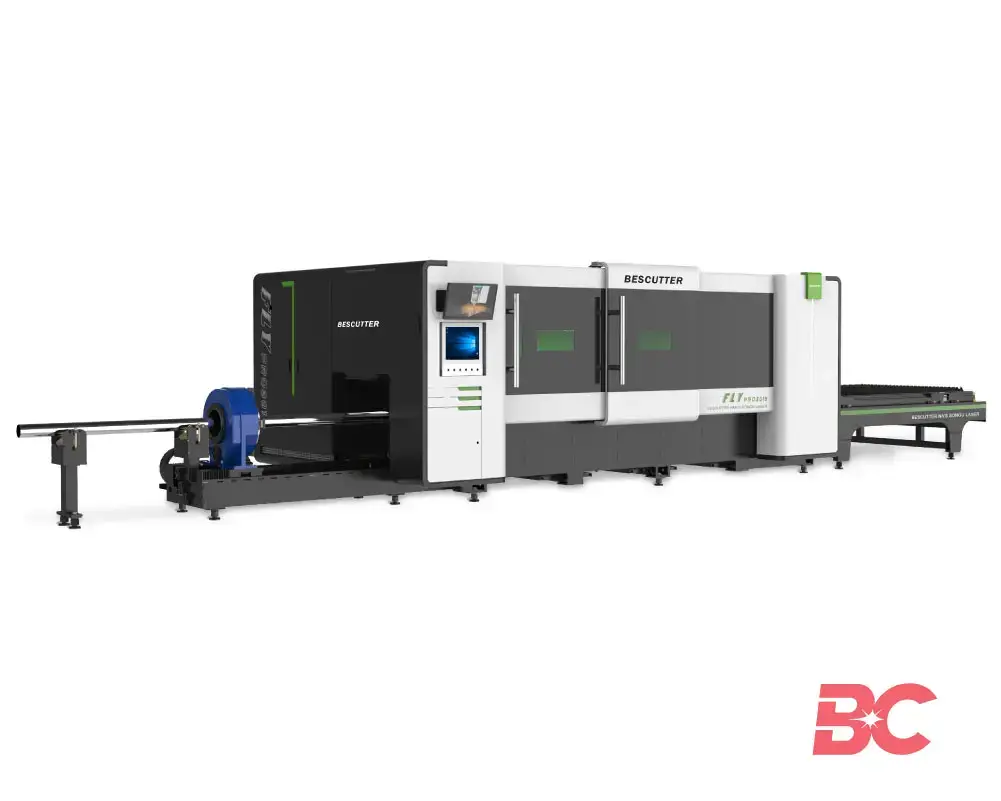

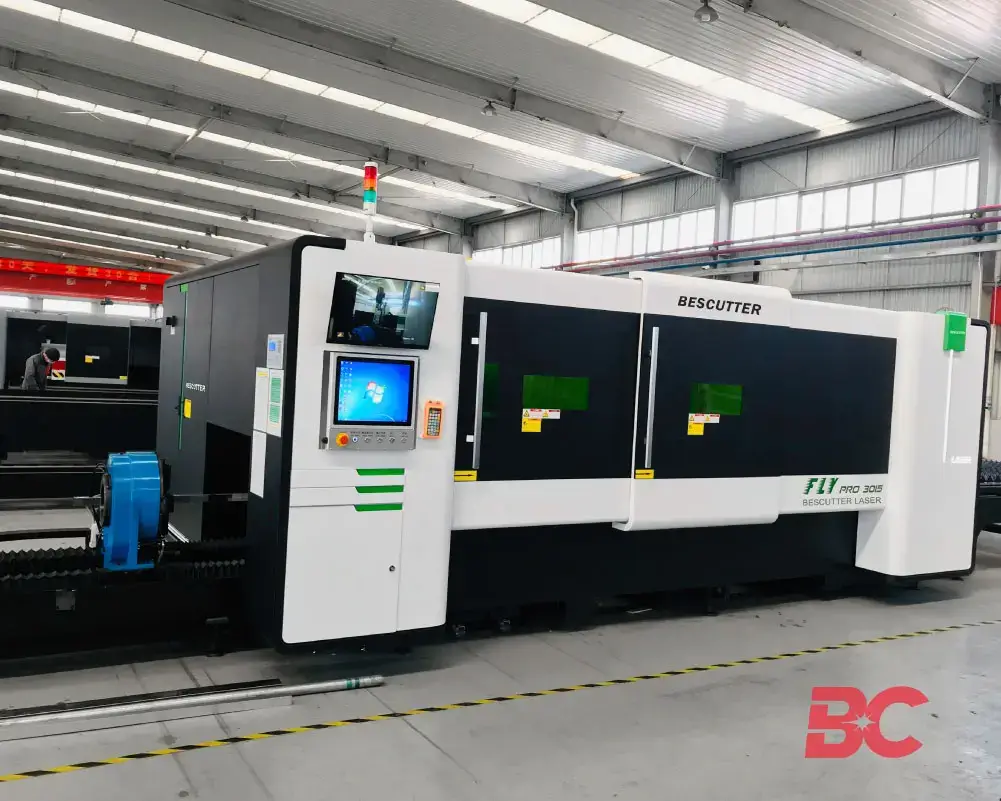

5′ x 10′ BesCutter Fly Pro Series (Full Enclosure with Parallel Shuttle Table) Overview:
The Bescutter FLY PRO is a versatile fiber laser cutting machine engineered for high-speed precision cutting of both metal sheets and tubes. With a Gantry Double-Drive Structure, the machine delivers exceptional cutting performance, accuracy, and durability.
Unmatched Performance & Versatility

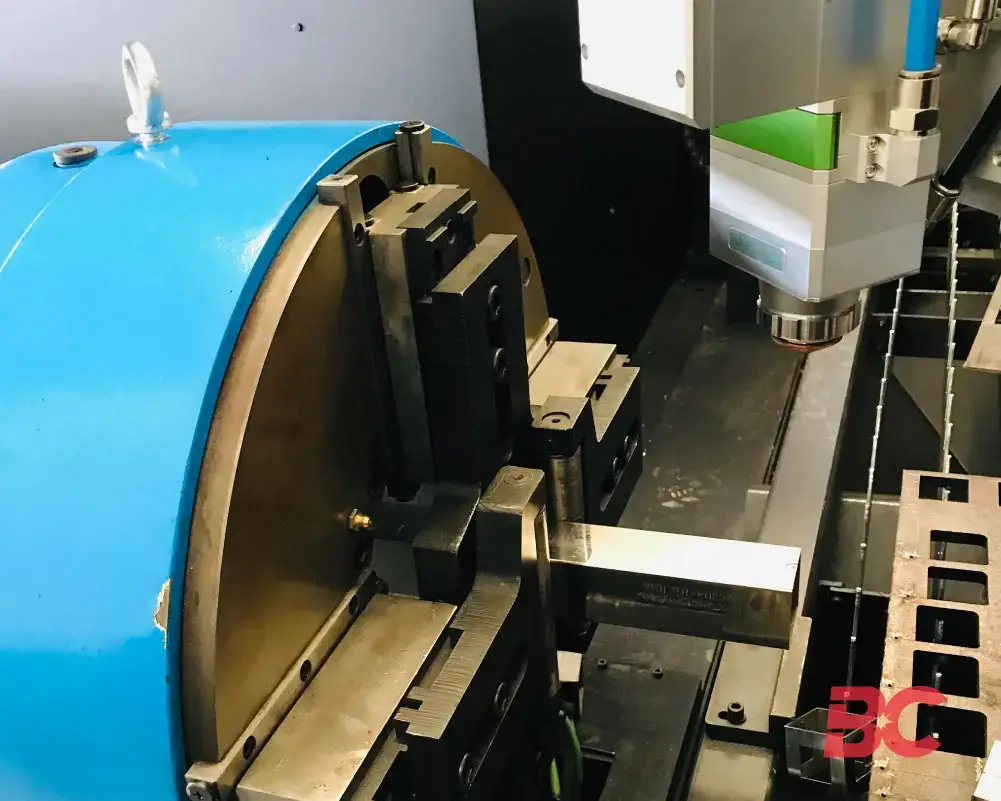

The FLY PRO is equipped with Raytools or Precitec laser heads, offering auto-focusing capabilities to handle a wide range of materials. With tube and plate cutting options, this machine is designed for high-efficiency production.
5′ x 10′ BesCutter Fly Pro Series (Full Enclosure with Parallel Shuttle Table) Standard Features:
- High Cutting Speeds: Up to 140 m/min positioning speed with high acceleration (1.6G).
- Precision Cutting Head: Options include Raytools 1.5kW – 4kW or Precitec 6kW laser heads.
- CypCut Control System: User-friendly interface with remote control and 17” touchscreen.

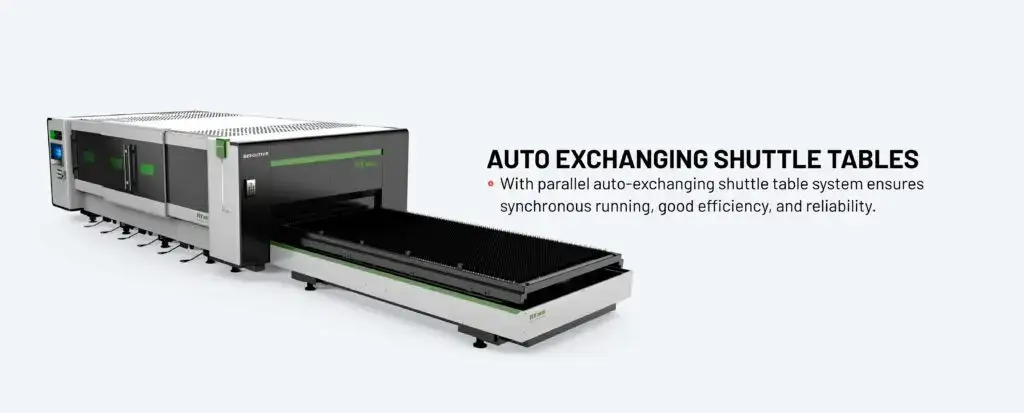

Automatic Shuttle Tables: For continuous operation and improved workflow efficiency. - Smart Automation: Auto-focusing, edge detection, and nesting software for enhanced production efficiency.
5′ x 10′ BesCutter Fly Pro Series (Full Enclosure with Parallel Shuttle Table) Specifications:
| Standard working area | 5′ x 10′ |
| Optional working area | 6.5′ x 13′ / 6.5′ x 20′ / 6.5′ x 26′ |
| Optional laser wattage | From 1,500W to 30,000W |
| Y axis distance | 120″ |
| Y axis distance | 61″ |

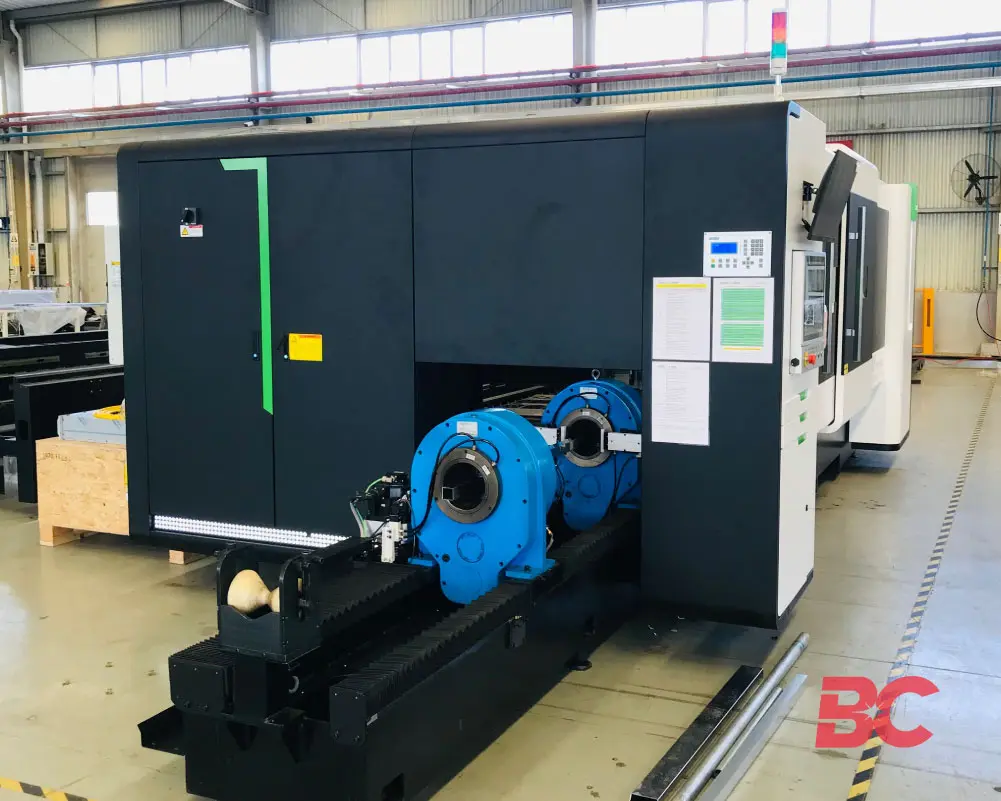

| Tube X1 axis distance | 59″ |

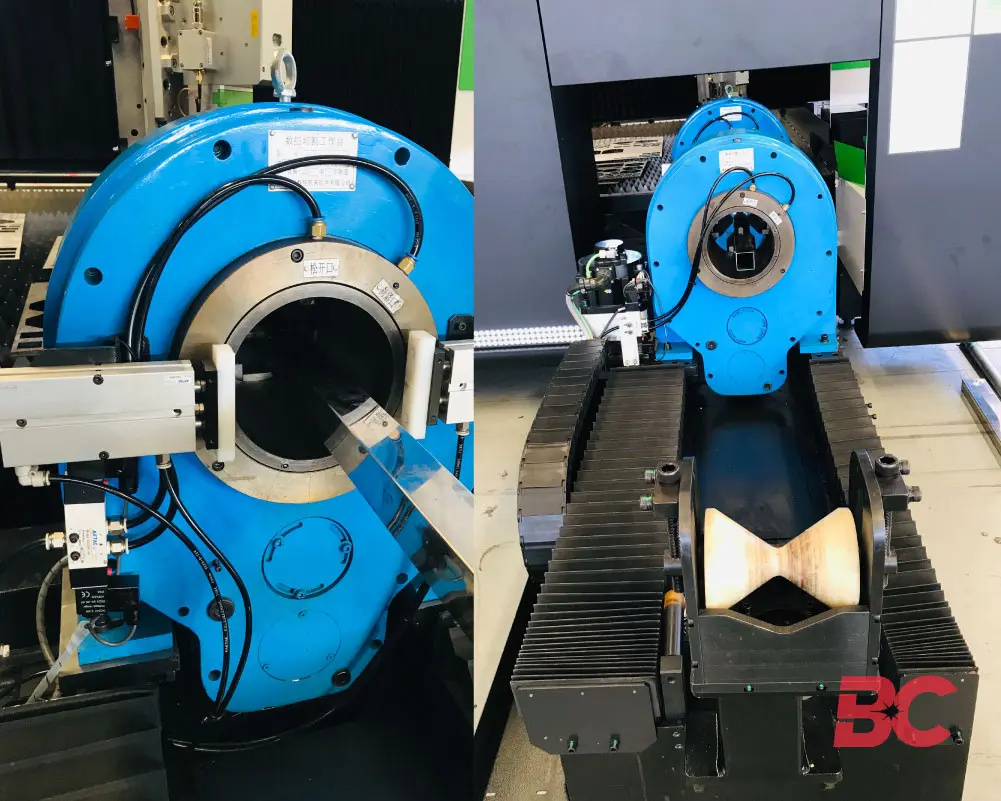

| Tube A, B axis distance | Infinite Rotation |
| Tube diameter | Standard: 0.78″-8.66″ (20-220 mm); Optional: 0.78″-12.6″ (20-320 mm) |
| Z axis distance | 11.8″ |
| X, Y Two axis coordinated positioning speed (Max) | 140 m/min |
| Positioning acceleration (Max) | 1.5 G |
| Positioning accuracy | ±0.05 mm/m |
| Re-positioning accuracy | ±0.02 mm/m |
| Maximum sheet load weight | 1543 lbs |
| Maximum pipe load weight | Auto Loading 220 lbs , Manual loading 440 lbs |
| Laser resonator | BC Power / Han’s / MAX / Corative |
| Laser Head | Raytools / Han’s / Precitec / Boci |
| Controlling system | Cypcut |
| X-Y-Z Servo motors | X-(2x2900W); Y- (1x850W); Z-(1x750W) |
| Machine Body Weight | Approx. 15,432 Lbs. |
| Pipe rotation weight | Approx. 2204 lbs. |
| Exchanging shuttle tables & auxiliary weight | Approx. 5511 lbs |
| Dimensions (No Pipe cutting) | 350″ x 118″ x 80″ |
| Dimensions (with pipe cutting) | 429″ x 142″ x 80″ |
