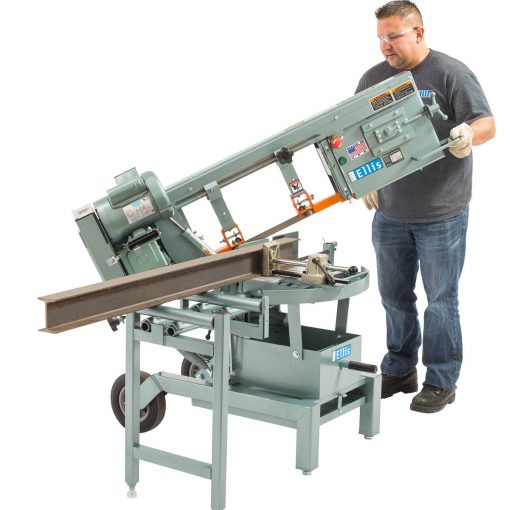

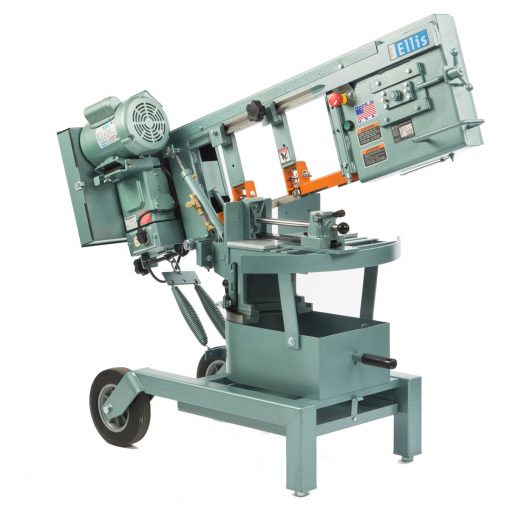

10″ x 11″ New Ellis horizontal band saw Model 1600

New Ellis horizontal band saw for sale at Worldwide Machine Tool request pricing, view specifications and accessories below. Ellis horizontal band saws are engineered and manufactured in the United States. New Ellis saws miter at 45° left or right. The 2000 model miters to 60° left or right. In addition every new Ellis saw are dry cutting, but can be bought with an optional air system.
Terms:  Check with Order

Options

SKU: 3826 Category:

Description

Ellis mitering horizontal band saws are engineered and manufactured with high quality in the United States. New Ellis horizontal band saws miter at 45° left or right. The 2000 model miters to 60° left or right. In addition every new Ellis saw are dry cutting, but can be bought with an optional air system.

10″ x 11″ New Ellis horizontal band saw Model 1600 Specifications:

Maximum Cutting Capacity @ 90 Degrees 10″ x 11″
Cutting Capacity 10” Round at 90°
8” Pipe at 90°
11” Flat at 90°
6-7/8” Round at 45°
6” Pipe at 45°
7-1/4” Flat at 45°
10” H x 8” W at 90°
8” H x 6” W at 45°
Blade Size 1″ x 10′
Main Motor 1 H.P. 110/220 Volt 1 Phs.
Blade Speeds 55-115-230 FPM
Vise Quick Adjusting Camlock
Shut Off Automatic
Machine Weight 525 Lbs.

10″ x 11″ New Ellis horizontal band saw Model 1600 Equipped with:

  • Head Pressure Controlled By Hydraulic Cylinder
  • 10″ Wheels For Portability
  • Sealed Oil Bath Worm Gear
  • Removable Chip Tray
  • Heavy Steel – Welded Base & Frame

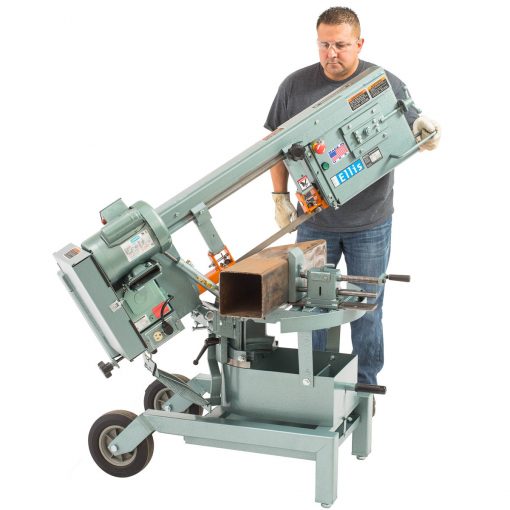

  • Head of band saw moves left or right for angle cutting
  • Built-in protractor for fast and accurate selection of angles

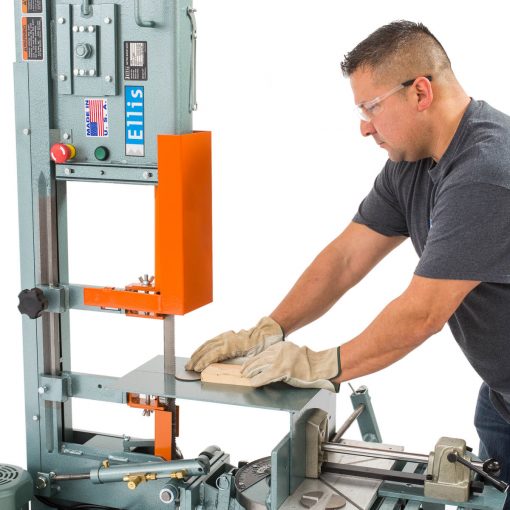

  • One-step conversion from horizontal to vertical band saw
  • Stock remains in one position for all cuts
  • Portable-this band saw moves easily to the job site
2 roller support stand with stock gauge and micro-adjuster $375.00
Single stock support stand with one roller, movable

$325.00

5 ft. Stock support stand with 4 rollers

$800.00

Air System (cleans and cools blade)

$325.00

Vertical table with blade guard

$150.00
