30" x 120" New Lion Lathe MODEL 30-CU ENGINE LATHE 4" Spindle Bore for sale Worldwide Machine Tool in Columbus Ohio call 614-255-9000

30″ x 120″ New Lion Lathe 30-CU

  • Heavy Duty Monoblock Solid One Piece Casting

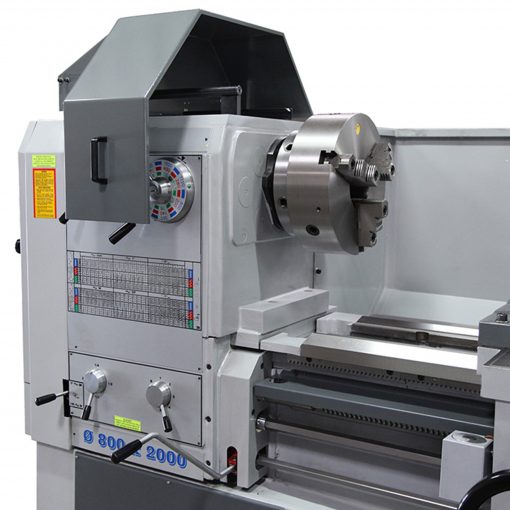

  • Clutched Headstock With SKF Bearings
  • Inch/Metric Threading

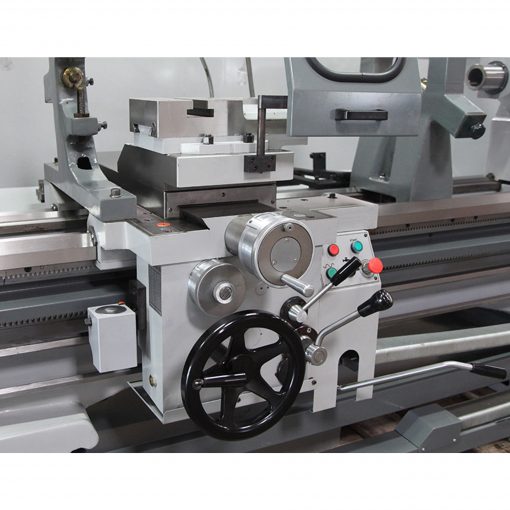

  • 4 Way Rapid Traverse

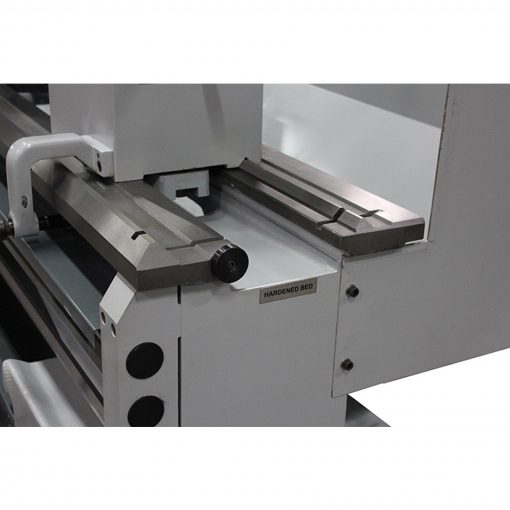

  • Hardened & Ground Ways

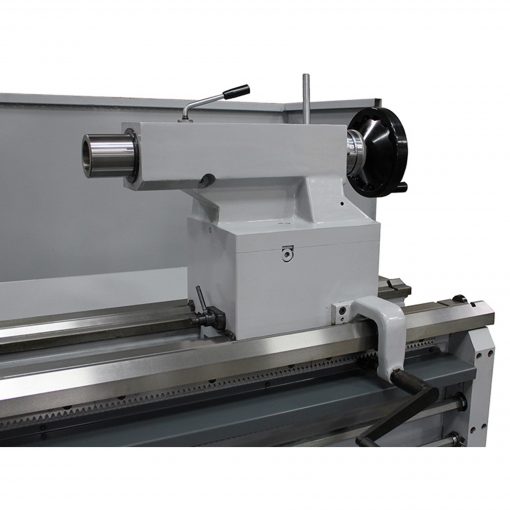

  • Two Speed Tailstock
  • Coolant System
  • Work Light
  • Pull Out Chip Pan

Price On Request
F.O.B. Factory

SKU: 3729 Category:

Description

The 30″ x 120″ Lion Lathe Model 30-CU is among the heaviest manual lathes produced in this size range. It features a heavy duty clutched headstock with hardened and ground gears, 4″ spindle bore, accurate spindle with SKF spindle bearings, removable gap for machining large parts, Inch & Metric threading without change of gear, and the convenience of a single lever feed joystick which operates feeds and the 4-way rapid traverse. This rugged engine lathe also features heavy duty monoblock bed construction with 19″ wide bedways and heavy machine weights. With so many features all on one lathe, this is an ideal choice to meet the demands of your manual metalworking lathe needs.

30″ x 120″ Lion Lathe Specifications:

Specification 30-CU
Swing Over Bed 30″
Swing Over Cross Slide 20 – 1/4″
Swing In The Gap 38 – 3/4″
Length In Gap From 4-Jaw Chuck 8 – 1/2″
Distance Between Centers 120″
Spindle Nose D1-11
Spindle Bore 4 – 1/8″
Spindle Bearings SKF
Number Of Spindle Speeds 16
Range Of Speeds 9 – 1600 RPM
Number Of Threads 72
Range Of Inch Threads 60 – 1/8 TPI
Range Of Metric Threads 0.5 – 240
Number Of Feeds 72
Range Of Longitudinal Feeds .0019 – .893
Range Of Cross Feeds .0015 – .701
Lead Screw Diameter 2”
Lead Screw Pitch 2 TPI
Max. Traverse Of Cross Slide 20 – 1/4″
Max. Traverse Of Top Slide 9″
Taper Turning Working Length 15 – 3/4″
Maximum Taper +/- 10°
Tailstock Quill Diameter 3 – 1/2″
Tailstock Quill Taper Bore 6 MT
Maximum Quill Stroke 7 – 3/4″
Lateral Stroke Of Tailstock +/- 3/8”
Width Of Bed 19″
Ways Hardened & Ground
Motor Power 17.5 H.P.
Electrics 3 Phase 220V (440V Opt.)
Length 124″ / 143″ / 183″ / 222″ / 261″
Width 61″
Height 67″
Overall Weight Lbs. (Approx.) 11,800
SKU 1813

30″ x 120″ Lion Lathe Equipped with:

  • Heavy Duty Monoblock Solid One Piece Casting
  • Clutched Headstock With SKF Bearings
  • Inch/Metric Threading
  • 4 Way Rapid Traverse
  • Hardened & Ground Ways
  • Two Speed Tailstock
  • Coolant System
  • Work Light
  • Pull Out Chip Pan

30″ x 120″ Lion lathe comes equipped with:

  • Taper Turning Attachment
  • 3-Jaw Chuck
  • 4-Jaw Chuck
  • Steady Rest
  • Follow Rest
  • Splash Guard & Chip Guard
  • Coolant Pump & Tank
  • Thread Chasing Dial
  • Work Light
  • Chip Tray
