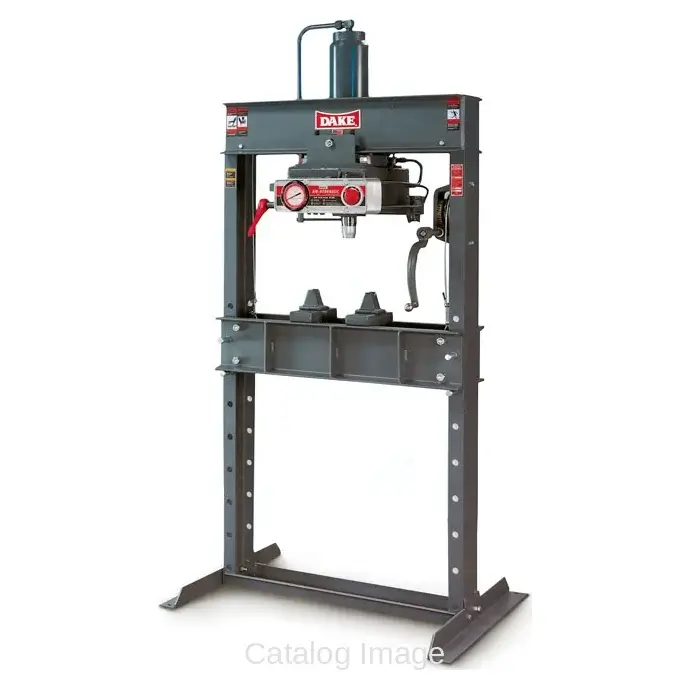

50 Ton New Dake Air Operated H-Frame Press Model 6-450

50 Ton New Dake Air Operated H-Frame Press Model 6-450

  • Frame
  • Workhead
  • 2 Steel V-blocks
  • 2 Steel Table Plates¬†
  • Flat Ram Nose
  • Pressure Gauge
  • Self-Locking Table Hoist
  • Safety Relief Valve
  • Stroke Indicator

Price On Request
F.O.B. Factory

SKU: 31022 Categories: , ,


Offering 50 tons of pressing power, this air operated press eliminates the need of hand pumping or electrical power. Standing 87 inches tall, this press offers 55 IMP ram advance speed.

50 Ton New Dake Air Operated H-Frame Press Model 6-450 Specifications:

Part Number 906450
Capacity 50 tons
Operation Air
Horsepower n/a
Voltage n/a
Width Between Uprights 33-3/4″
Width Between Table Channels 7-1/4″
Minimum Ram to Table 5″
Maximum Ram to Table 40″
Ram Travel 10″
Screw Travel n/a
Horizontal Workhead Travel 13-3/4″
Footprint 43-1/2″ x 36″
Height 87″
Weight 1,150 lbs
Base 43-1/2″ x 36″
Ram Advance Speed 55 ipm
Pressing Speed 5 ipm
Number of Pumps 2
Air Pressure 90-125 psi

50 Ton New Dake Air Operated H-Frame Press Model 6-450 Features:

  • Air operation eliminates the need for hand pumping.
  • Rapid ram approach quickly moves ram to work to save production time.
  • By-pass hole prevents excessive ram extension.
  • Adjustable table permits easy vertical movement by means of self-locking hoist.
  • Double pump for faster pressing.

50 Ton New Dake Air Operated H-Frame Press Model 6-450 Standard Equipment:

  • Frame
  • 2 Steel V-blocks
  • Flat Ram Nose
  • Stroke Indicator
  • Safety Relief Valve
  • Pressure Gauge
  • Workhead
  • 2 Steel Table Plates
  • Self-Locking Table Hoist
