The DoALL S-320CNC StructurALL® miter, CNC automatic, metal-cutting band saw is ideal for fabricating shops, maintenance facilities, tool and manufacturing plants. The S-320CNC can also be classified as a horizontal structural, scissor-style miter-cutting saw. Hydraulically controlled, this CNC machine provides automatic indexing for multiple material feeds. With the easy-to-use controller, operators need only remove the material that has been cut. Designed for vertical and angular cuts, the DoALL swivel band saw is adjustable to 60° to the right in semi-automatic mode only.
11.75″ x 12.5″ New DoAll Horizontal Band Saw Model S-320CNC Specifications:
| Cutting capacity round tube 90° | 11.75″ |
| Cutting capacity round solid 90° | 6″ |
| Cutting capacity rectangle 90° | 11.75″ x 12.5″ |
| Capacity round at 45° | 4″ – 11.75″ |
| Capacity rectangle at 45° | 11.25″ x 11.75″ |
| Capacity round at 60° | 3″ – 7.75″ |
| Capacity rectangle at 60° | 7.25″ x 7.25″ |
| Saw blade (width x length) | 1″ x 144″ |
| Band Drive | |
| Motor Hp | 3.5 Hp |
| Band speed | 65-325 fpm |
| Band tension | Manual |
| Hydraulic System | |
| Motor Hp | 1 Hp |
| Reservoir Size | 2.5 gallon |
| Coolant System | |
| Flood | Yes |
| Mist lubricator | Yes |
| Motor HP | 0.17 Hp |
| Reservoir size | 2.25 gallon |
| Indexer | |
| Length per stroke | 19.5″ |
| Maximum index strokes length | 394″ |
| Remnant length | 3″ |
| Floor Space Dimensions | |
| W x L x H | 91″ x 75″ x 60″ |
| Material pass height | 31.5″ |
| Machine weight | 1,993 lbs |
| Electrical | |
| Voltage requirement (Wye configuration) | 230V-60Hz-3ph |
| Total amp draw (FLA) | 14.7 amps |
11.75″ x 12.5″ New DoAll Horizontal Band Saw Model S-320CNC Features:

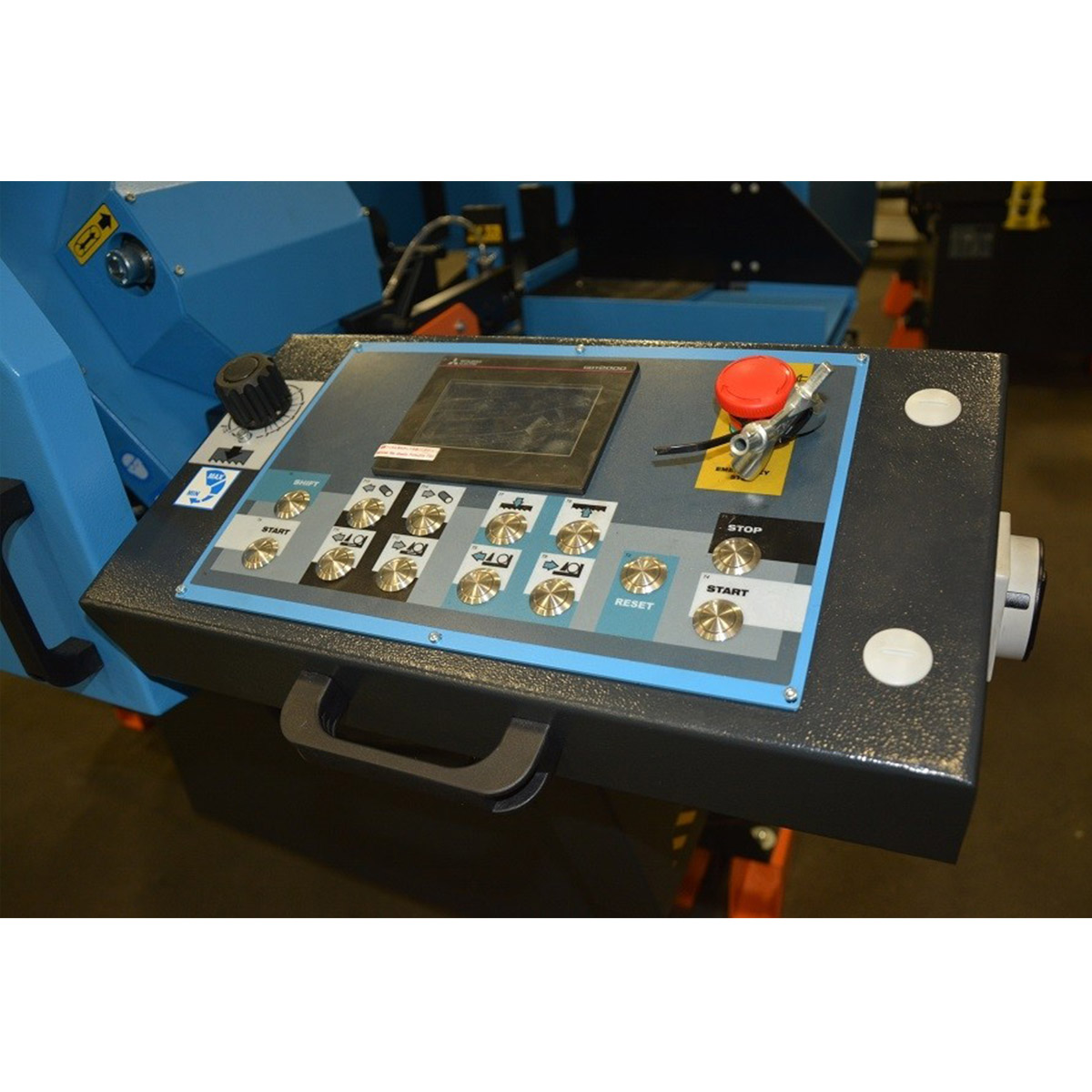

- Operator Control Console: Control console can be positioned for operator comfort and safety insuring hands are away from blade at band start.
- Mitsubishi Touch Screen Panel: The touch screen control panel displays cutting cycle indicator, blade tension warning, BRP (overfeed protection) function, band speed, band drive amp load and a list of error messages allowing operator to monitor machine functions.
- Direct Driven Band Drive: Drive is comprised of an electric VFD controlled motor transferring power through a gear reduction unit directly to the drive wheel eliminates belt slippage and gives positive torque to the blade.
- Automatic Cycle: The Automatic Cycle function allows the operator the ability to write and save 20 individual programs containing up to 15 different length of parts eliminating the need to stop the cycle and reset for multiple part sizes saving production time.
- Automatic Overload Feed Protection: BRP function monitors band drive motor amperage stopping head fall when operator set parameter is reached signaling overfeed or a dull saw band.
- Band Wheels: Cast steel wheels insure band tracking and long life. Lay back head design minimizes band twist which causes band fatigue and also allows a smaller foot print.
- Hydraulic Clamping Vise: Full stroke hydraulic vises will minimize set up time and maximize clamping pressure eliminating material movement and tooth strippage.
- Indexer: The vise carriage is guided with two hardened chrome plated rods and is positioned by a servo controlled ball screw insuring accuracy and repeatability also allowing for incremental indexing which decreases cycle time.
- Head Turn Table: The miter function is accomplished by turning a conveniently located lock and manually swiveling the head to the desired angle which is displayed on touch screen allowing operator to make miter cuts in the semi-automatic production mode.
- Manual Blade Tension: Illuminating indicator prevents possible error of over/undertightening the band for maximum cutting rates and band life.
- Band Brush: Driven band brush removes the chips from the blade gullets which would prevent the blade from attaining maximum cutting rates and band life.
- Counter Balance Spring: Counterbalance springs maintain constant head weight throughout the cut keeping the blade tooth load equal aiding in maximum blade life.
- Warranty: One year parts only subject to the terms and conditions. Optional ten year warranty is available.
11.75″ x 12.5″ New DoAll Horizontal Band Saw Model S-320CNC Standard Equipment:
- Swivel head to 60 degrees right
- Automatic cycle
- Movable control console
- Rapid head down approach
- Carbide faced saw guide inserts
- Material height sensor
- Full stroke hydraulic vises
- Driven band cleaning brushes
- Ball screw with incremental feed
- Heavy duty counter balance springs
- Cast steel band wheels
- Fine adjustment head feed control
- Overfeed protection
- Infinite band speed controlled variable frequency drive
- Mitsubishi touch screen controller
- Digital angle position
- Out of stock sensor
- Manual band tension
- Variable vise pressure
- Recirculating coolant system
- Mist band lubricator system
- Work light
- Saw blade guards
- Band door interlocks
- Operation and parts manuals on USB stick
- Recommended band speed chart
- One (1) complimentary DoALL bi-metal saw blade
- Complimentary DoALL cutting fluids package
11.75″ x 12.5″ New DoAll Horizontal Band Saw Model S-320CNC Optional Accessories:
| 300-LR-RDZ 3.3 ft. Output conveyor for angle cutting – 15.4″ roller width – 441 lbs/ft capacity – has adjustable leg | $588 |
| RD-2000/390 6.6 ft. Input or output conveyor – 15.4″ roller width – 134 lbs/ft capacity – has adjustable leg | $848 |
| RB-200 Single fixed vertical conveyor roller – 7.8″ roller height – Mounts to the RD table | $79 |
| RBS-200/390 Single adjustable vertical conveyor roller – 7.8″ roller height – 15.4″ roller width – Requires RB for operation | $140 |
| 231547 10 ft Medium-duty idler conveyor 13″ between frames. Roller capacity 850 lbs | $2,477 |
| 231546 5 ft Medium-duty idler conveyor 13″ between frames. Roller capacity 850 lbs | $1,520 |
| 300×320-HP-A Front and rear hydraulic vise nesting – set of 2 | $3,175 |
| RDN-390 Conveyor support | $183 |
| 300×320-QPARTS Wear parts service kit – contains wear plates, guides, band brushes | $449 |
| BOX-TRI Chip pan with drain | $648 |
| 226028 Magnetic wand chip remover | $195 |
| 299998 Additional USB stick of manuals | $91 |
| Warranty DoALL Cut Above 10 Year Warranty Annual Investment Premium | $4,899 |
| Warranty DoALL Cut Above 10 Year Warranty Annual Investment Platinum | $7,289 |
| 1200002 Starter Kit of Six Pack Blades consist of 1 each Silencer GP 6-10, 8-12, Silencer Plus 4-6, 5-8, and StructurALL 4-6, 5-8 | $365 |
| 13410245 5 Gal. Pail of Band All 102 Semi Synthetic | $160 |
| 21200045 5 Gal. Pail of AL-2000 Mist Coolant | $240 |
