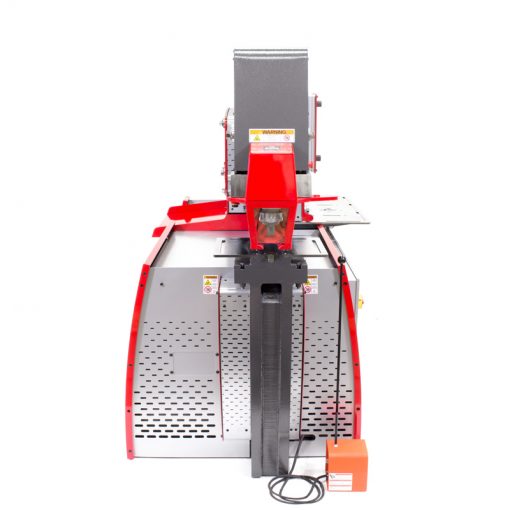

110 / 65 Ton New Edwards ELITE Dual Operator Ironworker

110 / 65 Ton New Edwards ELITE Dual Operator Ironworker

  • Five Workstations
  • Two Independent Power Plants
  • Super-size Punch Throat Depth of 17-3/4″
  • Universal Open Tooling Cavity
  • ANSI B11.5-1988R(02) Compliant
  • ETL/UL Approved Controls

Price On Request

F.O.B. Factory

Clear
SKU: 5518 Categories: ,

Description

110 / 65 Ton New Edwards ELITE Dual Operator Ironworker Specifications:

Tonnage Rating 110 Ton
Max. Cacpacity 1 – 1/16″ Dia. in 1″ A36
Punch Stroke 3″
Punch Throat Depth 17 – 3/4″
Punch Open Height 9 – 3/4″
Punch Shut Height 6 – 9/16″
Punch Work Height 37 – 1/2″
Flat Bar Shear Max. Capacity 3/8″ x 24″ and 1/2″ x 14″ and 1″ x 4″
Flat Bar Shear Max. Capacity Round/Square 1″
Flat Bar Shear Max. Work Height 33″ – 1/2″
Angle Shear Capacity 5″ x 5″ x 3/8″
Angle Shear Work Height 44″
Open Cavity Height 9″
Open Cavity Width 11 – 3/4″
Open Cavity Work Height 40 – 7/8″
Coper Notcher Max. Capacity 2 – 1/2″ x 6″ x 1/2″
Coper Notcher Max. Work Height 35 – 5/8″
Machine Motor 7.5 H.P
Machine Dimensions 44 – 7/8″ x 91 – 9/16″ x 65 – 1/8″
Machine Weight 8,580 Lbs.

110 / 65 Ton New Edwards ELITE Dual Operator Ironworker Features:

  • Five Workstations
  • Two Independent Power Plants
  • Super-size Punch Throat Depth of 17-3/4″
  • Universal Open Tooling Cavity
  • ANSI B11.5-1988R(02) Compliant
  • ETL/UL Approved Controls

110 / 65 Ton New Edwards ELITE Dual Operator Ironworker Equipped with:

  • Hydraulic Hold-Down
  • E-Stop / Lockout-Tagout
  • Electric Stroke Control
  • Hydraulic Accessory Pack
  • Central Lubrication System
  • Swing-Away Stripper Assembly
  • Roller Encoder Measuring System
  • Quick Change Punch Assembly
  • Premium Gauging Tables
  • LED Lighting
