Description

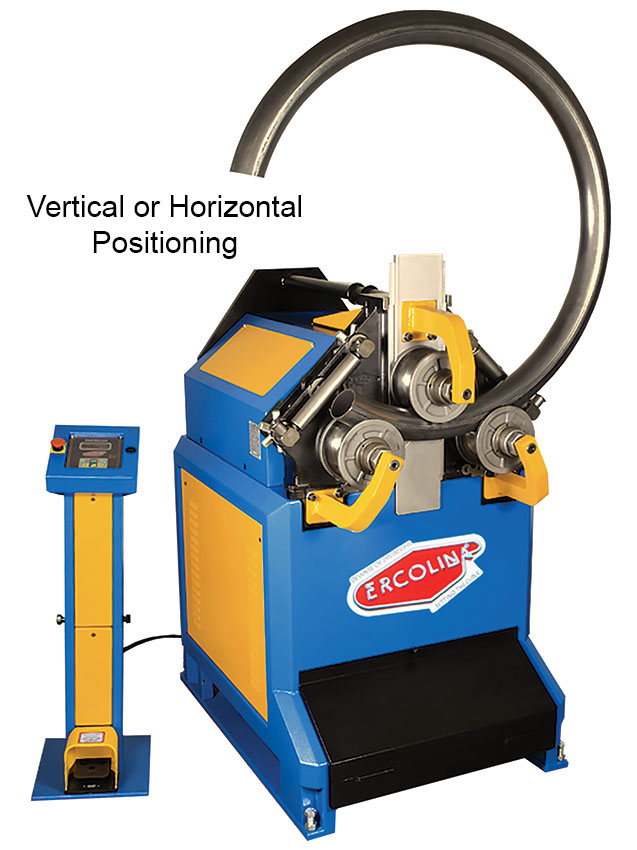

New Ercolina Angle Roll Model CE60H3 Specifications:
Ercolina’s CE60H3 angle roll model offers hydraulic center roll positioning.
Ercolina’s affordable tube benders and fabricating machines are designed to reliably and accurately produce your bending applications. As a result, our machines will increase profit, as well as improve product quality and finish.
| Pipe (Max) | 3″ Sch. 10 |
| Angle (Max) | 2½″ x 2½″ x ⅜″ |
| Tube (Max) | 3½″ – .120 wall |
| Roll Shaft Diameter | 50mm |
| Center Roll Positioning | Hydraulic 17.6 Tons |
| Voltage | 220V or 480V 3ph |
| Shaft Speed | 9 RPM |
| Universal Tooling (Included) | 7″ O.D |
| Programming | NC – Touchpad (8 programs) |
| Distance between Shafts | 15″ |
| Length, Width, Height | 48″ x 29″ x 52″ |
| Weight | 1480 lbs |
New Ercolina Angle Roll Model CE60H3 Features:
● Universal tooling set included with each machine

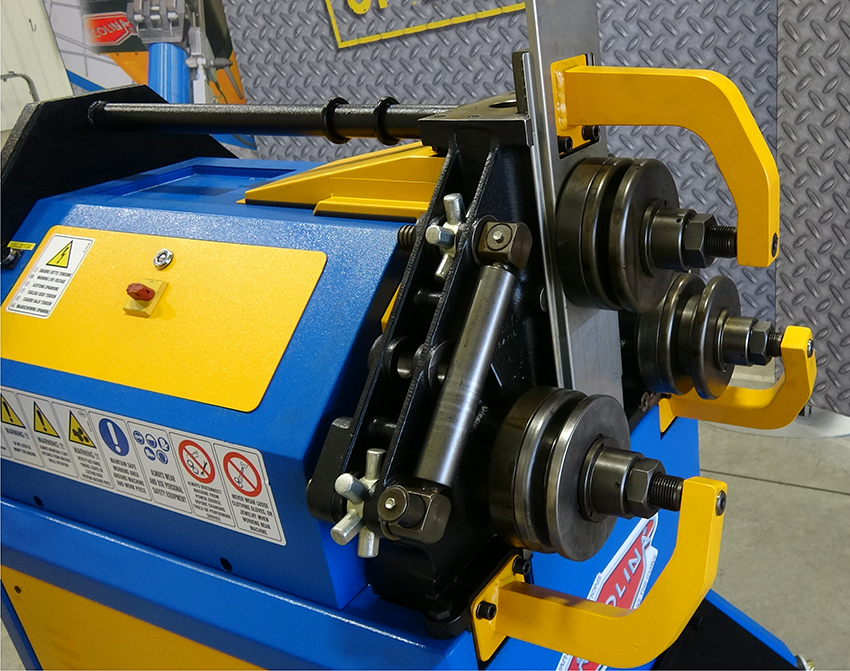

● Forged roll shafts precision ground and fitted for maximum performance and minimal deflection
● Roll shafts supported with conical steel bearings on each side of A Frame
● Heavy duty structure and rigid components for high section modulus ratings
● Reinforced engineered mainframe design proven to outperform competitive models
● In-line direct drive roll shaft system 3-roll driven
● Uses CE50 tooling
● Threaded roll shafts with micrometric flange adjustment helps eliminate spacer usage
● Touchpad controls with digital center roll positioning
● Control tower with low voltage controls and foot pedal
● Hydraulic machine with memory storage has eight (8) individual programs and unlimited passes
● Patented by Ercolina, simultaneous downfeed and roll movement minimizes deformation
● Optional anti-twist correction system required for angle iron “Leg In” applications
● Tie bar supports for each shaft included
New Ercolina Angle Roll Model CE60H3 Optional Accessories:
| Universal Tooling Set | $3,420.00 |
| Universal Tooling Set in Polymer | $3,420.00 |
| Modular Tooling Set- 6 flanges and 9 spacers | $3,100.00 |
| Poly Modular Tooling Set | $3,420.00 |
| Small Radius Tooling | $2,920.00 |
| Angle Iron Anti-Twist Device | $3,040.00 |
| Tie Bar Accessory | $3,490.00 |
| Large Spiral Bending Accessory | $1,920.00 |
| Ornamental Scroll Curling Device | $6,830.00 |
| Bar Twisting Device | $8,030.00 |
| Spray Lubricant, (one) 12 oz can | $40.00 |
| Spray Lubricant, (case of nine) 12 oz cans | $350.00 |
|
Radius & Degree Measuring Kit |
$5,200.00 |
