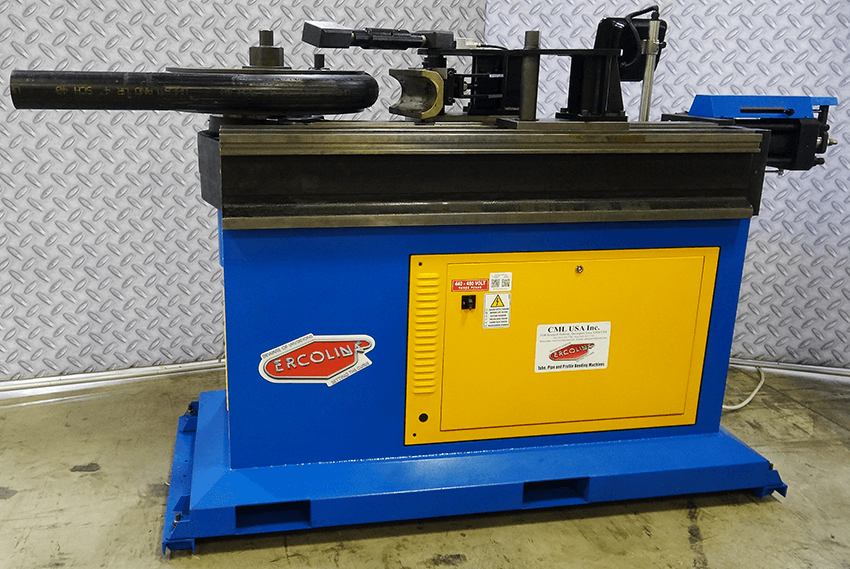

New Ercolina Non-Mandrel Rotary Draw Top Bender TB180 Specifications:

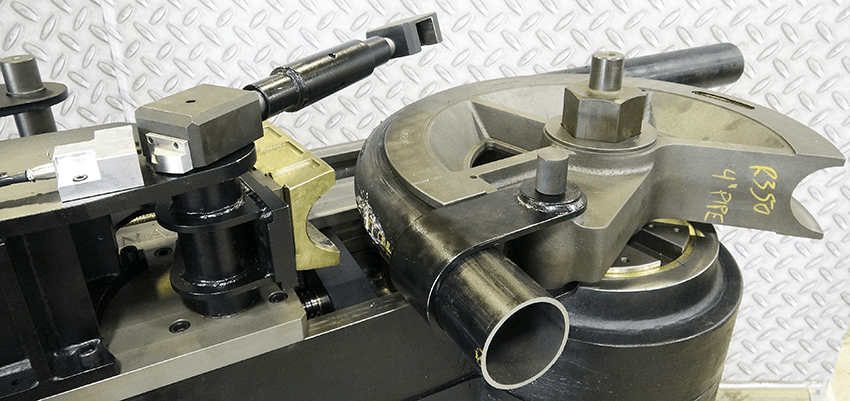

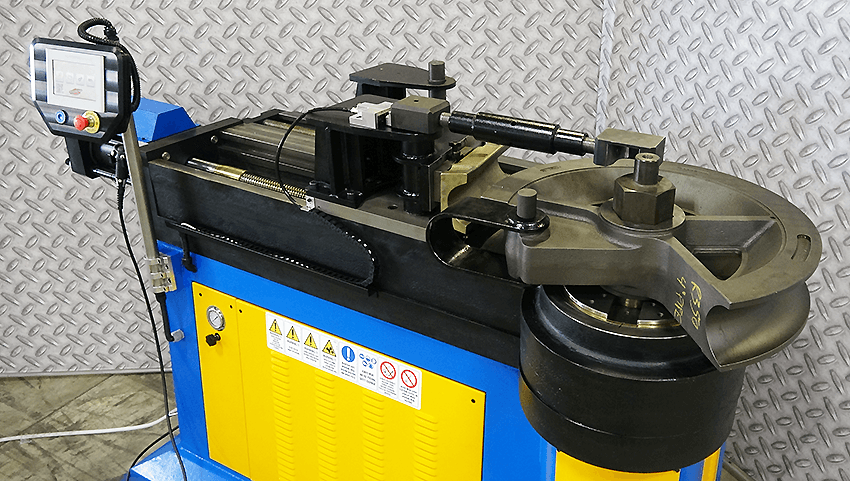

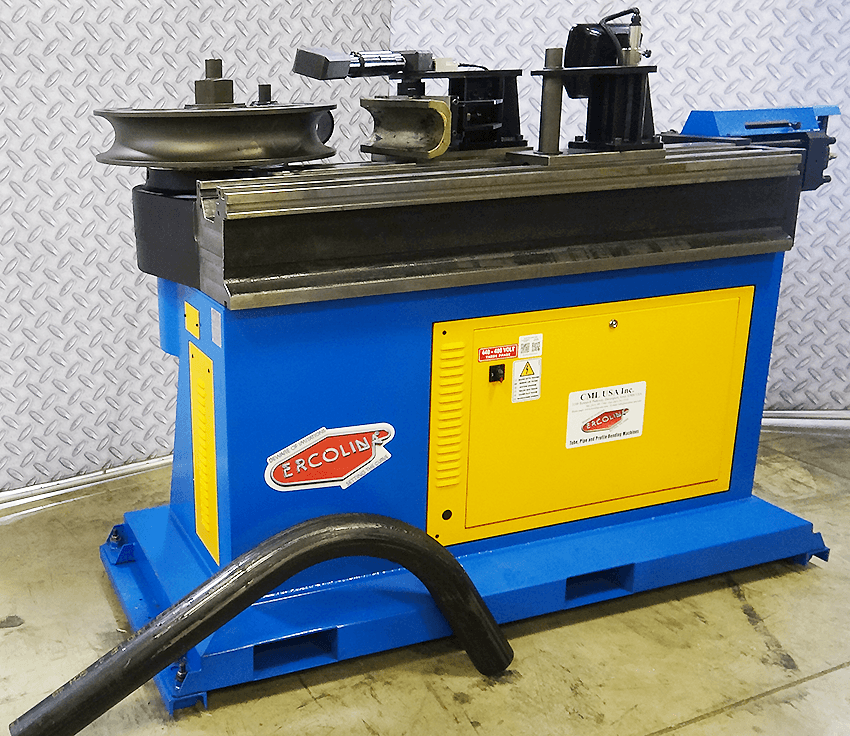

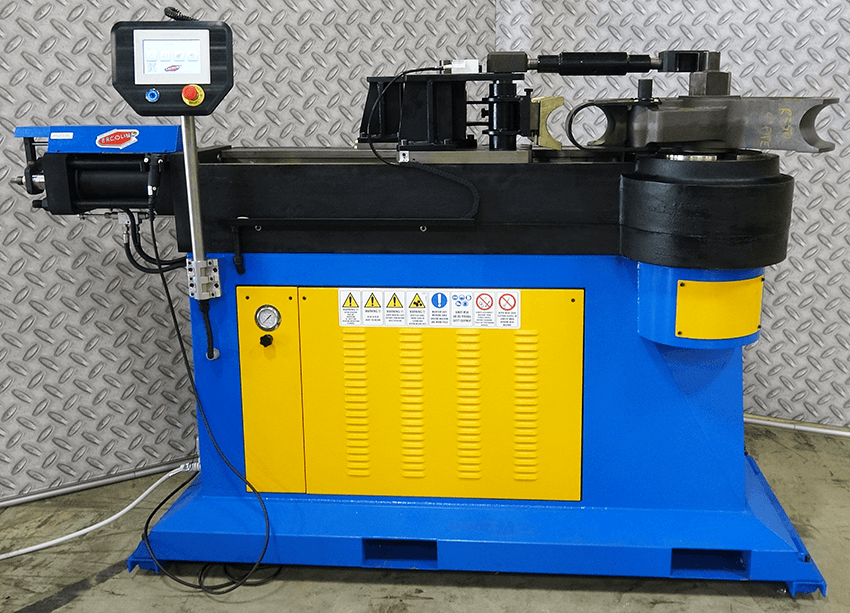

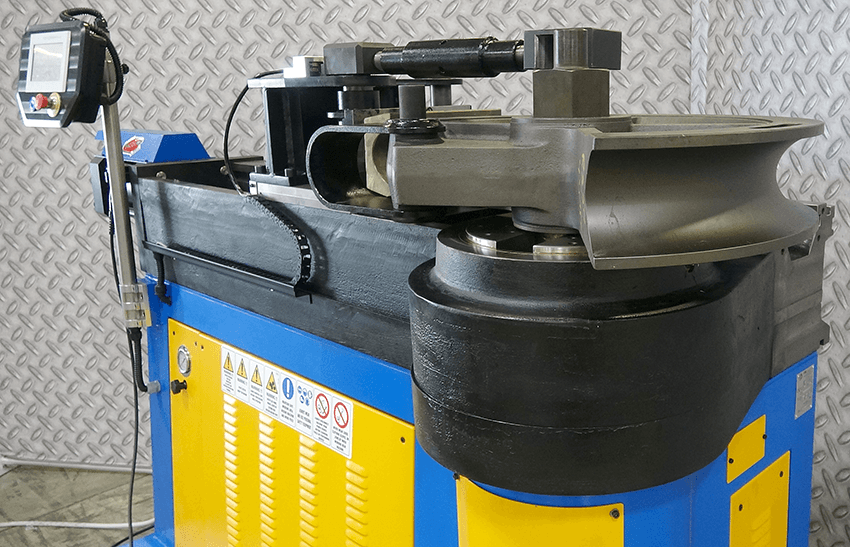

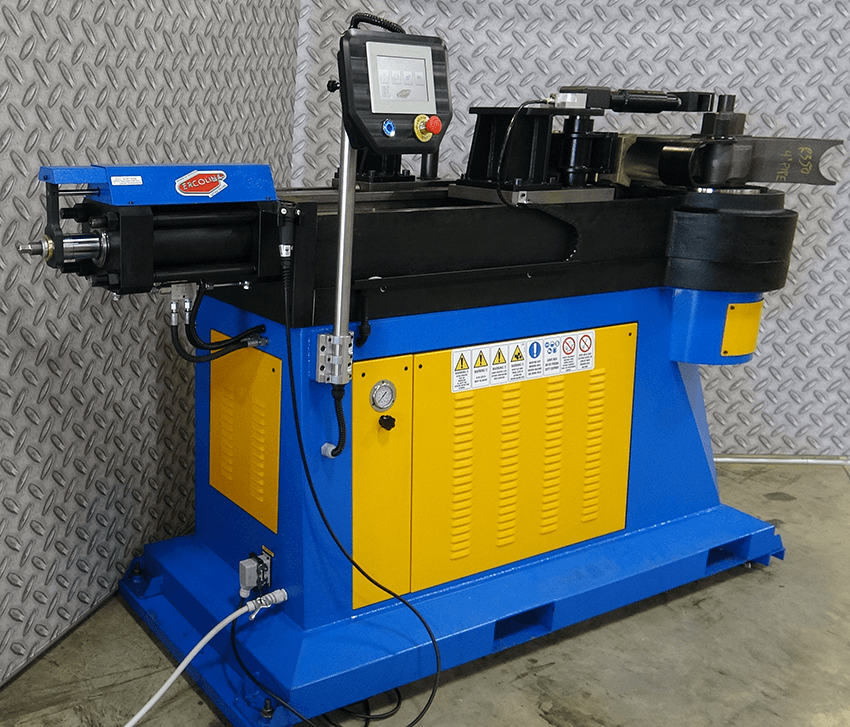

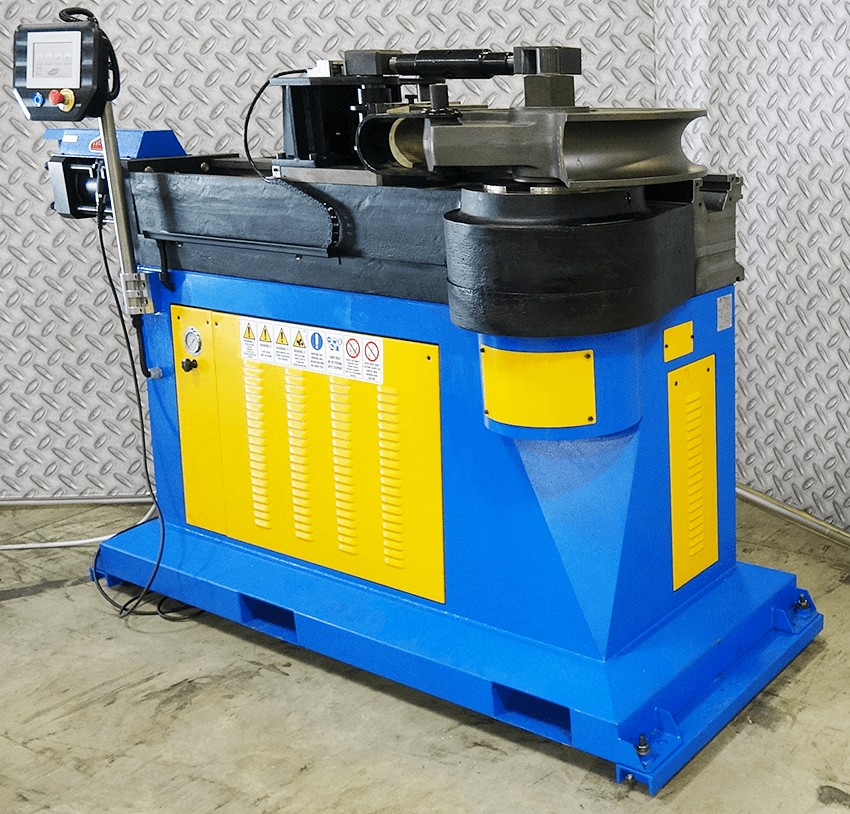

Ercolina TB180 Top Bender is ideal for producing consistent quality bends in larger diameter pipe, tubes, squares, rectangular, solids and other profiles.
Ercolina’s affordable tube benders and fabricating machines are designed to reliably and accurately produce your bending applications. As a result, our machines will increase profit, as well as improve product quality and finish.
| Mild steel tube Capacity | min- 1½″ – 6.7″ CLR / max- 6″ – .120 wall |
| Pipe Capacity | min- 1″ Sch. 40 – 6.7″ CLR / max 6″ Sch. 40 |
| Centerline Radius | min- 3 x Ø or 4.5″ CLR / max- standard machine- 23½″ / max- machine w/case extension- 31½″ |
| Square Tube Capacity | 4″ |
| Degree of Bend | 0-210° |
| Bending Speed | Variable 1 RPM |
| Programming |
Touch screen, Unlimited storage with USB, (12) bends per program |
| Voltage |
480V 3ph |
| Length, Width, Height75″ x 40″ x 59″ | 75″ x 40″ x 59″ |
| Weight | 6000 lbs |
| Drive Diameter |
110mm/130mm |
New Ercolina Non-Mandrel Rotary Draw Top Bender TB180 Features:
- Bend to CLR as small as 3D or 4.5 CLR
- Touch screen programming of bend angle with system diagnostics in multiple languages
- Quick-change tooling system
- Digital display of bend angle
- Material springback compensation
- Hand-held remote control of bend, return and emergency stop functions
- Counterbending die positioning monitored electronically for accuracy and repeatability
- Heavy-duty steel gear case

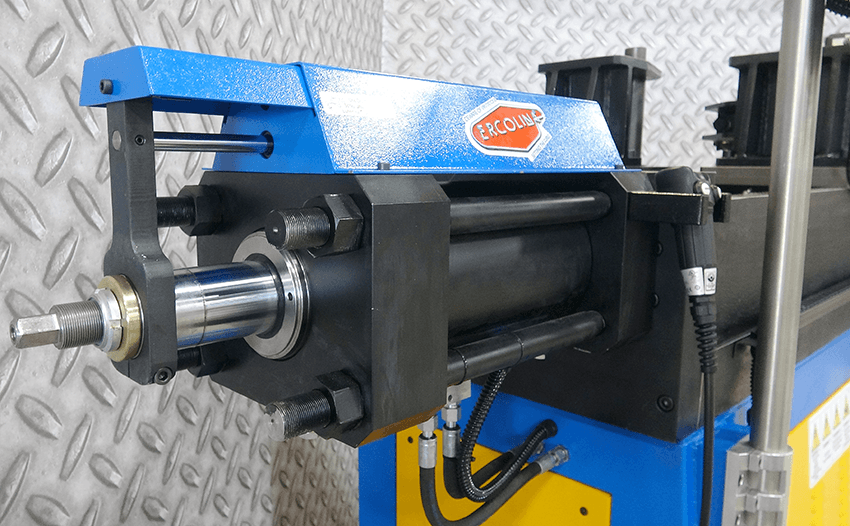

- Optional hydraulic clamping system available
- All capacities based on A53 grade A 48,000 psi tensile materials; heavy wall and high tensile materials reduce machine capacity. Consult supplier for material specifications.
New Ercolina Non-Mandrel Rotary Draw Top Bender TB180 Optional Accessories:
- Spray Bending Lubricant
- Pipe and Tube Tooling Available in 3D and 5D Centerline Radius
- A40/P TWO AXIS POSITIONER
- Super Bend-Tech SE
- Rotary Draw Accessories
