Description
New Ercolina Rotary Draw Medi Bender 070 Specifications:
Ercolina’s portable model 070 Medi Bender is ideal for fabricators and contractors with job site bending applications.
Ercolina’s affordable tube benders and fabricating machines are designed to reliably and accurately produce your bending applications. As a result, our machines will increase profit, as well as improve product quality and finish.
| Mild steel tube Capacity | min- 1/4″ max-1-1/4″ .065 wall |
| Pipe Capacity | 1″ Sch. 10 |
| Centerline Radius | min- 2 x Ø / max- 6-7/8″ |
| Degree of Bend | 0-210° |
| Bending Speed | 2.2 RPM |
| Programming |
Rotary Dial with LED |
| Voltage |
120V 1ph (220v available) |
| Length, Width, Height |
10″ x 13″ x 18″ |
| Weight | 60 lbs |
| Drive Diameter | 40mm |
New Ercolina Rotary Draw Medi Bender 070 Features:
- Bend to CLR as small as 2D
- Rotary dial setting for bend angle and springback
- Patented quick-change tooling system with multiple radii available

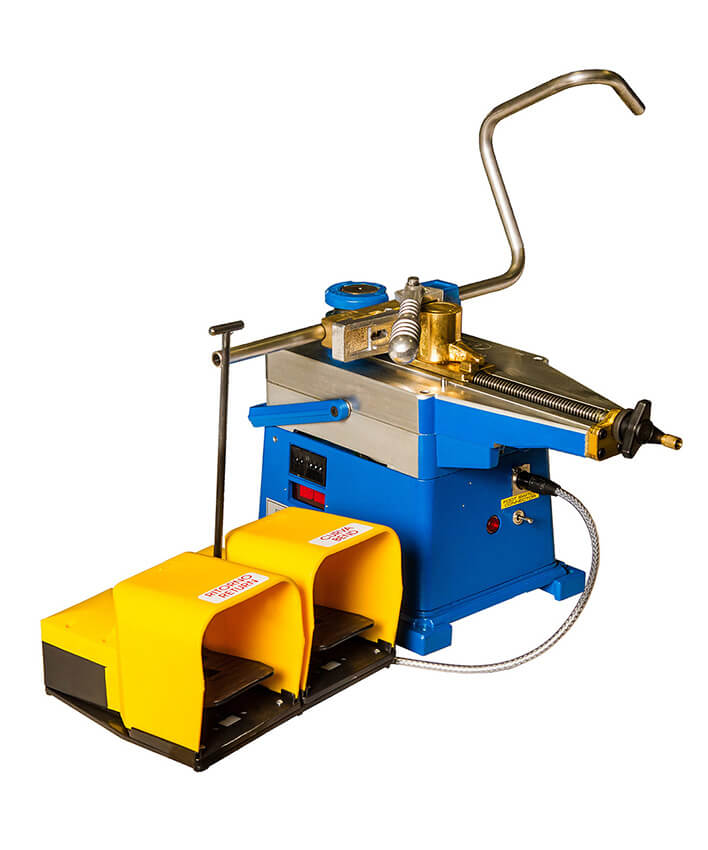

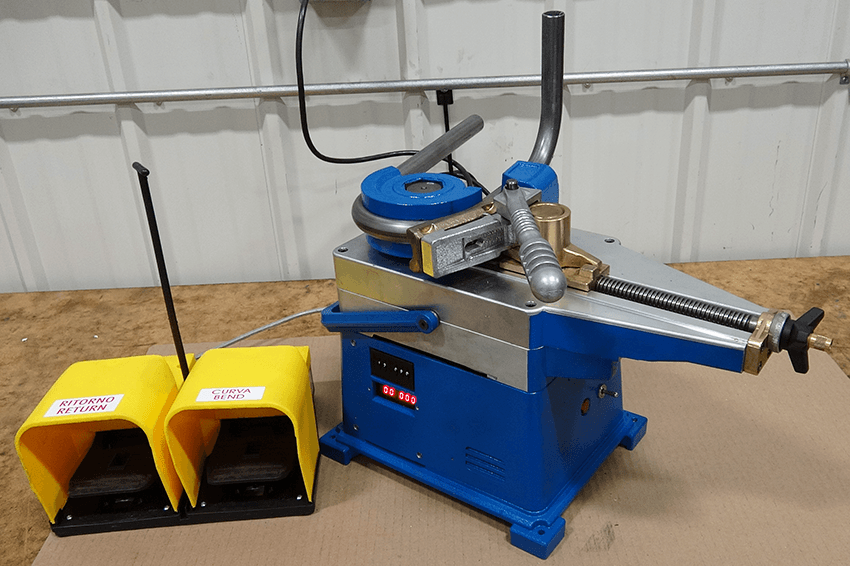

- Remote foot pedal for hands free operation
- Patented swing away counterbending die vise
- No hydraulic components
- Ships with carrying case and tool kit
- All capacities based on A53 grade A 48,000 psi tensile materials; heavy wall and high tensile materials reduce machine capacity. Consult supplier for material specifications.
New Ercolina Rotary Draw Medi Bender 070 Optional Accessories and Kits:
|
OK70- machine with PIPEKIT3 (3) pc tooling set |
$7,400.00 |
|
OK070T-machine with TUBEKIT3 (3) pc tooling set |
$7,400.00 |
|
PIPEKIT3 only |
$2,300.00 |
|
TUBEKIT3 only |
$2,500.00 |
- Spray Bending Lubricant
- Cap Rail Tooling
- Center Former Reinforcement Kit
- Counter bending Die Support
- Roller Counter bending Dies
- Rotary Draw Tie Bar Accessory
- Material Extraction Device For Square Tube
- Counter bending Die Adaptor Plate
