Description

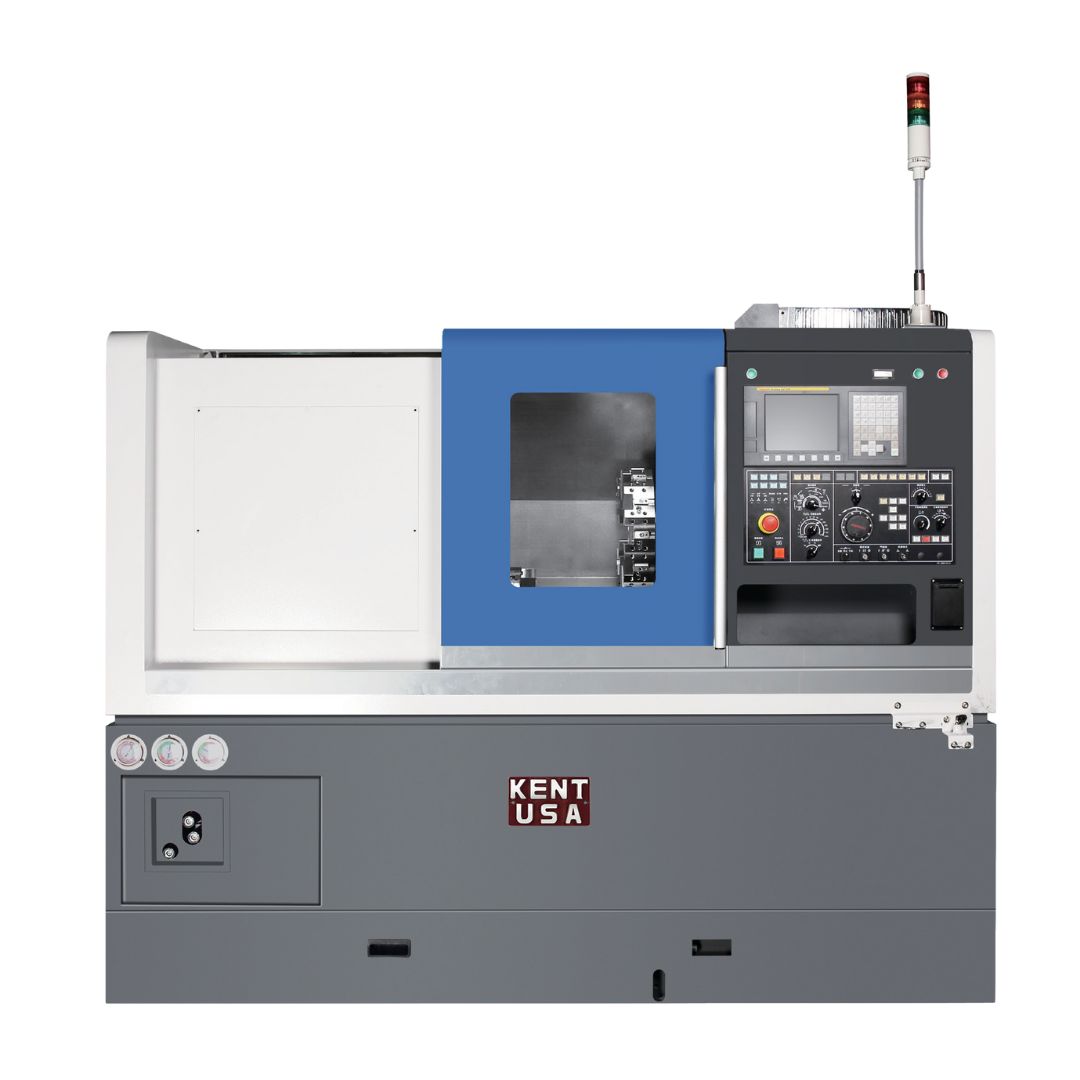

20″ x 15″ New Kent USA 2-Axis CNC Lathe Model KLT-2000 Specifications:
| Controller Type | Fanuc 0i-TF | |
| Swing over Bed | 520 mm (20.5″) | |
| Swing over Saddle | 320 mm (12.6”) | |
| Maximum turning diameter | 300 mm (11.8”) | |
| Maximum turning length | 400 mm (15.7”) | |
| Bed slant angle (box ways) | 45° | |
| Spindle nose taper | A2-6 | |
| Power chuck diameter | 8″ | |
| Spindle speed | 4500 rpm | |
| Spindle motor power | 15 kW (20 hp) | |
| Bar capacity | 51 mm (2”) | |
| Z-Axis Travel | 400 mm (15.7”) | |
| X-Axis Travel | 170 mm (6.69”) | |
| Z-axis rapid feed rate | 30m/min (1181 ipm) | |
| X-axis rapid feed rate | 30 m/min (1181 ipm) | |
| Turret driven type | Hydraulic (Optional Servo) | |
| Number of tool station | 8 (Optional 12) | |
| Square shank tooling size | 25 mm | |
| Round shank tooling size | 32 mm | |
| Tail stock body travel | 200mm (7.87”) | |
| Quill Travel | 150 mm (5.9”) | |
| Quill Diameter | 70 mm (2.75”) | |
| Quill taper | MT 4 | |
| Quill control type | Hydraulic | |
| Tail stock body positioning | Manual | |
| Floor space (Length) | 3.2 m (126”) | |
| Floor space (width) | 1.8 m (71”) | |
| Floor space (height) | 2.3 m (91”) | |
| Weight | 1500 kg (3300 lb) |
20″ x 15″ New Kent USA 2-Axis CNC Lathe Model KLT-2000 Features:
The KENT USA KLT and KTCS series CNC slant bed lathes combine proven machine design with advanced technology in control and manufacturing. Reliability and stability make these a favorite among demanding job shops and in-house productions alike. The heavy-duty turret and rigid machine body structure enable higher turning efficiency with a better finish and longer tool life – resulting in greater productivity and profitability all around. Upgrade your global competitiveness today.
- 8” 3-jaw chuck with 2” bar capacity
-
5” max turning diameter, 15.7” max turning length
-
45° slant bed with one piece Meehanite® casting for superior dampening and stability
-
High grade C3 precision ball screws and pretension for enhanced precision
-
Auto lubrication system metered check valves and piston distributor
20″ x 15″New Kent USA 2-Axis CNC Lathe Model KLT-2000 Standard Equipment and Accessories:
- Fanuc 0i-T CNC control with 10.4” color LCD
- Fanuc i-Series high torque spindle and axis motor with digital drive system
- Fanuc Auto-Measure System (X and Z)
- Fanuc Macro-B and High Speed Skip Function
- Fanuc USB, PCMCIA, Ethernet and RS-232 ports
- Fanuc Manual Guide i – computer assist programming
- Fanuc 400 registered part program numbers and 640M part program memory
- Swivel-Out control panel
- Heat exchanger for electrical cabinet
- Hydraulic power supply unit
- Flood coolant system (4 bar)
- Chain (Hinge) type chip conveyor and chip cart
- Full enclosure and way covers
- Automatic lubrication system
- 3 color stack indicator light
- 8 station heavy duty high precision turret (10/12 station optional)
- Standard soft jaws 3 sets + hard jaws 1 set
- Precision Linear Guideways on X and Z axis
- 45° slant bed with one piece Meehanite® casting
- C-3 grade high precision ball screws
- Facing tool holder (R/H) 25×25 mm 1 set
- Facing tool holder (L/H) 25×25 mm 1 set
- Boring bar holder ø32 mm 4 sets
- Boring bar socket ø32 mm 1 set with 8/10/12/16/20/25 mm
- U-Drill holder ø32 mm
- U-Drill sockets ø32 mm 1 set with 16/20/25 mm
- Drilling sockets ø32 mm MT 1/2/3
- Operator and Maintenance/Parts manuals
