Description

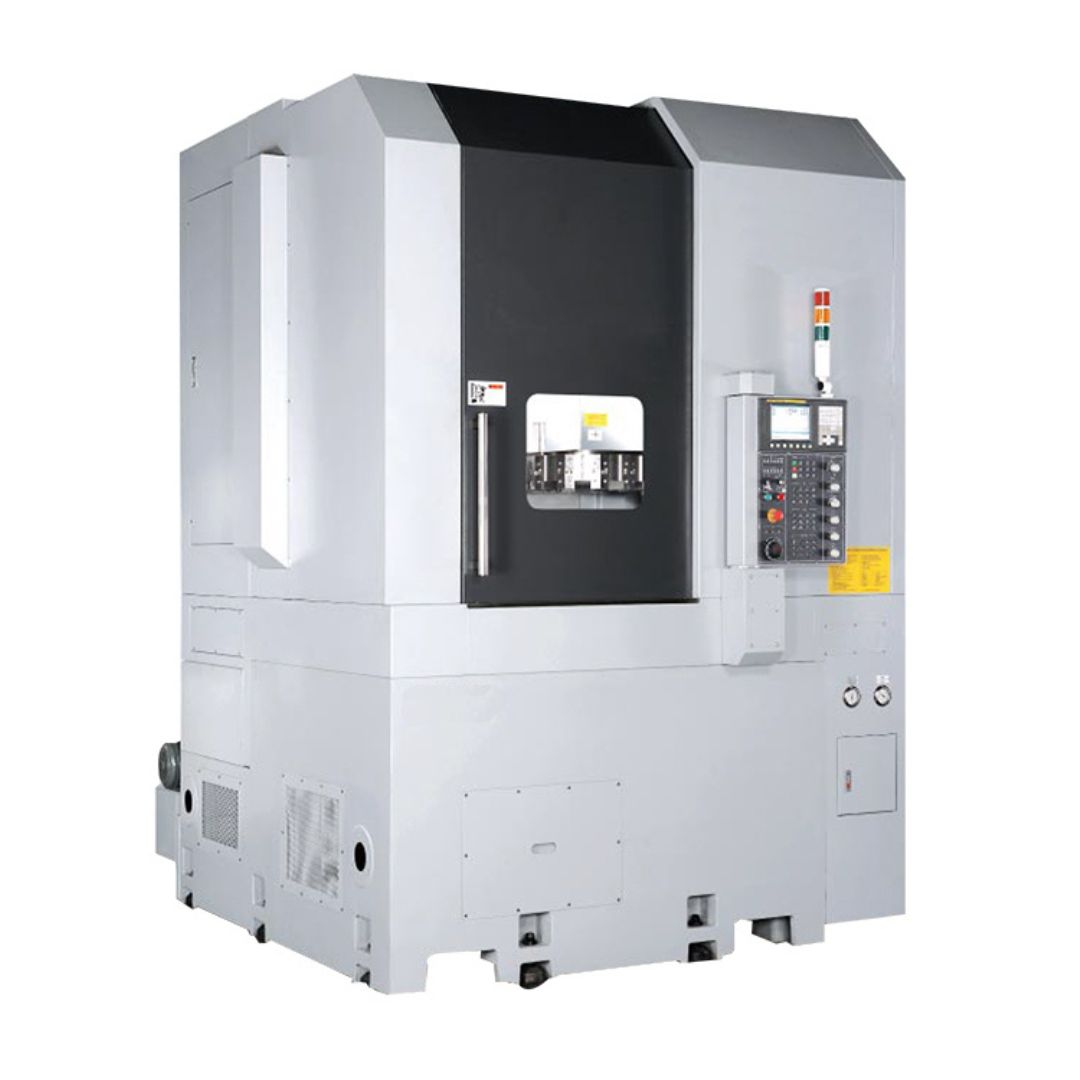

New Kent USA CNC Compact Vertical Turning Center Model KVT-75E Specifications:
| Type | Compact | ||
| Max. Swing | 33.5″ | ||
| Max Turning Diameter | 29.5″ | ||
| Max. Turning Length | 27.5″ | ||
| Spindle Speed | 20 – 1400 rpm | ||
| Spindle Bearing Diameter | 6″ | ||
| Spindle Nose | A2-11 | ||
| Chuck Diameter | 24″ (Opt. 32″) | ||
| Turret Type | Bolt-on Tool / VDI | ||
| Number of Tools | 12 | ||
| Tool Shank Size | 1.25″ / 2″ | ||
| X-Axis Travels | -1.7″ ~ +14.7″ | ||
| Z-Axis Travels | 31.5″ | ||
| Rapid Traverse X-Axis | 0.8 inch/min | ||
| Rapid Traverse Z-Axis | 0.9 inch/min | ||
| Spindle Motor Power | 24 hp / 30 hp | ||
| X-Axis Motor | 5 hp | ||
| Z-Axis Motor | 5 hp | ||
| Hydraulic Motor | 3 hp | ||
| Coolant Pump Motor | 0.7+1.3 hp | ||
| Floor Space (L x W x H) | 137″ x 93″ x 158″ | ||
| Net Weight | 33,069 lbs |
New Kent USA CNC Compact Vertical Turning Center Model KVT-75E Standard Features:
The Kent CNC Vertical Turning Centers combine proven machine design with advance technology in control and manufacturing. A full range of vertical turning lathes, from the small KVT-55E to 100E compact vertical turning centers, is geared for the auto industry and the larger sizes are targeted for the windmill and power industries. The Kent CNC product line covers the 8”, 10”, 12”, 15”, 20” and 24” vertical chucker turning applications. Reliability and performance make this series a favorite among demanding job shops and in-house productions alike. The heavy cutting spindle and rigid machine structure enable higher machining efficiency with better finish and longer tool life – resulting in greater productivity and profitability all around. Upgrade your global competitiveness today.
- Up to 39.3″ max turning diameter and 27.5″ max turning length
- Up to 43.3″ max swing diameter
- Symmetrically designed reinforced headstock
- High precision spindle with dual-roller bearing and self-alignment angular bearings
- High speed and high accuracy 8-station hydraulic turret
