Description

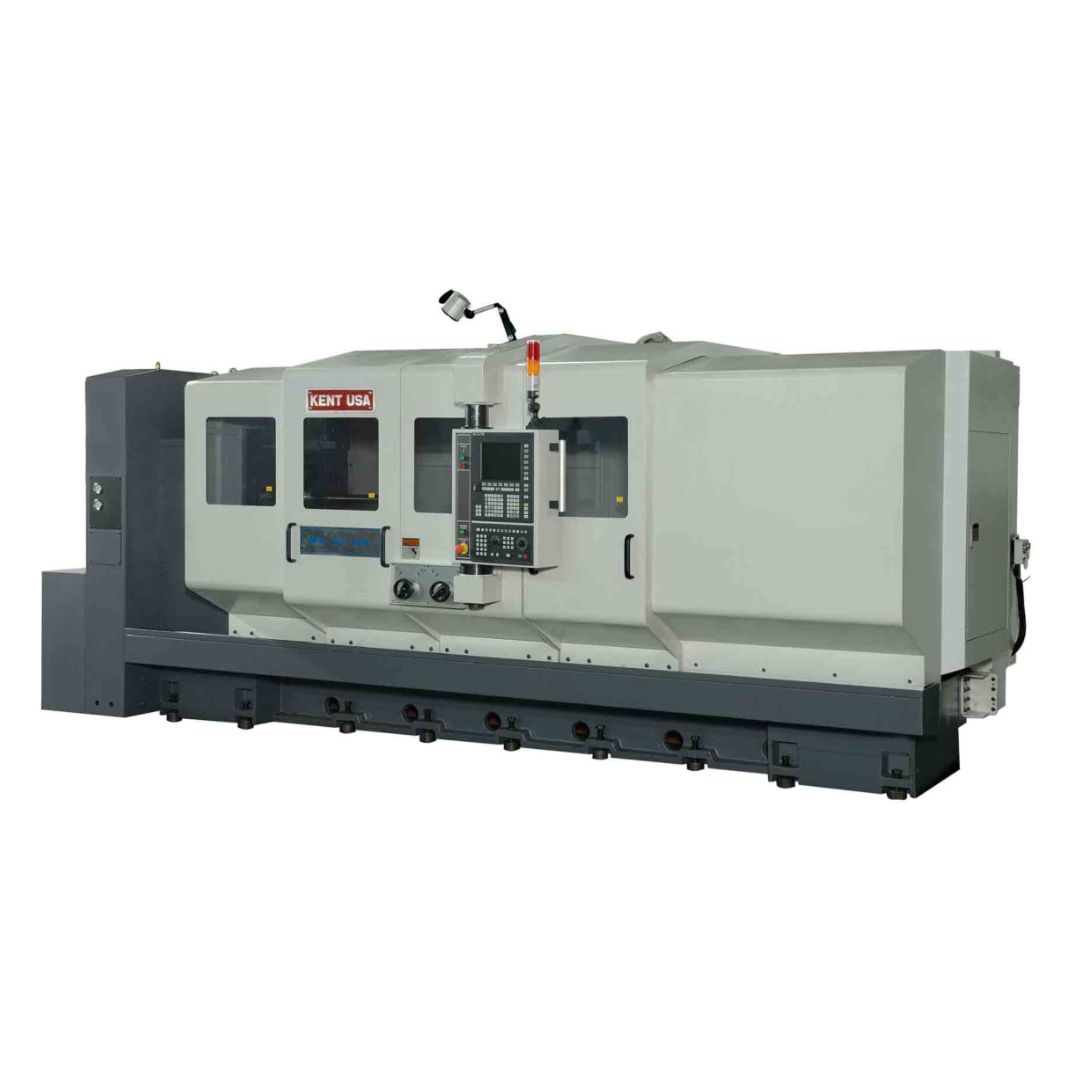

New Kent USA CNC Double Turret Turning Center MA and MA-U Series Specifications:
| Series | MA / MA-U | |
| Swing Over Bed | 30″ | |
| Swing Over Cross Slide | 15.7″ | |
| Center Height | 16.7″ | |
| Width of Carriage | 37.4″ (Box Slide) | |
| Width of Cross Slide | 15.7″ | |
| Control | Fanuc 0i-TF | |
| Width of Bed | 22″ | |
| Bed Way | 3V way with 1 flat way | |
| Spindle Bore | 6″ (8″ or 9″) / 9″ (Opt. 10″ or 12″) | |
| Spindle Nose | A2-11 (Opt. A2-15) / A2-15 (Opt. A2-20) | |
| Spindle Speed | 6-850 RPM (Opt. 5-500 RPM) / 5-500 RPM (Opt. 18-450 RPM) | |
| Spindle Center | MT #6 | |
| Spindle Motor | Fanuc 0i-TF 25/30 HP (Opt. 30/35HP) | |
| Turret Model | Single System with Double Turret, V8-100 on the front H4-250 on the back / Double System with Double Turret, V8-100 on the front, H4-250 on the back |
|
| Tool Size | 1.25″ | |
| Quill Diameter | 5″ + Live Center MT#6 | |
| Quill Traverse | 7.9″ | |
| Tailstock Center | MT#6 | |
| Body Movement | Move by Carriage | |
| Quill Movement | Manual (Opt. Hydraulic) | |
| X-Axis Rapid Traverse | 6M/min | |
| X-Axis Ballscrew Diameter | 40mm x P5 | |
| X-Axis Feed Range | 0.1-3000 mm/min | |
| X-Axis Traverse | 19.7″ | |
| X-Axis Servo Motor | Fanuc 4HP | |
| Z-Axis Rapid Traverse | 1-5M: 6M/min | |
| Z-Axis Ballscrew Diameter | 1-5M: 63mm/min | |
| Z-Axis Feed Range | 0.1-3000 mm/min | |
| Z-Axis Traverse | 39.7″ (Up to 196″) | |
| Z-Axis Servo Motor | Fanuc 5.4HP | |
New Kent USA CNC Double Turret Turning Center MA and MA-U Series Features and Highlights:
The Kent CNC Double Turret Turning Center provides 2 excellent configurations for complex double-spindle turning. The twin turret setup allows for the most efficient utilization of both upper and lower turrets in one compact design. The MA Series Double Turret Mill-Turn Turning Centers are designed for machining complex work-pieces on both ends simultaneously. This allows for enhanced efficiency for mass production runs.
Single Piece Bed Structure
The massive bed is single-piece manufactured from high quality Meehanite cast iron. The bedway is induction hardened to hardness of HRC 52~54 and precision ground for the highest accuracy. In addition, the box type way for cross slide offers more rigidity for heavy cutting. Turcite-B lining is applied on the cross slide and the carriage to reduce friction.
Hydraulic Turret
The standard equipped hydraulic turret can hole up to 8 tools. It features high indexing accuracy, random tool selection and fast tool change. An optional quick-change toolholder can also be equipped. This can accommodate for more tools and faster tool changing, which yields shorter processing times.
Rigid Spindle
All gears are manufactured from high quality nickel chrome-molybdenum alloy steel in combination with a large module design. Our precision lathes are turned for ultimate performance through dynamic balance testing. The spindle is supported by high precision taper roller bearings. Also, an auto-lubrication system is equipped for headstock gears and spindle bearings.
New Kent USA CNC Double Turret Turning Center MA and MA-U Series Standard Accessories:
- Lubrication Pump
- Coolant Pump
- Hydraulic Pump
- Chip Removal System
