Description

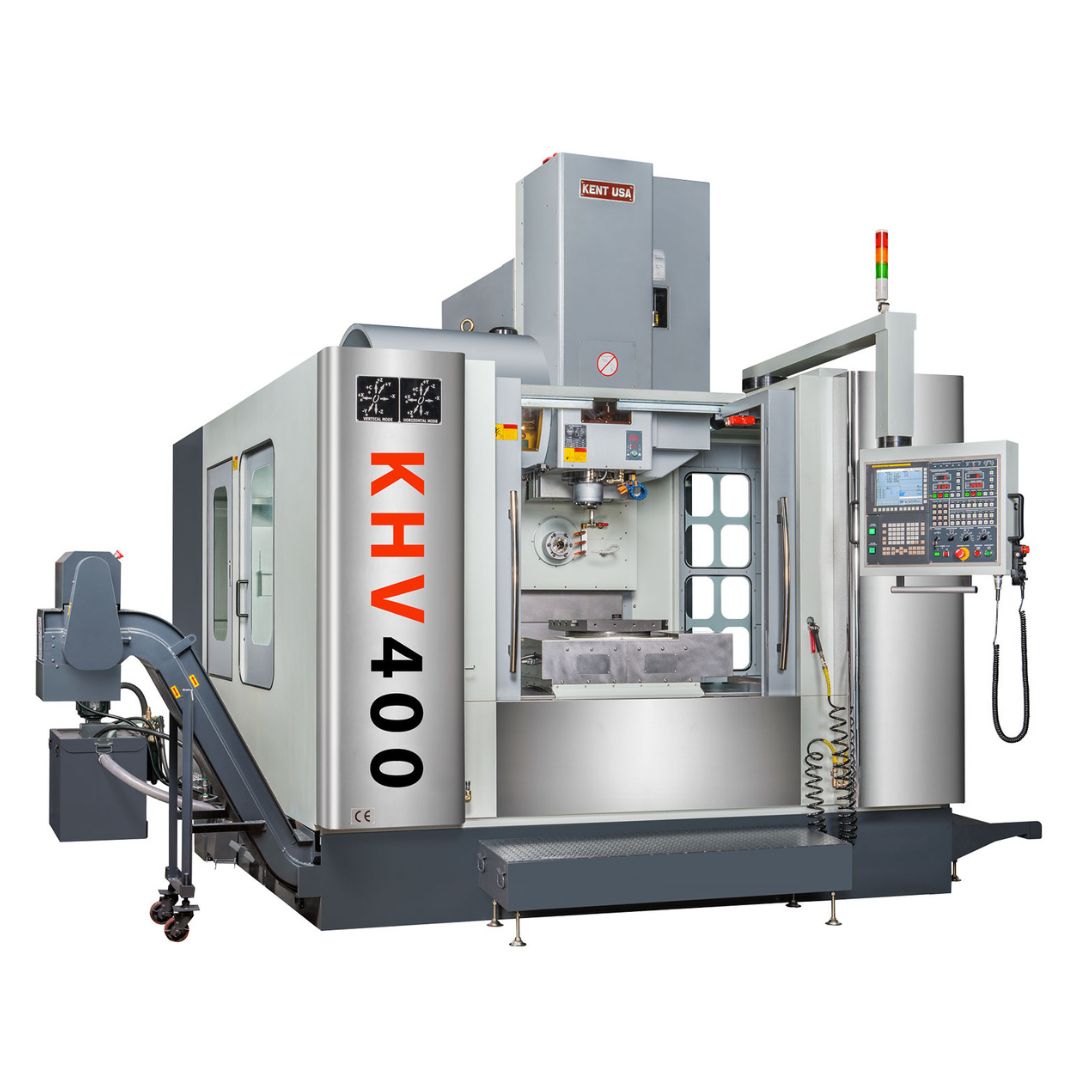

New Kent USA Combination Spindle Machining Center Model KHV-400 Specifications:
| X Axis Travel | 19.7″ | ||
| Y Axis travel – Vertical | 19.7″ | ||
| Z Axis travel – Vertical | 17.7″ | ||
| Y Axis travel – Horizontal | 19.7″ | ||
| Z Axis travel – Horizontal | 17.8″ | ||
| Vertical Spindle center to column | 25.78″ | ||
| Vertical Spindle nose to table top | 4.9″ – 22.6″ | ||
| Horizontal Spindle nose to table center | 4.9″ – 24.6″ | ||
| Horizontal Spindle center to table top | 2.95″ – 20.67″ | ||
| Table height from the floor | 43″ | ||
| Table load capacity | 772 lbs | ||
| Spindle nose (BT / CAT / DIN) | BT40 / CAT40 / ISO40 | ||
| Spindle RPM (Vertical) | 10,000 RPM (Opt. 12,000) | ||
| Spindle RPM (Horizontal) | 10,000 RPM (Opt. 12,000) | ||
| Main motor (cont./ 30min) | 10 HP / 15 HP (Direct Drive) | ||
| A.T.C. Magazine for arm type (H/V) | 24/24 (Opt. 24/40) | ||
| A.T.C. tool diameter | 2.99″/5″ | ||
| A.T.C. tool length | 9.8″ | ||
| A.T.C. tool weight | 15.4 lbs | ||
| Rapid traverse | 32 m / Opt. 48 m | ||
| Cutting feed | 1 – 15000 mm | ||
| Repeatability | ±0.0000787″ | ||
| Rotary table – Table top dimension | 19.68″ x 19.68″ | ||
| Rotary table – T-slots( wide× no.× pitch) | 14H7 x 5 x 80 mm | ||
| Rotary table – Speed reduction ratio | 1:90 | ||
| Rotary table – Min. indexing (degree) | 0.001° | ||
| Rotary table – Max. rotation speed | 33.33 rpm | ||
| Rotary table – Positioning accuracy | 10 seconds | ||
| Rotary table – Repeatability | *** | ||
| Rotary table – Max. load | 772 lbs | ||
| Coolant system | 580 W | ||
| Lubrication system | 25 W | ||
| Air pressure | 85 PSI | ||
| Machine weight | 18739 lbs | ||
| Floor space ( L x W x H ) | 114″ x 106″ x 115″ | ||
| CNC Controller | Fanuc 0i-MF / 32i-MB | ||
New Kent USA Combination Spindle Machining Center Model KHV-400 Standard Features:
Kent USA CNC has introduced the New Kent CNC KHV-400 Combination Horizontal/Vertical Machining Center with the industry standard 0i-MD control by FANUC. Kent CNC sets a new industry standard with their latest combination dual spindle machining center, model KHV-400. By combining a horizontal machining center with a vertical machining center, this cutting-edge versatile machining center allows for faster setups and parts loading and unloading, improved accuracy, floor space maximization, and capital investment reduction.
- Analysis by FEA (Finite Element Analysis)
- Mechanite certified Iron
- Optical scale is equipped for rotary table. (opt.)
- Minimize geometric error for 5 face job.
- Rigid tapping: MI (Metric) or #0-80 (imperial)
- 10,000rpm up Direct drive Spindle.
- Rapid travel 36M/min for each axes. (48M/MIN Opt.)
- Vertical / Horizontal mode is changed automatically.
- 24 tools for each magazine, high tool capacity.
- Reduce work piece upload time, and jig design cost.
- Double chip auger, and fast-return tank, 240L only.
- Floor space is 206cm x 289cm only.
- Shipped by 40’HI-CU / 30% freight saved. KENTUSA
- Five-face job finished in a program
- Compact floor space to save factory building cost.
Two Spindles are Better than One
It includes a powerful 10 HP (Horizontal)/15 HP (Vertical), 10,000 RPM (Opt. 12,000) spindle with Direct Drive Spindle Motor as standard. Both the horizontal and vertical travels are 19.7” X-axis by 19.7” Y-axis by 17.8” Z-axis with fast two-set 24-tool ATC. In addition, the rapid traverse for each axis is 36m/min that is upgradeable to up to 48m/min. The rotary table is equipped with an optical scale.
This Meehanite certified machine allows for five-sided machining in one setup for fast production and accuracy all in a compact floor space of 82” x 114”.
