Description

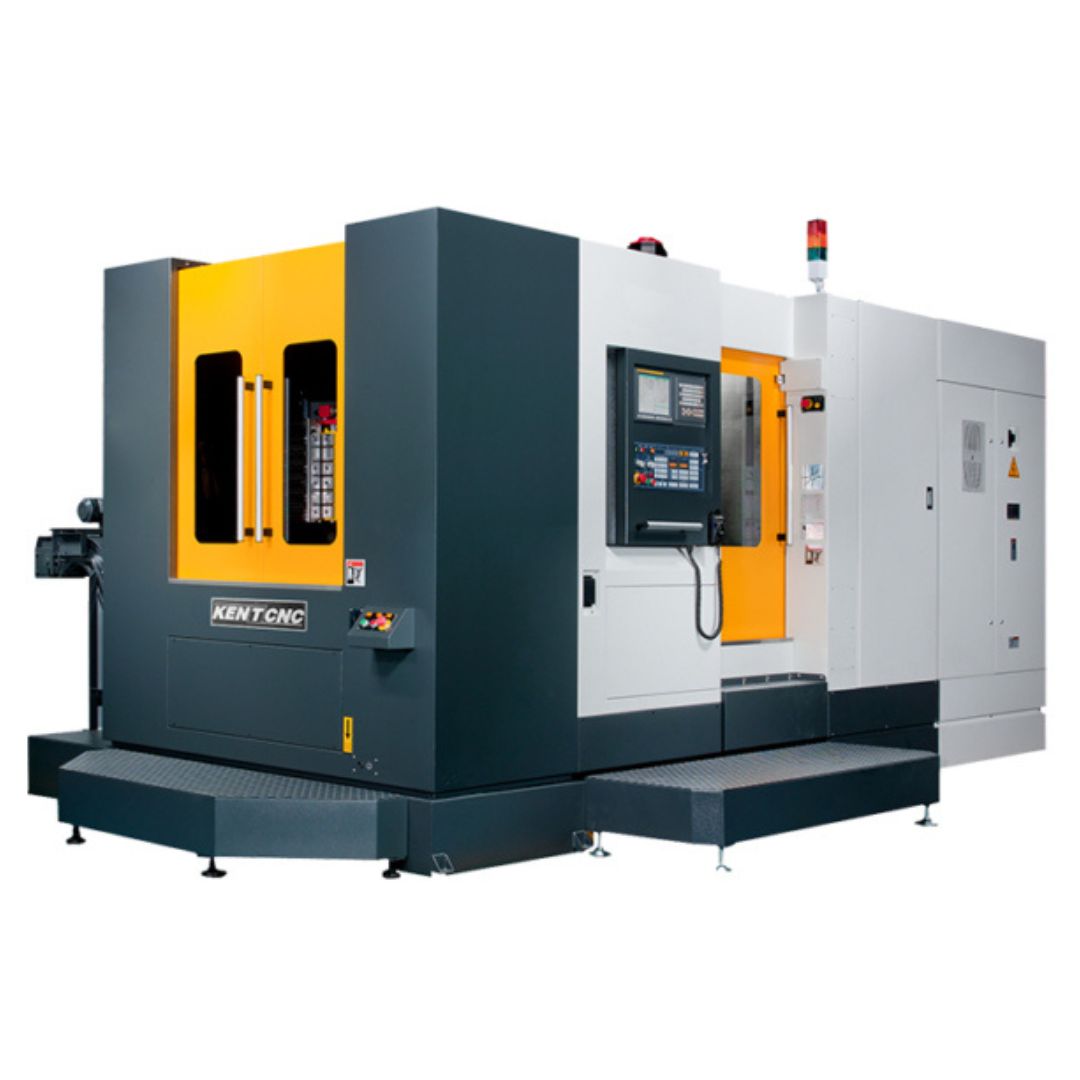

New Kent USA Horizontal Machining Center KMH-630 Specifications:
| Travels (X,Y,Z) | 40.2″ x 33.4″ x 35″ | ||
| Spindle Center to Work Table Surface | 2″-30.5″ | ||
| Spindle Nose to Work Table Center | 7.87″-42.9″ | ||
| Table Surface to Floor | 51.18″ | ||
| Table Size | 24.8″ x 24.8″ | ||
| T-Slot / Bolt Spec. | 24-M16 x p2.0 | ||
| Max. Loading | 2645.6 lbs | ||
| Divide Angle | 1° (Opt. 0.001°/5°) | ||
| Spindle Taper | BT-50 | ||
| Spindle Operation | Gear Head | ||
| Spindle Diameter | Ø 3.93″ | ||
| Spindle Speed | 6,000 RPM | ||
| Spindle Motor (cont/30 min) | 15/18.5 hp (18.5/22 hp) (22/26) | ||
| 3-Axes Cutting Feedrate | 1-6,000M/min | ||
| 3-Axes Rapid Feedrate | 24 (306 Opt.) M/min | ||
| 3-Axes Min. Setting Unit | 0.001mm | ||
| Tool Selection | 40 (60, 90, 120) pcs | ||
| Max. Tool Diameter x Length | Ø 4.9″ x 19.7″ | ||
| Tool Shank | P50T-1 | ||
| Tool Change Time (t–t) | 2.9 (60 HZ) | ||
| Number of Pallets | 2 sec | ||
| Pallet Change Operation | ROTARY | ||
| Pallet Change Time | 10 sec | ||
| Floor Space | 262.4″ x 164.4″ x 142.6″ | ||
| Machine Weight | 59,524 / 68,343 lbs | ||
| Power Capacity | 50 kva | ||
| Shipment Requirements | 40″FR+ 40″HQ |
New Kent USA Horizontal Machining Center APC Series KMH-630 Highlights:
Kent CNC Horizontal Machining Centers with automatic pallet changer are designed for higher efficiency and reliability. With a horizontally oriented spindle, the tool cuts the workpiece on its side. This allows for the chips to fall away from the work table. HMC’s are also designed to be more rigid and with larger tool storage capacities. This design allows for increased repeatability and overall versatility. Horizontal Machining Centers without pallet changers are also available if you are just looking for a more rigid solution over a vertical machining center.
Proven Horizontal Machining Center Design
The Kent CNC Horizontal Machining Center Series with automatic pallet changer combine proven machine design with advance technology in control and manufacturing. Reliability and performance make this series a favorite among demanding job shops and in-house productions alike. The heavy cutting spindle and rigid machine structure enable higher machining efficiency with better finish and longer tool life – resulting in greater productivity and profitability all around. Upgrade your global competitiveness today.
- Travels of up to 60.2″ x 49.2″ x 49.2″
- Up to 31.5″ x 31.5″ rotary table size
- Up to 4,409 lbs work load
- Fanuc 0i-MD controller
- Full package of Fanuc servo system
- X / Y / Z Travel: 1,020 / 850 / 890 mm
- Work Table: 630 x 630 mm
- BT-50 Spindle Speed: 6,000 RPM
- Gear Driven Spindle
- ATC: 60T (90T / 120T Opt.)
- Rotary APC
- Traveling Column construction
- Reciprocating Automatic Pallet Changer
- Roller-type Linear Ways on X, Y, Z-axes
- Full HMC performance Servomotor Package
- 60 / 90 Tool Chain type Magazine (Opt.) (KMH-630 / 800 / 1,000, 60 tools Std.)
- High-torque Performance Gear Head (KMH-630 / KMH-1,000)
- Ball Screw Coolant System
(KMH-630 / KMH-800 / KMH-1,000 Std.)
New Kent USA Horizontal Machining Center APC Series KMH-630 Standard Features:
- Heavy-Duty, integrated table and box type structure provides stability and fully overcomes the “Blind Rigidity” cutting problem.
- Three-axes are mounted with heavy-duty roller type linear guide ways, featuring heavy load resistance and rapid traverse.
- The structural parts are symmetrically constructed and combined with a “V” shaped rib reinforcement that ensures they will remain deformation-free after a long time.
- Structural parts are manufactured from high- quality cast iron, tempered for stress relief.
- Advanced finite element analysis software simulates structural stress. This assures the best possible machine rigidity, stability and dampening capacity.
