Description

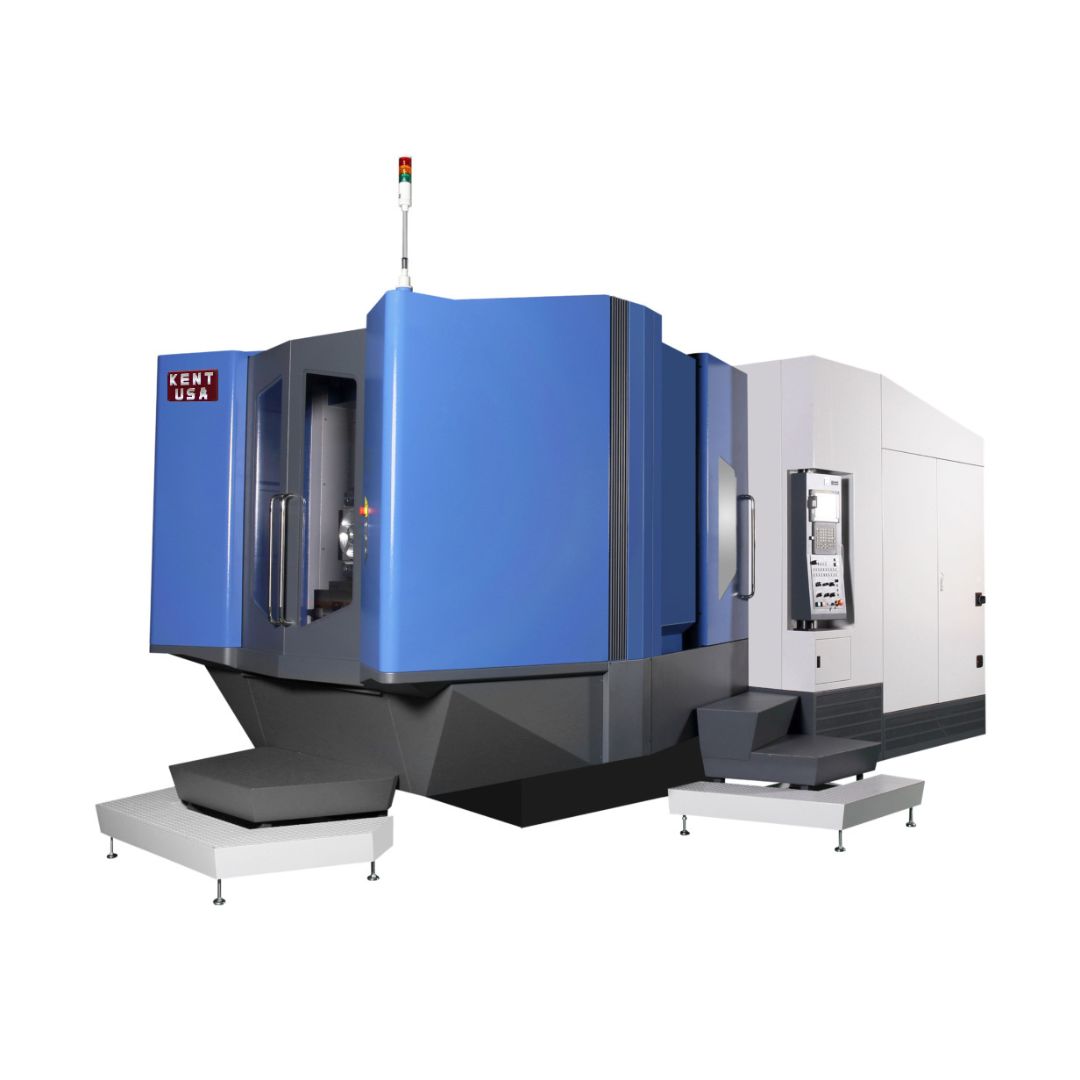

New Kent USA Horizontal Machining Center KHB-800II Specifications:
| Table Size | 31.5in × 31.5in (800mm × 800mm) | ||
| Max. Loading Capacity | 3,960 lbs × 2 (1,800kg × 2) | ||
| Table Height from Floor | 54.8in (1392mm) | ||
| Max. Workpiece Dimension | Ø51.2in × H49.2in (Ø1300mm × H1250mm) | ||
| B Axis Min. Indexing Increment | 0.001° | ||
| Spindle Taper | 7/24 Taper No. 50 | ||
| Spindle Speed | 10,000 rpm (Opt. 8,000 rpm) | ||
| X/Y/Z Axis Travel | 55.1in / 47.2in / 51.2in (1400mm / 1200mm / 1300mm) | ||
| Distance from Spindle Center to Table Surface | 3.9in-51.2in (100-1300mm) | ||
| Distance from Spindle Bearing Nose to Table Center | 5.9in-57.1in (150-1450mm) | ||
| X/Y/Z Axis Rapid Traverse | 164ft/min (50m/min) | ||
| Cutting Feedrate | 0.04-787in/min (1-20,000mm/min) | ||
| Tool Shank | BT-50 (Opt. BBT-50) | ||
| Tool Capacity | 60 pcs (Opt. 90 pcs, 120 pcs) | ||
| Max. Tool Diameter | 4.9in (Ø125mm) | ||
| Max. Tool Diameter (w/o Adjacent Tool) | 9.8in (Ø250mm) | ||
| Max. Tool Length | 24in (610mm) | ||
| Max. Tool Weight | 55 lbs (25kg) | ||
| Spindle Motor | 40.2/33.5 hp (30/25 kW) (Opt. 29.5/24.8 hp (22/18.5 kW) or 34.9/29.5 hp (26/22 kW)) | ||
| X/Y/Z Axis Servo Motor | 9.4/12.1/9.4 hp (7/9/7 kW) | ||
| Machine Dimensions (Width × Depth × Height) | 178.5in × 346.7in × 152.6in (4535mm × 8803mm × 3875mm) | ||
| Machine Weight | 48,501 lbs (22,000kg) | ||
| Controller | Fanuc 0i-MF | ||
New Kent USA Horizontal Machining Center KHB-800II Standard Features:
The KENT CNC KHB Series is built for power and precision, featuring a 10,000 rpm built-in spindle that delivers 310 ft-lb (420 Nm) of torque at 500 rpm, making it ideal for heavy-duty machining of ferrous materials. The B-axis rotary pallet uses a hydraulic locking unit to ensure massive clamping force and machining stability during demanding operations. The index table features a full-circumference hydraulic braking system with a large contact surface, enabling it to withstand high-load, heavy-cutting applications.
Designed with efficiency in mind, the KHB Series comes standard with a high-efficiency automatic pallet changer (APC) to minimize downtime between operations. It’s also compatible with Flexible Manufacturing Systems (FMS), offering scalable automation solutions for advanced production environments. This machine is a strong solution for manufacturers looking for precision, stability, and throughput in demanding metalworking applications.
- X/Y/Z-Axis Travel: KHB-500II – 31.5″ / 28.0″ / 28.0″ (800mm / 710mm / 710mm) | KHB-630 – 41.3″ / 33.5″ / 38.2″ (1050mm / 850mm / 970mm) | KHB-800II – 55.1″ / 47.2″ / 51.2″ (1400mm / 1200mm / 1300mm)
- X/Y/Z-Axis Rapid Traverse: KHB-500II – 2,362 in/min (60m/min) | KHB-630 & KHB-800II – 1,969 in/min (50m/min)Spindle
-
Spindle Speed: 10000 rpm (Opt. 8000 rpm)
New Kent USA Horizontal Machining Center KHB-800II Standard Accessories:
- 10,000 rpm built-in spindle
- Index table for 1°
- Tool Shank BT50
- Angle of BT50 pull stud: MAS407 BTIII (90°)
- C.T.S. pump: 20 bar
- Tool capacity: 60 pcs
- Spindle cooling system
- Automatic pallet changer: Two pallets
- Interior chip disposal: Two chip augers
- Scraper type conveyor
- General lubrication system
- FANUC 0i-MF
- Air gun
- Coolant gun
New Kent USA Horizontal Machining Center KHB-800II Optional Accessories:
- 8,000 rpm gearbox spindle with high torque
- Index table for 0.001° (rotary encoder in B axis is optional)
- Tool Shank: HSK-A100
- Tool Shank: DIN50
- Tool Shank: CAT50
- Angle of BT50 pull stud: MAS407 BTII (60°)
- Angle of BT50 pull stud: MAS407 BTI (45°)
- C.T.S Pump:40 bar
- C.T.S Pump: 70 bar
- Tool Capacity: 90 pcs
- Tool Capacity: 120 pcs
- Hydraulic temperature control system
- Coolant temperature control system
- Air conditioner for electrical cabinet
- Automatic pallet changer: PPL system
- Automatic pallet changer: Flexible manufacturing system (FMS)
- Magnetic scraper type scraper
- Hinge type conveyor
- Drum type conveyor
- Integrated type conveyor
- General lubrication system
- LHL integrated lubrication system
- 5 μm resolution
- 3 μm resolution
- Suspended arm type supply. 6 ports on each side (Max. hydraulic pressure 250bar). Oil from top
- Pallet type, 6 ports on APC side (Max. hydraulic pressure 250bar). Oil from bottom
- Tool breakage detector (installed on tool magazine side)
- Renishaw TS27R contact tool setting probe (installed in the interior of the
- machine for measuring tool length, tool breakage, and tool diameter)
- FANUC 31i-M Controller
- Renishaw OMP60 touch probe
- Air blow
- Oil skimmer
- Oil-mist collector
