Description

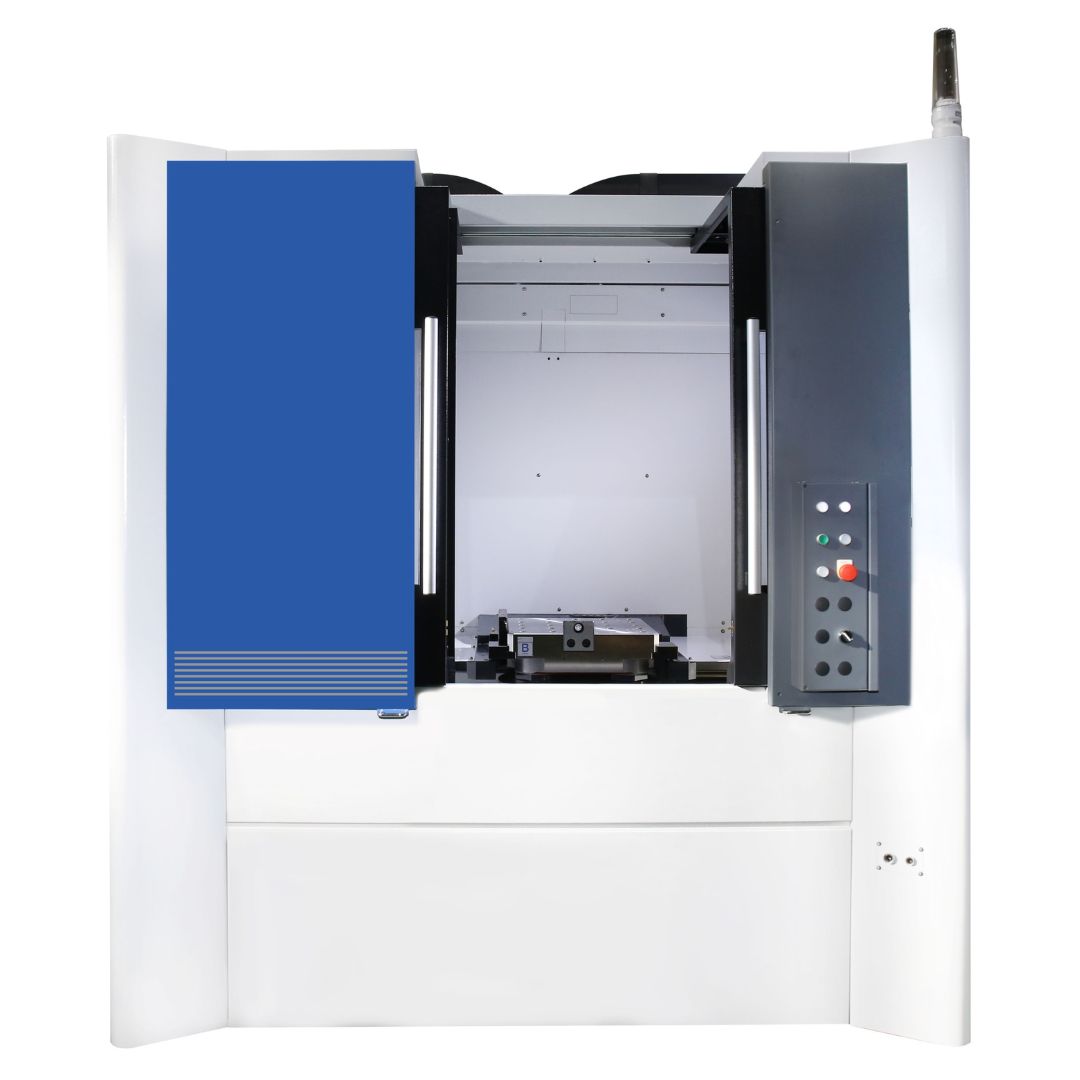

New Kent USA Horizontal Machining Center KTHA-4000P Specifications:
| Table Size | 15.75″ × 15.75″ (Opt. 19.69″ × 19.69″) / 400mm × 400mm (Opt. 500mm × 500mm) | ||
| Max. Loading Capacity | 882 lbs / 400 kg | ||
| Table Height from Floor | 45.28″ / 1150 mm | ||
| Max. Workpiece Dimension | Ø24.80″ × H31.50″ / Ø630mm × H800mm | ||
| B Axis Min. Indexing Increment | 0.01° (1°) | ||
| Spindle Taper | 7/24 Taper No. 40 | ||
| Spindle Speed | 15,000 rpm (Opt. 15,000 rpm or 20,000 rpm) | ||
| X/Y/Z Axis Travel | 24.02″ / 24.02″ / 25.98″ / 610mm / 610mm / 660mm | ||
| Distance from Spindle Center to Table Surface | 3.15″-27.17″ / 80-690mm | ||
| Distance from Spindle Bearing Nose to Table Center | 2.76″-28.74″ / 70-730mm | ||
| X/Y/Z Axis Rapid Traverse | 2,362 in/min / 60m/min | ||
| Cutting Feedrate | 0.04–787 in/min / 1–20,000mm/min | ||
| Tool Shank | BT-40 (BBT-40) | ||
| Tool Capacity | 40 tools (Opt. 60 / 90 / 120 / 240 tools) | ||
| Max. Tool Diameter | 3.15″ / Ø80mm | ||
| Max. Tool Diameter (w/o Adjacent Tool) | 6.69″ / Ø170mm | ||
| Max. Tool Length | 16.14″ / 410mm | ||
| Max. Tool Weight | 22 lbs (Opt. 26.5 lbs) / 10 kg (Opt. 12 kg) | ||
| Spindle Motor | 49.6 / 20.1 HP (Opt. 53.6 / 40.2 HP) / 37/15 kW (Opt. 40/30 kW) | ||
| X/Y/Z Axis Servo Motor | 7.38/7.38/6.03 HP / 5.5/5.5/4.5 kW | ||
| Machine Dimensions (Width × Depth × Height) | 83.46″ × 195.00″ (Opt. 224.67″) × 111.46″ / 2120mm × 4955mm (Opt. 5707mm) × 2831mm | ||
| Machine Weight | 19,841 lbs / 9000 kg | ||
| Controller | Fanuc 0i-MF Plus (Opt. Siemens 840D) | ||
New Kent USA Horizontal Machining Center KTHA-4000P Standard Features:
The KENT CNC KTHA-4000P Horizontal Machining Center is engineered for high-performance machining of cast iron and aluminum alloy parts. It features a 15,000 rpm direct-drive spindle with a 49.6/20.1 hp (37/15 kW) motor output and 183.6 ft-lb (249 Nm) of torque, delivering fast, precise cutting. Optional upgrades include a 20,000 rpm built-in spindle with a 53.6/40.2 hp (40/30 kW) motor.
For table stability during machining, the KTHA-4000P includes hydraulic locking with 14,300 lbs (6.5 tons) of clamping force and a high-precision B-axis rotary table with a low-backlash, high-durability worm drive, enabling accurate and repeatable indexing. The optional Automatic Pallet Changer (APC) further enhances productivity by minimizing part loading and unloading times.
Structurally, the machine uses a double-wall, symmetrical, and honeycomb design, boosting rigidity by 20%, reducing weight by 25%, and minimizing thermal distortion. A stepped bed with roller guideways improves rigidity and saves floor space.
The KTHA-4000P offers a travel stroke of 24.0/24.0/26.0 in (610/610/660 mm) for the X/Y/Z axes, with rapid traverse speeds of 2,362 in/min (60 m/min) and acceleration of 1.0 G. Its three-point support base ensures stable and easy installation.
The machine accommodates workpieces up to Ø24.8 × 31.5 in (Ø630 × 800 mm) and a maximum weight of 882 lbs (400 kg). It offers 0.01° table indexing, a 0.5 sec 90° index time, and 3,690 ft-lb (500 kg·m) of braking torque—ideal for high-precision, high-speed, and heavy-duty machining.
- X/Y/Z-Axis Travel: 24.0/24.0/26.0 in (610/610/660 mm)
- X/Y/Z-Axis Rapid Traverse: 2,362 in/min (60 m/min)
- Spindle Speed: 15,000 rpm (Optional 20,000 rpm)
New Kent USA Horizontal Machining Center KTHA-4000P Standard Accessories:
- Spindle: 15000 r/min
- B-axis: 0.01°NC 0.01°index table (without rotary encoder)
- APC: Single pallet
- Tool Shank: BT40/BBT40
- Tool Capacity: 40 T
- Spindle coolant system
- Heat exchanger for electrical cabinet
- Hinge-type conveyor
- LHL integrated lubrication system
- Controller: FANUC 0i-MF 10.4″(TYP0)
New Kent USA Horizontal Machining Center KTHA-4000P Optional Accessories:
- Spindle: 8000 r/min(Direct-Drive type)
- Spindle: 15000 r/min(Bulti-in type)
- Spindle: 15000 r/min(Bulti-in, High torque)
- Spindle: 20000 r/min
- B-Axis: 1°index table (with rotary encoder)
- APC: Dual pallet
- Tool Shank: CAT40 / DIN / HSKA63
- Tool Capacity: 24 T
- Tool Capacity: 60 T
- Tool Capacity: 90/120/180/240
- Coolant through spindle pump: 20 Bar
- Coolant through spindle pump: 40 Bar
- Coolant through spindle pump: 70 Bar
- Air conditioner for electrical cabinet
- Coolant temperature control system
- 3 axis Coolant temperature control system
- Hydraulic temperature control system
- Scraper type conveyor
- Drum type conveyor
- Integrated type conveyor
- Automated lubricant system
- Positioning accuracy system: X/Y/Z
- Positioning accuracy system: B
- Tool measuring system: TS27R_RENISHAW
- Tool measuring system: TK91A_BK MIKRO
- Tool measuring system: OMP60_RENISHAW
- Tool measuring system: RMP60_RENISHAW
- Factory intelligent manufacturing system: TIMS/TLM
- Factory intelligent manufacturing system: Thermal Displacement Compensation
- Automation: PPL
- Automation: FMS
- Controller: FANUC 0i-MF 10.4″(TYP1)
- Controller: FANUC 0i-MF 15″
- Controller: FANUC 31I
- Controller: SIEMENS 840D
