Description

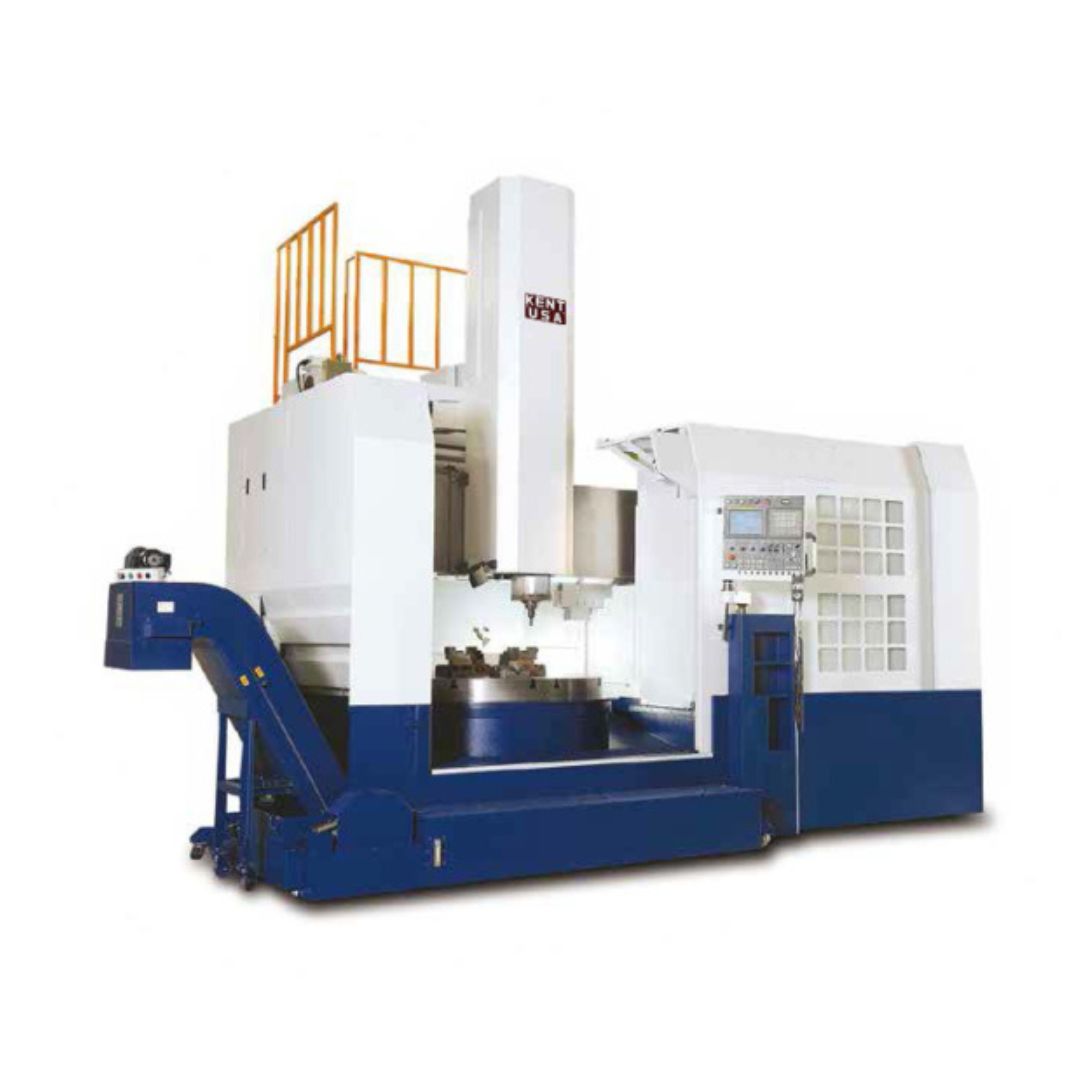

New Kent USA Large Heavy Duty Vertical Turning Center Model KVL-125C/CM Specifications:
| Model/Description | KVL-125C/KVL-125CM | ||
| Max. Swing Diameter | 63″ (1600 mm) | ||
| Max Turning Diameter | 63″ (1600 mm) | ||
| Distance Tool Holder to Table | 25–57″ (650–1450 mm) / 25–56″ (635–1435 mm) | ||
| Max. Turning Height | 47″ (1200 mm) / 46″ (1170 mm) | ||
| Max. Workpiece Weight | 11023 lbs (5000 kgs) | ||
| Table Diameter | 49″ (1250 mm) | ||
| Table Speed Range | 1–300 RPM | ||
| Gear Box | 2-step | ||
| Live Tool Spindle Speed | — / 50–2250 RPM | ||
| ATC (Tool Changer) | 12 / 16 | ||
| Tool Size | ⌀0.98″, ⌀1.26″ (⌀25 mm, ⌀32 mm) | ||
| Tool Arm Cross-Section | 8.66″ × 8.66″ (220 mm ×220 mm) / 9.84″ × 9.84″ (250 mm × 250 mm) | ||
| Rapid Rate X | 393″ (10 mm) | ||
| Rapid Rate Z | 393″ (10 mm) | ||
| Horizontal Travel X | -7.9″ to +37.4″ (-200 mm to +950 mm) / -7.9″ to +45.3″ (-200 mm to +1150 mm) | ||
| Vertical Travel Z | 35.4″ (900 mm) | ||
| Cutting Feed Rate | 0.04–197 ipm (1–5000 mm/min) | ||
| Feed Override | 0–150% | ||
| Cross-rail Travel | 31.5″ (800 mm) (200 x 4 steps) | ||
| Control System | Fanuc 0i-T | ||
| Spindle Motor | AC 49.6 HP / 61.5 HP (AC37/45) | ||
| Feed Motor (X/Z) | 9.4 HP / 9.4 HP (7.0 KW / 7.0 KW) | ||
| Live Tool Motor | — / 14.8/20.1 (AC11/15) | ||
| Power Requirement | 75 / 90 | ||
| Floor Space (LxW) | 257.5″ × 199.3″ (6540 mm × 5065 mm) / 271.3″ × 199.3″ (6890 mm × 5065 mm) | ||
| Max. Height (H) | 209.8″ (5330 mm) / 262.6″ (6670 mm) | ||
| Net Weight | 54,013 lbs (24,500 kgs) / 55,777 lbs (25,300 kgs) |
New Kent USA Large Heavy Duty Vertical Turning Center Model KVL-125C/CM Standard Features:
The KVL Large Heavy Duty Vertical Turning Lathe Series is engineered with high-grade Meehanite casting for both the column and bed, featuring a rigid box-type structure that minimizes vibration and ensures long-term machine stability.
Designed with box ways, this model offers exceptional rigidity and stability, delivering high machining efficiency even when working with tough materials. It’s an ideal solution for demanding applications in industries such as aerospace, defense, automotive, and energy.
With over 35 years of machine design and manufacturing expertise behind its development, the KVL Vertical Turning Lathe Series reflects a legacy of precision, efficiency, and reliability. Innovative features—such as the patented Solid Lock Clamping System and the Roller Gear Transmission System—set new standards in performance.
The design also supports custom configurations, from specialized jigs and fixtures to robotic automation, helping manufacturers meet unique production challenges and boost productivity
New Kent USA Large Heavy Duty Vertical Turning Center Model KVL-125C/CM Standard Accessories:
- Complete splash guard (Top open)
- Hydraulic power unit
- Table with manual 4-jaw chuck as spec
- Protection door
- Automatic lubrication system
- Working light
- Warning light (R/Y/G)
- Workpiece counter (CNC controller)
- Coolant system with tank
- Coolant bed wash down system
- Heat exchanger for electrical cabinet
- Hand tool sets with toolbox
- Leveling bolts & seat pads
- Chip conveyor (Hinge type)
- Chip trolley
- Spindle orientation
- Manual of operation & maintenance
- Manual of electrical & hydraulic circuit diagram
New Kent USA Large Heavy Duty Vertical Turning Center Model KVL-125C/CM Optional Accessories:
- Hydraulic chuck & cylinder, size selections
- Hard jaw for hydraulic chuck
- Hydraulic chuck soft jaw
- High & low pressure chucking
- Air conditioner for electrical cabinet (Standard for CM series)
- Power transformer
- Oil skimmer (Disk type)
- Tool holder base
- Other tool holder & special tool holder
- Tool presetter
- Workpiece probe
- Linear encoder of X/Z axis
- Lubricant chiller for spindle bearing & gear
- Extend vertical travel (Z axis)
- Extend higher column
- High-pressure coolant through tool holder
- Dual speed gearbox for live tool spindle
- Chip conveyor (scraper type)
- Manual Guide I
- CE certificate
- Tooling
- Jig & fixture
- Turnkey project
- Siemens controller
- Grinding function
