Description

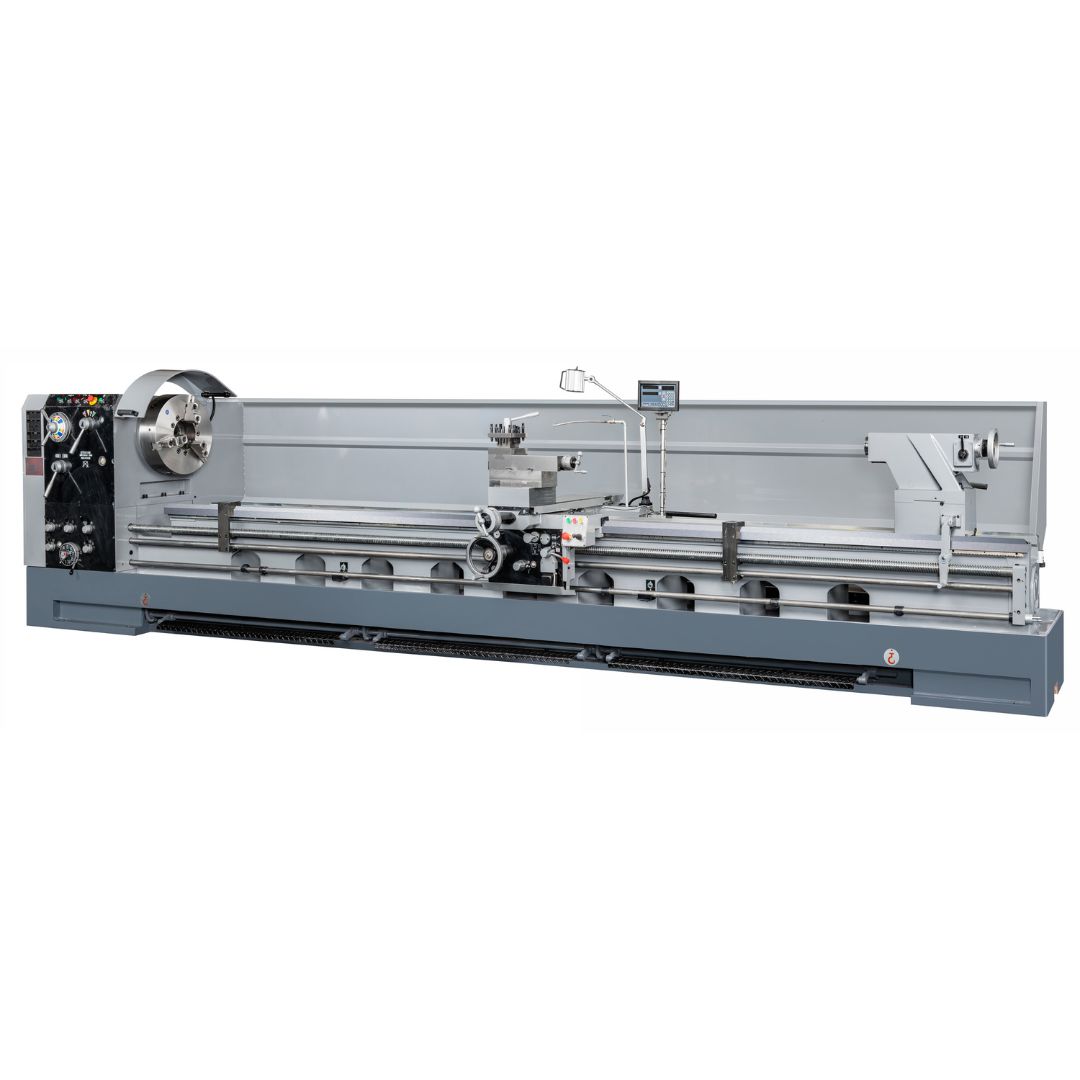

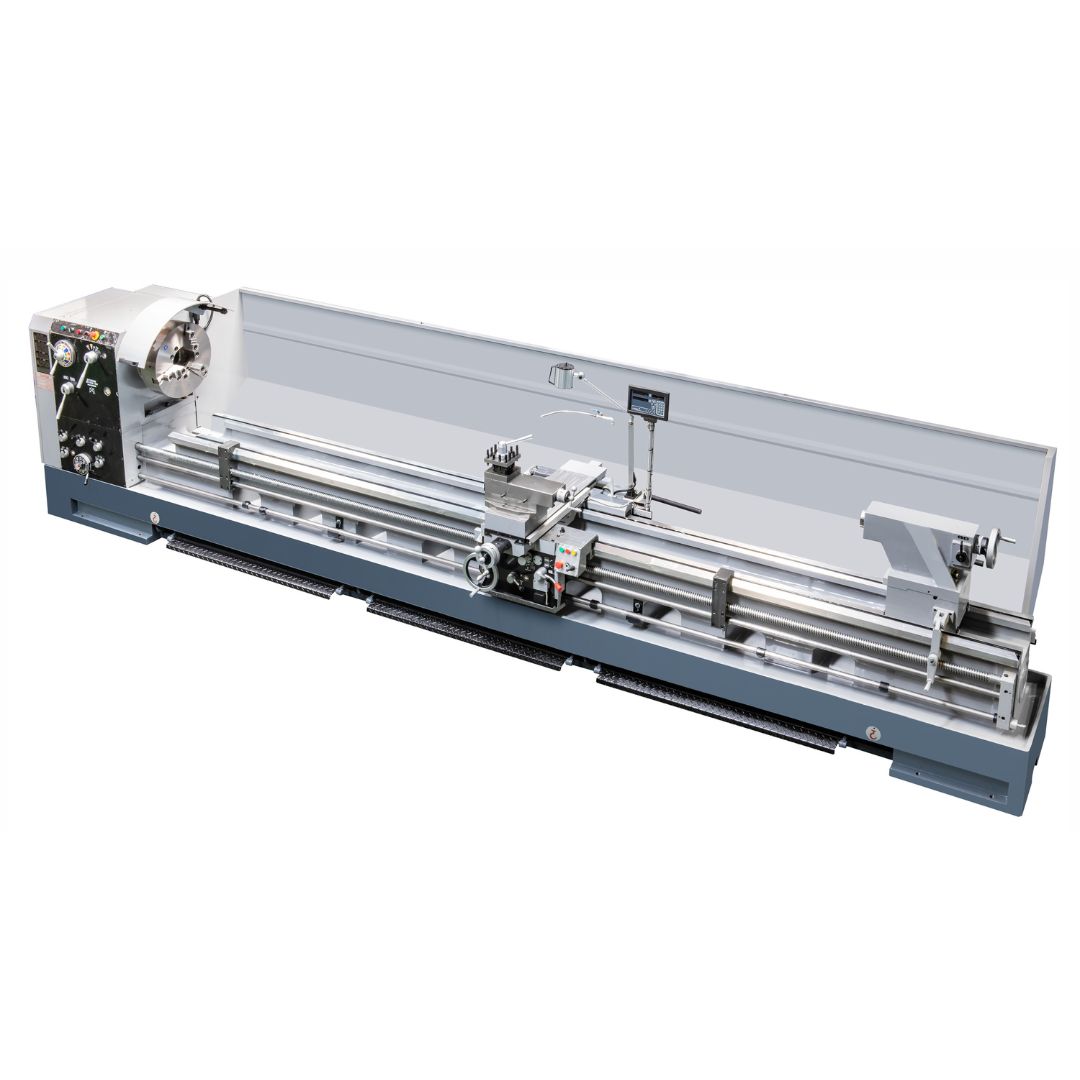

New Kent USA Lathe Model HR-35 Series Specifications:
| Swing Over Bed | 34.6″ | |
|---|---|---|
| Swing Over Cross Slide | 25.2″ | |
| Swing Over Gap | 46″ | |
| Width of Bed | 19″ | |
| Distance Between Centers | 120″ (Opt. 80″ / 160″ / 200″) | |
| Cross Slide Travel | 17.32″ | |
| Top Slide Travel | 9.4″ | |
| Spindle Bore | 4.1″ (Opt. 6.1″) | |
| Spindle Speeds | 12 | |
| Spindle Speed Range | 14-1000 RPM | |
| Through Hole Diameter | 4.1″ (Opt. 6.1″) | |
| Spindle Nose | D1-11 or A1-11 | |
| Spindle Bore Taper | MT#7- MT#5 | |
| Thread – Standard (Whit-worth) | 45 (2-72) TPI | |
| Thread – Metric Pitch | 39 (0.2-14) mm | |
| Longitudinal Feed | 0.002″–0.0276″ in/rev | |
| Cross Feed | 0.001″–0.00138″ | |
| Quill Travel | 12″ | |
| Quill Diameter | 4.133″ | |
| Quill Bore Taper | MT#6 | |
| Main Motor | 20 HP | |
| Coolant Pump Motor | 1/8 HP | |
| Packing Dimension | 198″ x 69″ x 73″ |
New Kent USA Lathe Model HR-35 Series Features:
- 20 HP Spindle Motor, 12-Speeds
- 4.1” (6.1” Opt)Spindle Through Hole
- Solid One Piece Full Length Casting Base and Bedways for Maximum Rigidity
- Spindle Jog Button Control
- One-shot Lubrication for Apron, Multi-position Adjustable Feed Position Stops
- Dual Inch/Metric Calibrated Tailstock Quill with Knockout Tang; Heavy Duty Two Speed Tailstock
- Dual Inch/Metric Dials (Optional)
New Kent USA Lathe Model HR-35 Series Standard Accessories:
- 3-position carriage stop
- 4-position tool post
- Steady rest
- Halogen work light
- Thread chasing dial
- Coolant system
New Kent USA Lathe Model HR-35 Series Optional Accessories:
- Digital Readout System
- Chuck cover
- 4-jaw independent chuck
- Face plate
- Royal spindle type live center
- Taper turning attachment
- BTC 3-jaw chuck with back plate
- Micrometer carriage stop
- Rustlick coolant
