Description

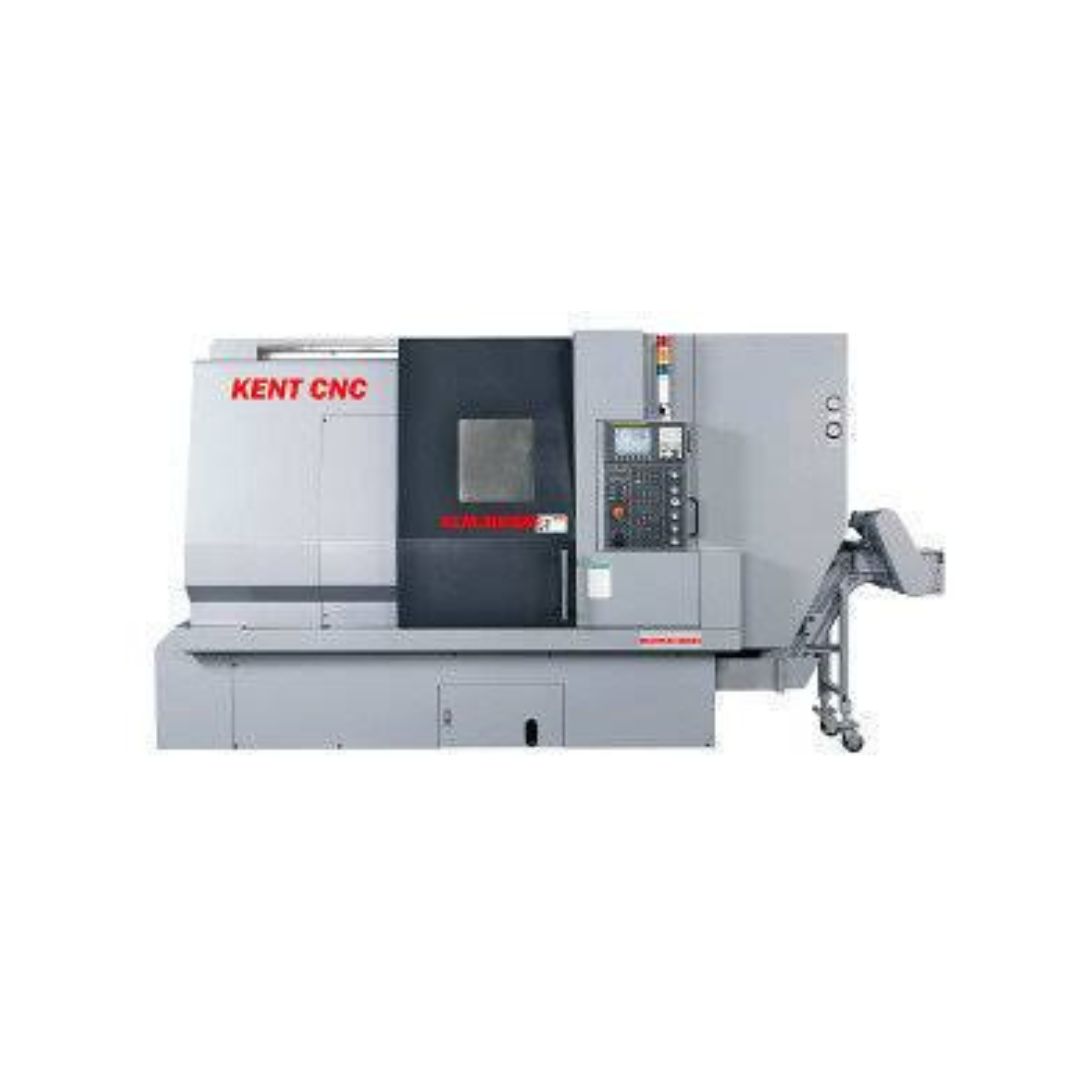

New Kent USA Sub-Spindle Horizontal Turning Center Model KLM-300SM Specifications:
| Swing Over “Z” Cover | 24″ | |
| Swing Over “X” Cover | 15″ | |
| Max Turning Diameter | 16.5″ | |
| Max Turning Length | 24″ | |
| Spindle Through Hole (Main / Sub) | 2.95″ / 1.77″ | |
| Chuck (Main / Sub) | 10″/ 6″ | |
| Max cutting diameter (Main spindle) | 17″ | |
| Max cutting diameter (Sub-spindle) | 15″ | |
| Max cutting length | 24″ | |
| Main Spindle Nose | A 2-8 | |
| Main Spindle bearing inner diameter | 5.1″/ 5.5″ | |
| Main Spindle Power chuck diameter | 10″/ 12″ | |
| Main Spindle Speed | 3500 rpm/ 2700 rpm | |
| Main Spindle Drive Power | 20hp/ 25hp | |
| Main Spindle Bar capacity | 3″/ 3.5″ | |
| Subspindle Spindle Nose | A 2-5 | |
| Subspindle Power chuck diameter | 6″ | |
| Subspindle Spindle Speed | 6000 rpm | |
| Subspindle Drive Power | 7hp/ 10hp | |
| Subspindle Bar Capacity | 1.7″ | |
| Travel (Z axis) | 30″ | |
| Travel (X axis) | 12″ | |
| Travel (B axis) | 28″ | |
| Rapid traverse Z axis feed | 94″ | |
| Rapid traverse-X/B axis Feeds | 79″/min | |
| Tool Turret Type | APT/VDI | |
| Number of Tools | 12 | |
| Tool size square | 0.039″ | |
| Tool size boring bar | 1.6″ | |
| Cs spindle index angle | 0.015 degrees | |
| Max, rotary tool speed | 4000 rpm | |
| Rotary tool driver power | 4hp/ 5hp | |
| Floor space required | 118″x75″ | |
| Height | 79″ | |
| Weight | 13,007 lbs |
New Kent USA Sub-Spindle Horizontal Turning Center Model KLM-300SM Features:
The Kent CNC sub-spindle multitasking horizontal turning centers combine proven machine design with advance technology in control and manufacturing. Kent CNC dual spindle horizontal turning centers can help you turn your parts faster and more efficiently. Learn how our Kent CNC KLR and KLM series dual spindle horizontal turning centers can increase your profitability. Reliability and performance make this series a favorite among demanding job shops and in-house productions alike. The heavy cutting spindle and rigid machine structure enable higher machining efficiency with better finish and longer tool life – resulting in greater productivity and profitability all around. Upgrade your global competitiveness today.
- Up to 16.5″ max turning diameters and up to 24″ max turning length
-
Symmetrically designed reinforced headstock for main & sub
-
High precision spindle with dual-roller bearing and self-alignment angular bearings
-
3 soft jaw sets and 1 hard jaw set each spindle
-
Fanuc “i” series high torque spindle and axis motors
