Description
Kent USA Wire EDM Submerge Type are excellent at maintaining stable part and lower arm, fixture and worktable temperatures and thus resulting in straighter, more accurate cuts. These EDMs are the way to go if you are looking for minimal noise and wire breakage and effective higher taper cutting. Kent USA Wire EDM Submerge Type can machine workpiece sizes of 22″ x 18.5″ x 4.5″ to 39.4″ x 28″ x 13.6″, axes loads of up to 22.05 lbs, and water tank capacity of up to 248.3 gallons. All Kent USA Submerge Type Wire EDMs are backed by our 15-month warranty.
New Kent USA Wire-Cut Submerge Type EDM Model WSi-530 Specifications:
| Max Work Piece Size | 37” x 22.4” x 11.6” | |
| Max Work Piece Weight | 2205 lbs | |
| Drive & Servo | 5 axes AC servo | |
| Simulation Axis | X / Y / U / V (4 axes) | |
| X/Y-Axis Travel | 19.7” / 11.8” | |
| Z-Axis Travel | 11.8″ | |
| U/V-Axis Travel | 3.93” / 3.93” | |
| Wire Diameter Range | Ø 0.1~0.3 mm | |
| Max Taper Angle | ± 22.5° 3.93” | |
| Max Axes Load | 22 lbs | |
| Conductivity | Automatic | |
| Water Tank Capacity | 248 Gallons | |
| Net Weight | 7385 lbs | |

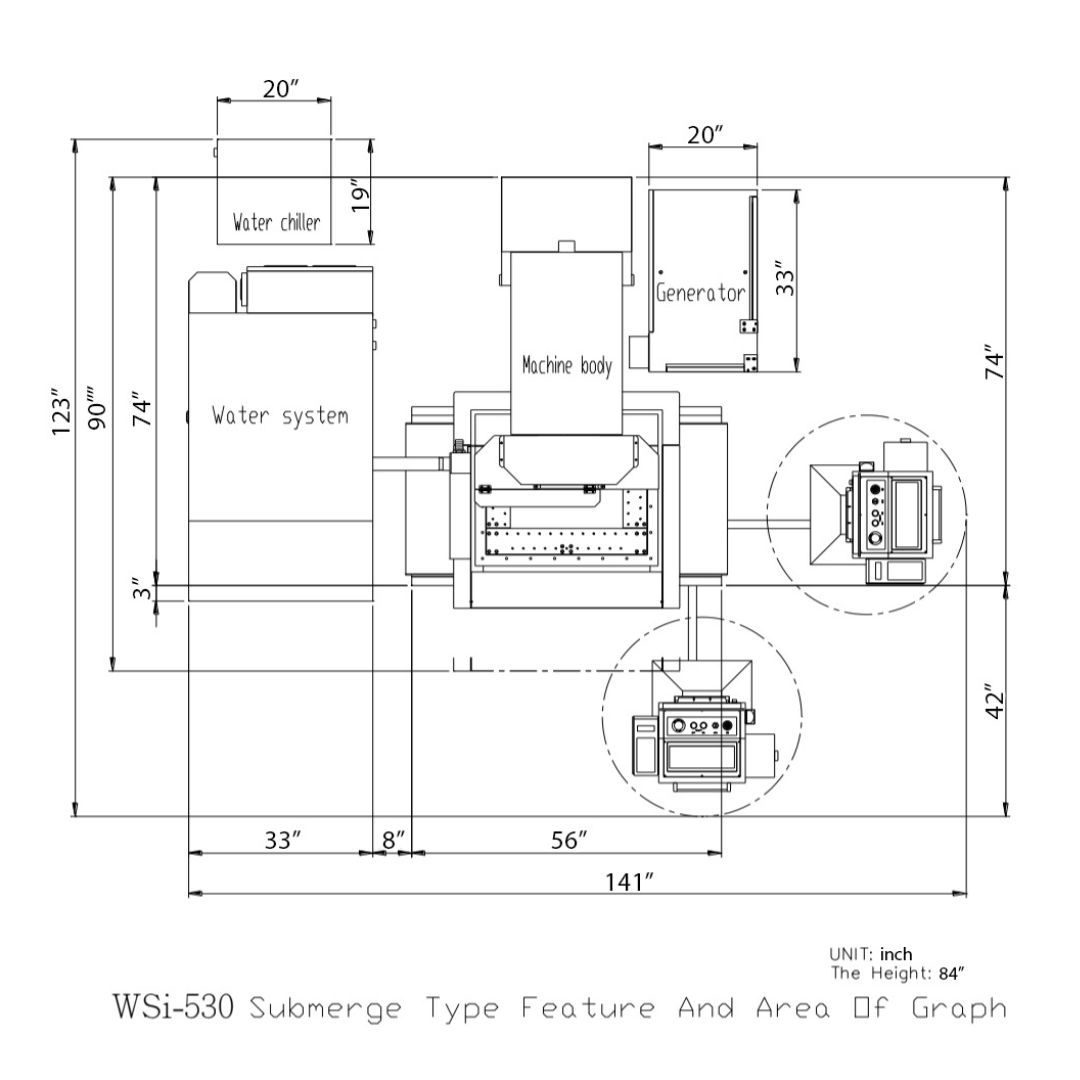

| Dimensions | 139.7 x 102.4” x 88.2” |
New Kent USA Wire-Cut Submerge Type EDM Model WSi-530 Standard Features:
- Machine structure designed and analyzed by CAE system for high structural rigidity.
- U, V, Z axis strategically placed on upper column for enhanced spindle rigidity and precision.
- Magnet power clutch wire-receiving systems.
- ATW auto threading wire system
- Permanent generator control system for wire tension stability
- Accurate linear guide ways coupled with patented linear and block design
New Kent USA Wire-Cut Submerge Type EDM Model WSi-530 Optional Features:
- Diameter guide upper + lower (0.25 mm)
- CAD/CAM Software
- Water chiller
- Power regulator / 15 kva
- Parallel bar – for setting the work piece
- Filter (2 pcs)
- Resin / 5L
- Brass Wire 0.25 mm / 3 kg
- Power feed contact (2 pcs)
- Water resistance meter
- Wire tension meter
- Wire speed meter
- Water nozzle (upper/lower)(2 pcs) / 1 set
- 22.5 degree water nozzle / set (upper/lower + diameter guide)
