New NMS300 Newall Digital Readout Package

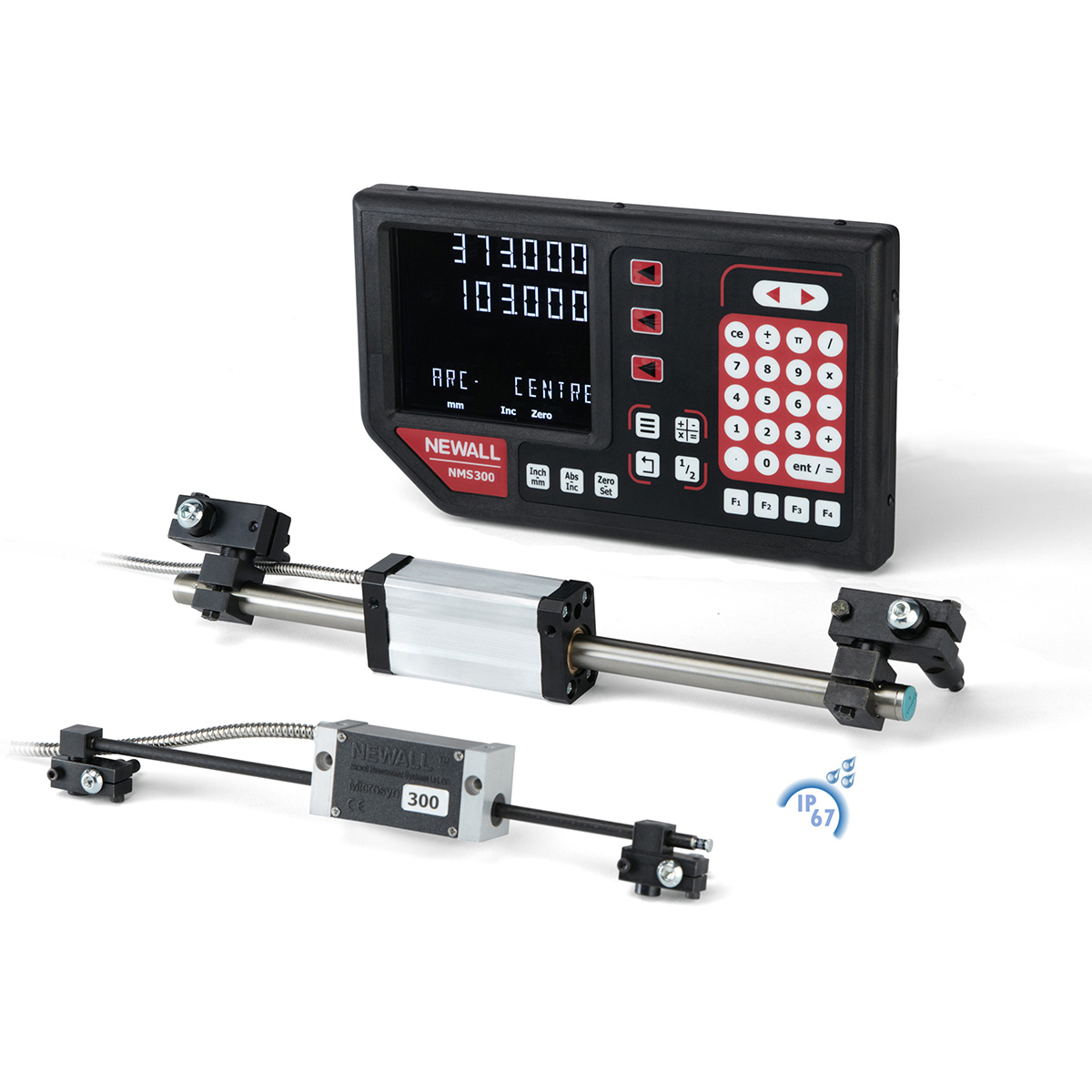

Newall’s NMS300 Digital Readout System sets the standard for reliability, value and ease of use. Specifically designed to be partnered with machine tool builders and importers,the NMS300 DRO System includes Newall’s Spherosyn300 and Microsyn300 encoders.

Price On Request Based On Travel Size

F.O.B. Factory



SKU: 25519 Category:

Description

Newall’s NMS300 Digital Readout System sets the standard for reliability, value and ease of use. Specifically designed to be partnered with machine tool builders and importers,the NMS300 DRO System includes Newall’s Spherosyn300 and Microsyn300 encoders. Newall’s inductive encoders are simple to install and designed to provide consistent accuracy and reliability even under the harshest work shop conditions.

NMS300 Digital Readout Package for sale at Worldwide Machine ToolNew NMS300 Newall Digital Readout ADVANTAGE

  • Backed by a company with nearly 50 years of proven quality in manufacturing DRO systems & linear encoders
  • Reliable and dependable inductive encoder technology
  • Encoders carry an IP67 rating – All electronic and measuring components are sealed from the environment
  • No glass to break or scratch
  • Continually provides accurate readings even under the harshest work shop conditions
  • No cleaning or maintenance required
  • Tolerant to shock and vibration
  • Easy to install—No backer bar or machined surface needed
Display
  • FSTN LCD screen – 94m x 110mm— Membrane keypad with audible tactile feedback
Common Functions
  • 2 or 3 Axes configuration
  • Multiple language support
  • Four user definable function keys
  • Absolute / Incremental operation
  • Axis Pre-set / Zero reset
  • Inch/mm conversion
  • Linear and segmented error compensation
  • Digifind/Reference mark
  • Centre find
  • Programmable memory (200 per axis)
  • Built in calculator
  • Undo function
Milling Specific Functions
  • Bolthole Circle / PCD Calculations
  • Line Hole Calculations
  • Arc Contouring
  • Pocket Milling
Lathe Specific Functions
  • Radius/Diameter Readings
  • Tool Offset Library (50)
  • Taper Calculation
Construction
  • High impact ABS front panel, powder coated steel rear housing
Dimensions
  • Height: 160mm (6.3”), Width: 270mm (10.63”), Depth: 38.20mm (1.5”)
Electrical Requirements
  • Voltage of 100-240 VAC (47 – 63 Hz) to external PSU included

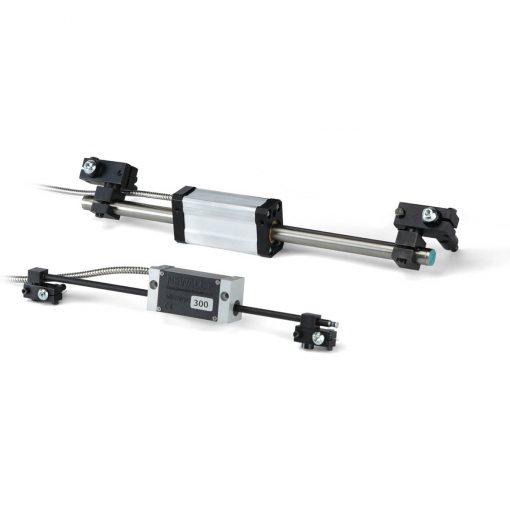

Encoder Mechanical Specs.
Spherosyn300
  • Scale Travels 52mm—3200mm 50mm—1000mm
  • Scale Diameter / Material 15.25mm / stainless steel 5.75mm / carbon fibre
  • Reader Head Dimension 99.45mm x 47mm x 30.5mm 75mm x 35mm x 25mm
  • Overall Scale Length Travel length + 258mm Travel length + 173mm
  • Standard Cable Length 3.5 metre and/or 7.0 metre with Armour and D Style Connector
Microsyn300
  • Scale Travels 52mm—3200mm 50mm—1000mm
  • Scale Diameter / Material 15.25mm / stainless steel 5.75mm / carbon fibre
  • Reader Head Dimension 99.45mm x 47mm x 30.5mm 75mm x 35mm x 25mm
  • Overall Scale Length Travel length + 258mm Travel length + 173mm
  • Standard Cable Length 3.5 metre and/or 7.0 metre with Armour and D Style Connector

New NMS300 Newall Digital Readout Package Features

  • Lathe and Mill specific functions
  • Panel mount option
  • Selectable resolutions
  • Global technical support
  • User definable function keys
  • Custom mounting brackets available
  • Custom labelling, setup and display message available

ALL NMS300 PACKAGES INCLUDE EVERYTHING REQUIRED FOR A COMPLETE INSTALLATION:

  • NMS300 DRO (2 or 3 axes)
  • Spherosyn300 and/or Microsyn300 assemblies with armoured cables
  • Scale bracket kit and hardware
  • Reader head mounting brackets and hardware*
  • Display mounting arm and hardware*

Panel Mounting (Optional)

The NMS300 is available in a panel mount configuration. The unique mounting design was specially engineered to make for a clean, seamless look. The bracket design allows for a one-person installation when mounting the DRO to the panel. Panel cutout dimension: 120mm x 210mm +/-2.5mm.
