Description

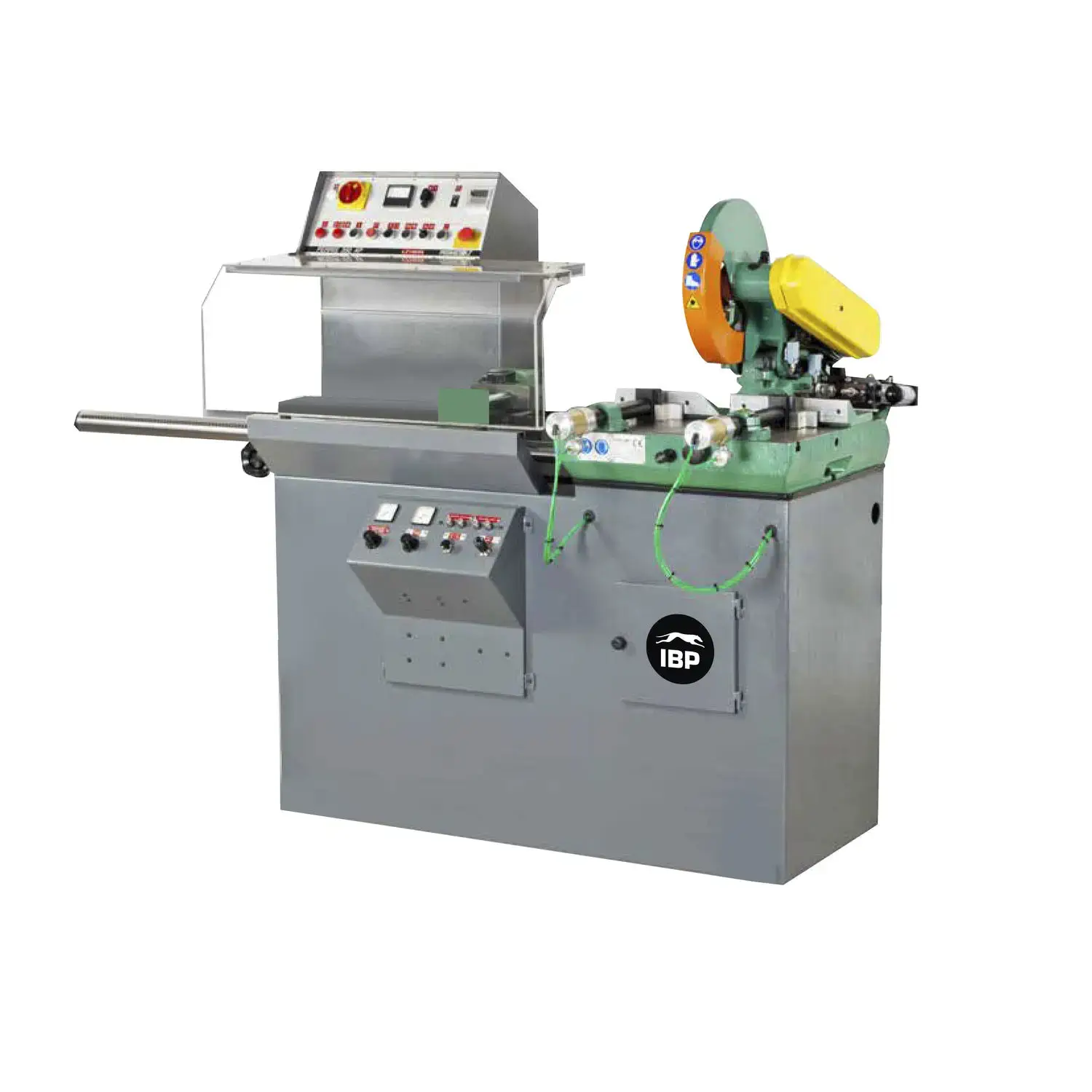

3.75″ New Pedrazzoli- Perris 350 AP Aluminum Cutting Circular Saw w/Step Feeder Features:
Perris 350 AP with Auto Feed for rapid cutting-off of aluminum and light alloys. Flexibility operation with accurate reliable cutting make this machine the most reliable cutting of non-ferrous sections.

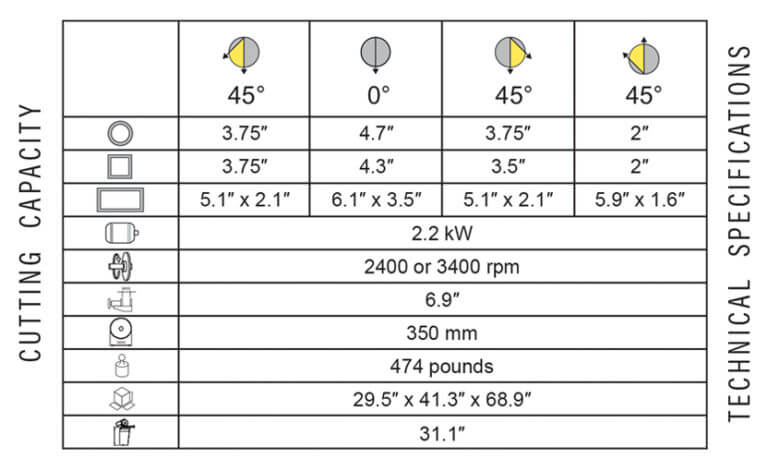

3.75″ New Pedrazzoli- Perris 350 AP Aluminum Cutting Circular Saw w/Step Feeder Specifications:
| Maximum Capacities | |
| Round 45º Right | 3.75″ |
| Round 0º | 4.7″ |
| Round 45º Left | 3.75″ |
| Round 45º Off Vertical | 2″ |
| Square 45º Right | 3.75″ |
| Square 0º | 4.3″ |
| Square 45º Left | 3.5″ |
| Square 45º Off Vertical | 2″ |
| Rectangle 45º Right | 5.1″ x 2.1″ |
| Rectangle 0º | 6.1″ x 3.5″ |
| Rectangle 45º Left | 5.1″ x 2.1″ |
| Rectangle 45º Off Vertical | 5.9″ x 1.6″ |
| Motor Power | 2.2kW |
| Variable Blade Speed | 2400 or 3400 rpm |
| Vise Opening | 6.9″ |
| Maximum Blade Diameter | 350mm |
| Machine Weight | 474 pounds |
| Overall Dimension (W x D x H) | 29.5″ x 41.3″ x 68.9″ |
| Work Height | 31.1″ |
| Voltage |
240V 3ph *480V 3ph must specify voltage when ordering |
3.75″ New Pedrazzoli- Perris 350 AP Aluminum Cutting Circular Saw w/Step Feeder Standard Equipment:
- Cutting Head locks for angled cuts up to 45° left , 45° right and 45° off the vertical
- Two pneumatic vises adjustable both lengthwise and laterally. Allow the workpiece to be secured close to saw blade minimizing vibration
- Pneumatic cylinder for head movement, with brake for speed adjustment
- Two speeds of blade rotation obtainable by means of inversion of the pulleys
- Perfectly balanced head, tilting upon shielded ball bearings
- 24 Inch step feeder controlled by pneumatic cylinder
- Repeater up to maximum of 9 steps to reach a maximum of 212 inches
- Maximum opening of feeder collet – 6 inches
- Programmable piece counter
- Minimum scrap on final cut – 14 inches
- Feeder speed adjustment valve
- Amp meter
- Emergency push button with key and lockable switch on control panel
- Mister for blade
- Complete protection guard with rapid blade change system
