Description

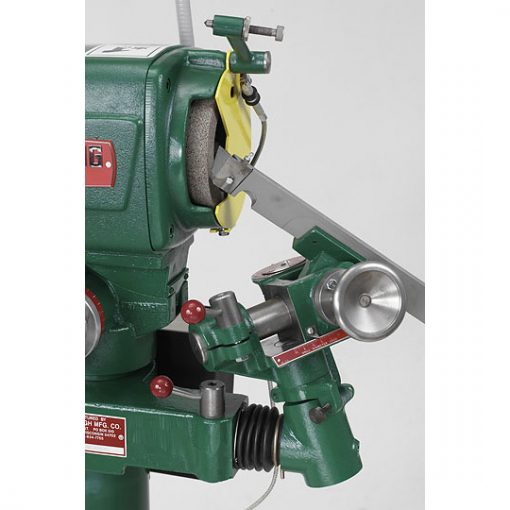

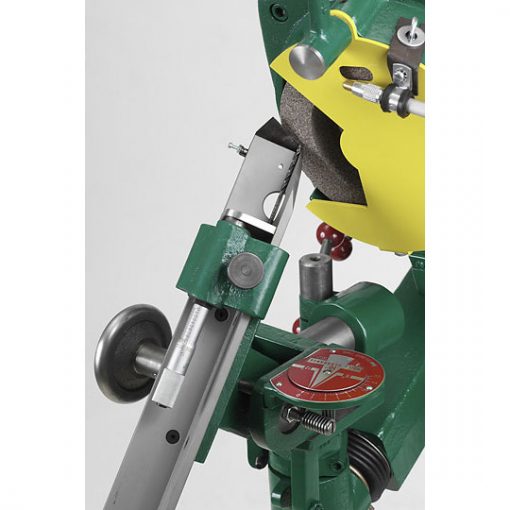

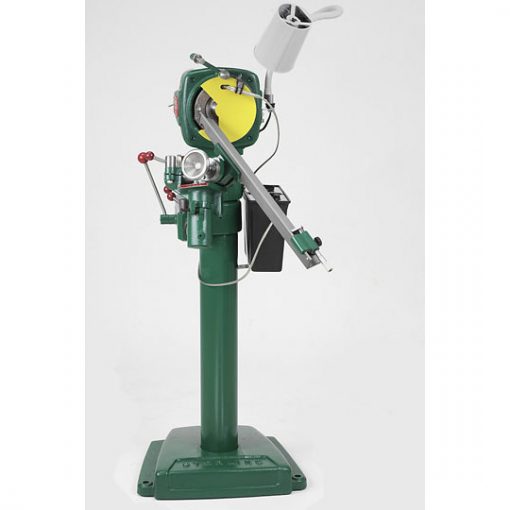

The new Sterling Drill Grinder, Model “DV” Made In The USA offers unmatched capacity, versatility, precision and simplicity. The “DV” sharpens 1/8″ to 2-1/2″ diameter drills, with 3″ calibration available. It also has the versatility to sharpen 2, 3, and 4 flute drills with variable included angles of 90°, 100°, 110°, 118°, 130°, and 140°. There are no chucks, no collets, and no wrenches to bother with when sharpening different diameter drills.
New Sterling Drill Grinder Specifications:
| Capacity | 1/8″ to 2-1/2″ Diameter Drills |
| Available Calibration | 1/8″ to 3″ |
| Motor | ¾ HP, 3450 RPM , 115Volt single phase |
| Grinding Wheel | 70 Grit |
| Height | 50″ |
| Weight | 345 lbs. |
| Dimensions | 24″ x 48″ |
New Sterling Drill Grinder Features:
- Flexible work light permanently mounted
- Diamond wheel dresser with mounted diamond
- 45º, 50º, 55º, 59º, 65º, and 70º drill stops
- 6″ straight cup wheel, 70 grit, aluminum oxide (46 and 60 grit also available)
- Micrometer Head for accurate control of drill infeed
- 3/4 H.P., 3450 RPM, 115-volt, single phase, 60 cycle, NEMA C flange mount, totally enclosed fan-cooled, ball bearing motor.
New Sterling Drill Grinder Accessories:
| 3/4hp, 220/440 volt, 3-phase motor with push button Start-stop switch (cord and plug not furnished). | $300.00 |
| Mist Coolant Unit (Replacement Unit only) | $320.00 |
| Mist Coolant Unit Kit (includes: Face Plate, Strap & Clip) | $350.00 |
| Mist Coolant Unit Kit (includes: Face Plate, Strap & Clip)Special Calibration for sharpening 3” diameter drills Complete with ¾ HP, 3 phase motor |
$525.00 |
| 3” Calibration with no motor | $350.00 |
| ABRASIVE WHEELS FOR THE STERLING TWIST DRILL GRINDERS #DG546 (46 Grit), #DG560 (60 Grit), and #DG570 (70 Grit) 6” Cup Wheels for High Speed Drills: |
|
| In Quantities of 1 through 4 | $96.00 ea. |
| In Quantities of 5 through 9 | $86.00 ea. |
| In Quantities of 10 through 24 | $82.00 ea. |
| #DG501 (60 Grit) and #DG502 (120 Grit) Silicon Carbide 6” Cup Wheels for roughing and finishing Carbide Drills: |
|
| In Quantities of 1 through 4 | $132.00 ea. |
| In Quantities of 5 through 9 | $122.00 ea. |
| DRILL STOPS: | |
| DV-45 Drill Stop (45 degrees) | $25.00 ea. |
| DV-50 Drill Stop (50 degrees) | $25.00 ea. |
| DV-55 Drill Stop (55 degrees) | $25.00 ea. |
| DV-59 Drill Stop (59 degrees) | $25.00 ea. |
| DV-65 Drill Stop (65 degrees) | $25.00 ea. |
| DV-70 Drill Stop (70 degrees) | $25.00 ea. |
| DB-3 Diamond Wheel Dresser | $85.00 ea. |
| DB103-2 Neoprene Boot | $68.00 ea. |
| MINIMUM ORDER: $50.00 List |
New Sterling Drill Grinder Versatility:
Sharpens 2, 3, or 4 flute drills with variable included angles of 90º, 100º, 110º, 118º, 130º, and 140º.
New Sterling Drill Grinder Precision:
For accurately centered and free cutting drills in seconds.
New Sterling Drill Grinder Simplicity:
NO chucks, NO collets, and NO wrenches to bother with when sharpening different diameter drills. The same drill holding unit handles all drills from 1/8″ to 2-1/2″ in diameter.
New Sterling Drill Grinder Unmatched Capacity:
The STERLING Drill Grinder is the only grinder capable of sharpening drills from 1/8″ to 2-1/2″ in diameter. It will accommodate any standard catalog drill within this size range without the hassle of using chucks, collets or wrenches.
New Sterling Drill Grinder Extra Versatility:
The STERLING Drill Grinder will sharpen 2, 3, and 4-flute drills with 90º to 140º included angles.
