Description
The rugged Summit® EVS Series CNC Vertical Bed Mills are engineered and manufactured from the finest components with the operator in mind. The newly designed control is centralized for ease of operation, has a larger display, and a power tapping mode. Movement of the head to various angles is easily obtained from the operator’s position. The Summit EVS Series CNC Vertical Bed Mills are versatile enough to effectively serve small one-man machine shops, job shops, R&D departments, tool room, and maintenance shops, as well as large, sophisticated manufacturing operations.
16.9″ x 60″ New Summit CNC Vertical Bed Mill Model SC EVS-760B VBM Specifications:
| Table | |
| Table size | 16.9″ x 60″ x 3 1/8″ |
| Table top to floor | 36.25″ |
| Number of t-slots | 5 |
| Number of feeds | Infinitely variable |
| Max. workpiece weight | 2,200 lbs |
| Traverse | |
| Table longitudinal travel (X) | 51.1″ |
| Saddle cross travel (Y) | 23.62″ |
| Vertical head travel (Z) | 23.6″ |
| Vertical Spindle Head | |
| Motor size | 7.5 HP |
| Spindle speeds (no.) range | (Infinitely variable) 70 – 3800 |
| Spindle feeds (no.) range | (Infinitely variable) 0 – 200 |
| Spindle nose to table top | 2.5″ – 30″ |
| Spindle nose to column | 23.62″ |
| Spindle taper | #40 |
| Quill traverse | (Manual) 5.5″ |
| Quill feed | 0.0016 – 0.0031 – 0.0059 IPR |
| Miscellaneous | |
| L x W x H | 88″ x 97″ x 109″ |
| Weight | 6,500 lbs |
| Voltage | 220/3/60 |
| Maximum overall height with head raised | 109″ |
16.9″ x 60″ New Summit CNC Vertical Bed Mill Model SC EVS-760B VBM Standard Features:
- Heavy “Meehanite” cast iron construction for excellent damping
- Heavy box saddle
- Huge box ways on column
- “Turcite-B” inserted guideways for extended machine life
- Double table locks
- Wipers on saddle and column
- Head swivels left & right
- Built-in coolant system
- Automatic lubrication
- Precision ground ball screws with double-nut design
- Inverter duty, high-energy, high-efficiency motors for lower utility costs, save up to 35%
- Compact AC inverter spindle drive
- AC servos & drives
- Fewer moving parts in the head for less maintenance and downtime
- Power cogged drive belt to prevent belt slippage and extend tool life
- Electronic inverter-controlled braking for reduced set-up time
- Fan cooled electrical enclosure

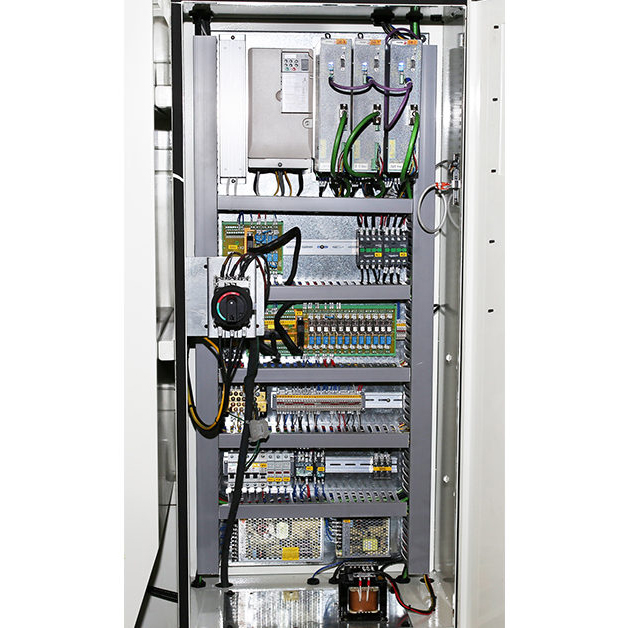

- Complete electrics with low voltage controls for safer machine operation
- Fagor glass scale feedback
- Fagor 8058 Control System
16.9″ x 60″ New Summit CNC Vertical Bed Mill Model SC EVS-760B VBM Included Accessories:
- Oil gun
- Clamping kit
- Anchor bolts
- Open end wrench set
- Steel way covers
- Halogen work light
- Air-operated power draw bar
