Description

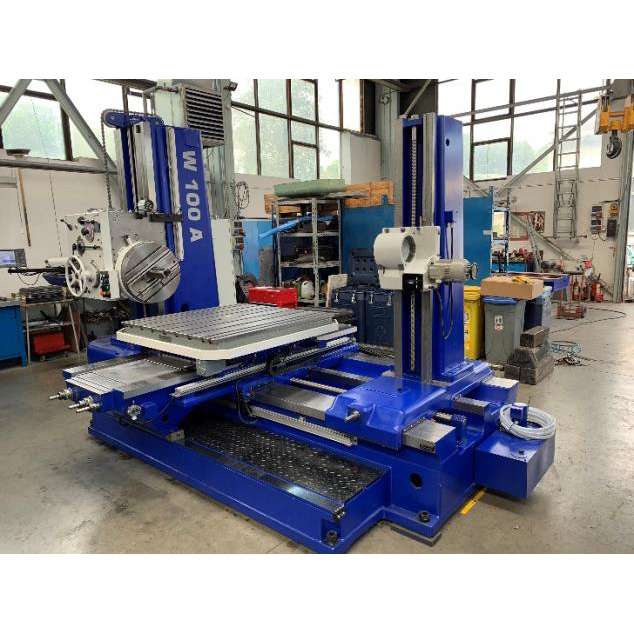

3.9″ Refurbished Horizontal Boring Mill Model TOS W 100A 63″ x 44″ x 49″ Specifications:
RemanufacturedTOS W 100A HBM
| Table Cross Travel (X-Axis) | 63″ |
| Headstock Travel (Y-Axis) | 44″ |
| Saddle Travel (Z-Axis) | 49″ |
| Spindle Travel (W-Axis) | 35″ |
| Spindle Diameter | 3.9″ |
| Spindle Taper | ISO 50 |
| Spindle Speed | 7 – 1,120 RPM |
| Work Traverse | 35 IPM |
| Rapid Traverse | 110 IPM |
| Motor | 14 HP |
| Table Size Rotary | 49″ x 49″ |
| Power | Transformer Required |
| Weight Capacity | 6,620 Lbs |
| Dimensions | 264.1″ x 135″ x 118″ |
| Machine Weight | 30,860 Lbs |
- Machine with modern Motor and Electrics
- 5 Axis DRO Heidenhain POSITIP 880

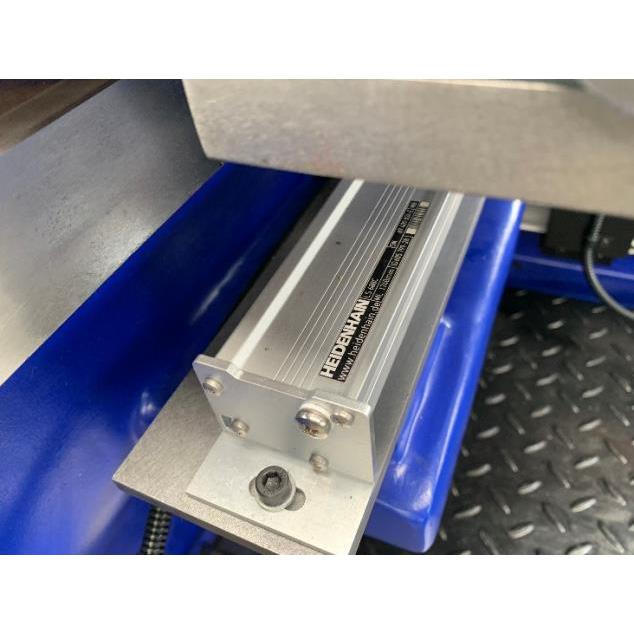

- Scales on X, Y, Z and W-Axis
- B-Axis measurement with a built-in rotary encoder and 4×90° Optical Readout
- Long life Spindle and Spindle Bearing
- Central Lubrication System for All Axes
- Telescopic Covers
- 24 Inch Facing Head With Maximum Face Milling Diameter 35.5”
- Facing Head
- Documentation
- CE Electrical Specifications
Machine Rebuild
- Headstock – spindle with cone ISO 50
- Spindle with coupling drive
- Scraping of gibs, new fixed pin
- Rocker arm, fork, spindle keys
- Striking lever, spring, wedges, dispatches
- Metrical ruler
- Manual wheel
- Power tool clamping system, including hydraulic system
- Way surfaces Z, Y, X are ground, mating slides are milled and surface, gibs ground and scraped
- Sliding surface of headstock are scraped
- Screws, bolts, bearing houses
- Re-turning of clamping area of table
- Wipers of sliding areas
- Electrical switchboard and all interconnections, energy grits
- Lubrication distribution, including feeders
- Surface treatment of machine
- RAL standard (blue or gray color)
- Tailstock (Only with motoric mechanical clamping)
- Shipping included, without rigging at customers premises
- Ready to ship
- Installation
- Warranty (1-Year spare parts & labor)
Options
- Right angle head FP100/40 … $15,470.00
- Boring bar 80×2500 … $11,200.00
- Boring bar 100×250 … $11,700.00
- Short knife holder ND 100 … $2,500.00
- Long telescope knife holder TD 50/4 … $3,100.00
- Coolant system … $3,400.00
