Description

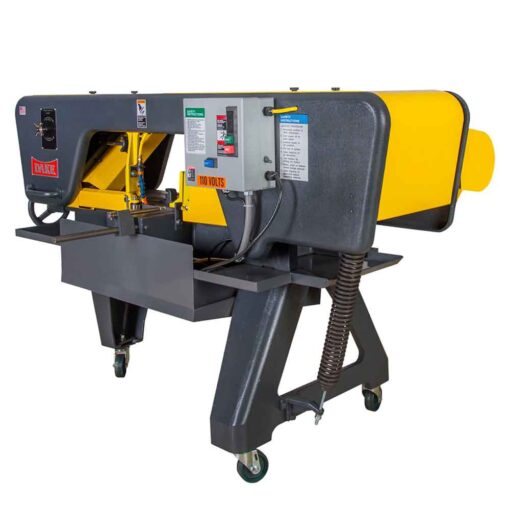

Heavy duty, American made, horizontal bandsaw with a dual cast head frame for large capacity cutting. Also featuring a three point suspension, adjustable eccentric roller blade guides, centralized controls, four-speed drive, 45º swivel vise jaws, and heavy 16” blade wheels.
10″ x 18″ New Dake Heavy Duty Horizontal Band Saw Model JH10W1 Specifications:
| Part Number | 985017 |
| Capacity | 10″ rounds, 18″ flats |
| Horsepower | 1 |
| Voltage | 110V, single phase |
| Maximum Blade Speed | 270 fpm |
| Blade Width | 1″ |
| Blade Length | 137″ |
| Blade Speeds | 50/90/160/270 fpm |
| Solid Round 90º Capacity | 10″ |
| Solid Round 45º Right Capacity | 7″ |
| Solid Round 60º Right Capacity | n/a |
| Solid Square 90º Capacity | n/a |
| Solid Square 45º Right Capacity | n/a |
| Solid Square 60º Right Capacity | n/a |
| Solid Rectangle 90º Capacity | 4-1/2″ x 18″ |
| Solid Rectangle 45º Right Capacity | 4″ x 10″ |
| Solid Rectangle 60º Right Capacity | n/a |
| Bed Work (area) | 11″ x 18″ |
| Weight | 935 lbs |
| Height | 75″ |
| Floor Space | 30 x 65″ |
| Floor Space Left to Right | n/a |
| Floor Space Front to Back | n/a |
| Floor to Bed | 23-3/4″ |
10″ x 18″ New Dake Heavy Duty Horizontal Band Saw Model JH10W1 Features:
- Heavy duty, American made medium production saw, comes with one standard Bi-metal blade.
- Hydraulic controlled, gravity head feed, for hands free cutting. Hydraulically variable head feed control for regulation of head feeding rate. Machine automatically shuts off after cut is complete.
- Cast two-piece head frame and large pivot bar, for extreme rigidity and long life.
- Gear box is driven via “V” belt and step pulleys for fast speed changes.
- Low voltage switches. Thermo over load protection, magnetic starter switch low voltage protection.
- Miters up to 45º
- Vise has quick release for quick change over of material sizes.
- Chip brush keeps the gullets of the blade clean.
- Case legs are of a three-point design. This unique design lets the machine sit flat, even on uneven floor surfaces.
- The saw is fully guarded for operator safety.
Standard Equipment:
- Vise
- Magnetic starter
- Blade tension
- Frame feed control
- Flood coolant system
Optional Equipment:
- Casters (set of 3)
- Stock stand
- 24″ discharge table
