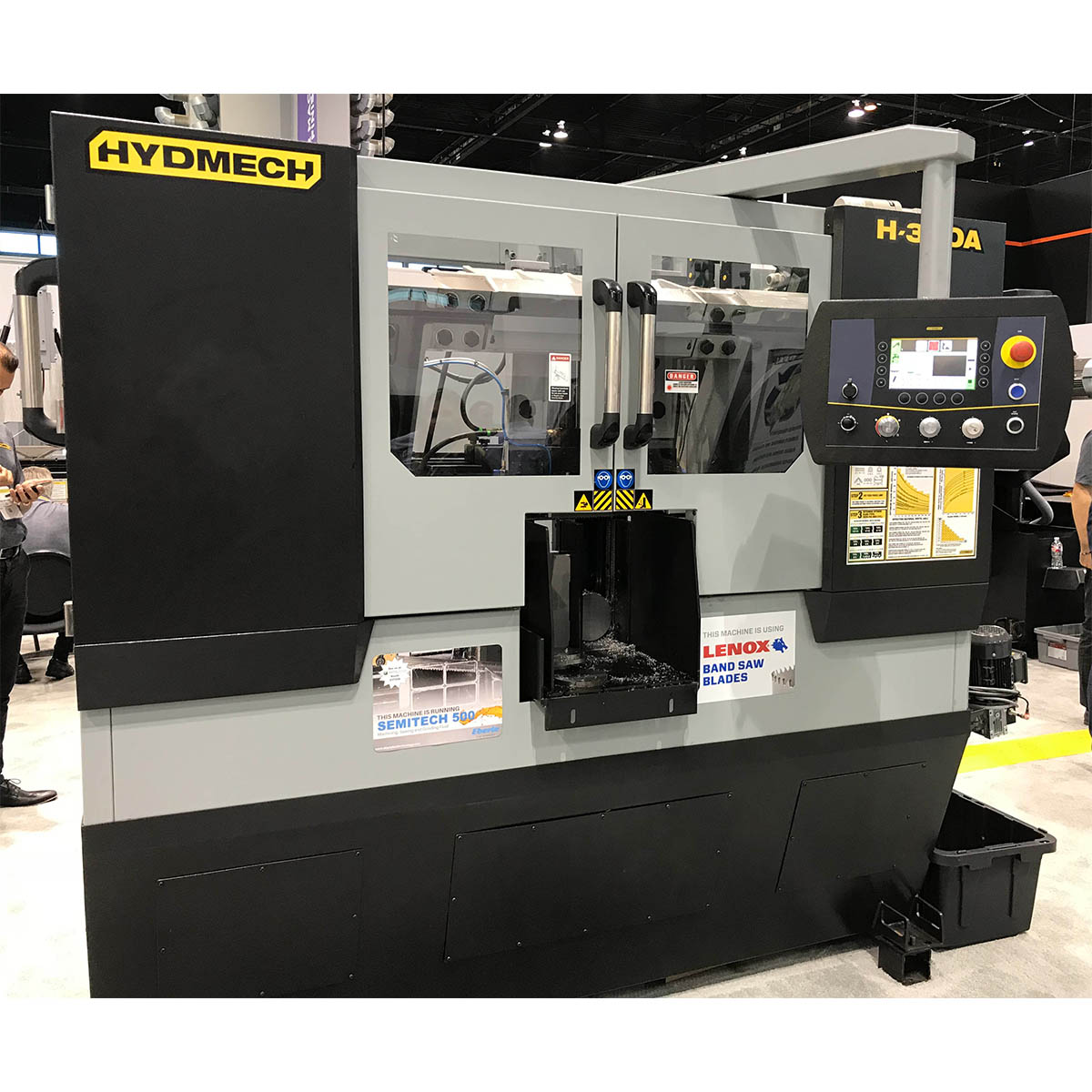

14″ x 14″ New HydMech Horizontal Band Saw Model H-360A

Terms:  Check with Order

Options

SKU: 39181 Categories: ,

Description

14″ x 14″ New HydMech Horizontal Band Saw Model H-360A Specifications:

Capacity
90° rectangle (h x w) 14″ x 14″
90° round 14″
90° square 14″
Blade Drive 6 HP
Blade Speed 49-380 SFM
Blade Size 1.25″ x 14′ 9″
Automatic Multi-Indexing 0-23″
Table Height 34″
Voltages Available 480 v (208, 240, 575 optional power transformer required)
Weight 4,400 lbs
Dimensions (w x l x h) 106″ x 71″ x 80″
Coolant Tank Capacity 53 Gallons
Remnant Length 1.8″ (10″ with bundling)

14″ x 14″ New HydMech Horizontal Band Saw Model H-360A Standard Features:

  • Heavy duty cast iron saw head
  • Split front vise
  • Fabricated shuttle features automatic multi-indexing up to 23” in a single stroke. Powered by ball screw and stepper motor.
  • On-demand hydraulics save energy
  • Steel guide arms mounted on linear rails. Auto adjustable guide arm for proper spacing.
  • 6 HP VFD. True direct blade drive – no belts/pulleys
  • Reversible chip auger
  • Full capacity, full stroking hydraulic vises
  • Hydraulic positive down feed
  • Blade chamber separates material from cut part
  • Cast iron band wheels
  • Automatic PLC, touch screen control programmable up to 100 jobs with 20 in queue.
  • Replaceable blade brush
  • Robust steel base
  • Easy access electrical panel and hydraulics
  • Blade breakage switch
  • Blade deviation monitor
  • Designed for safety with saw-in-a-box style
  • Out of stock switch
  • Mechanical band tensioning with digital readout
  • Replaceable carbide guide inserts
  • Safety door interlocks RFID technology
  • Flood coolant with wash down hose
  • Laser light
  • LED work light
  • Variable vise pressure



14″ x 14″ New HydMech Horizontal Band Saw Model H-360A Optional Features:

  • Full capacity hydraulic overhead bundling
  • Mist lubrication
  • Power transformer
  • Vertical rollers
  • Idler conveyors
  • Powered conveyors



14″ x 14″ New HydMech Horizontal Band Saw Model H-360A Optional Features:

16406005 Full capacity hydraulic overhead bundling – two vises $4,500
16405060 Mist lubrication system (shop air required) $1,900
16404001 Power Transformer- change in house power for 208v, 240 v and 575 v $1,700
16406025 Vertical rollers – on machine $1,600
Idler conveyors (26″W x 35″H)
18010404 Type 1 – 5’ in feed/ out feed idler conveyor $2,400
Powered conveyors (26″W x 35″H)
18014264 Type 1 – 10’ in feed/ out feed powered conveyor $10,900
18099790 Additional 10’ power add on section $8,500
18092000 Pneumatic clutch $4,100
Accessories for both idler and powered conveyors
18099091 Filler plates – for 5’ conveyor $1,700
18099092 Filler plates – for 10’ conveyor $3,400
18099084 Coolant drip pan – for 5’ conveyor $1,800
18099083 Coolant drip pan – for 10’ conveyor $3,600
18099079 Vertical alignment roller $1,900
18099095 Fork lift cut outs $2,200
