Description
The DoALL DCDS-600SA model StructurALL® semi-automatic, dual-miter metal-cutting band saw is designed for straight and angled cuts. Miter angle cuts are possible up to 60° left and right. A digital readout comes standard and makes it easy to verify exact cutting angles. Also classified as a horizontal structural, scissor saw, the 17″ x 24″ DoALL DCDS-600SA is ideal for fabrication shops, repair facilities and industrial manufacturing plants that cut tubing and structural shapes and occasional large solids. A large variety of optional accessories are available to customize the machine for specific sawing requirements.
17″ x 24″ New DoAll Horizontal Band Saw Model DCDS-600SA Specifications:
Cutting capacity round tube 90° | 18.5″ |
Cutting capacity round solid 90° | 8″ |
Cutting capacity rectangle 90° | 17″ x 24″ |
Capacity round at 45° | 5″ – 18.5″ |
Capacity rectangle at 45° | 16″ x 19″ |
Capacity round at 60° | 4″ – 13″ |
Capacity rectangle at 60° | 12″ x 16.5″ |
Saw blade (width x length) | 1.25″ x 238″ |
Band Drive | |
Motor HP | 5 Hp |
Band speed | 65-328 fpm |
Band tension | Hydraulic |
Hydraulic System | |
Motor HP | 3.8 Hp |
Reservoir size | 6 gallon |
Coolant System | |
Flood | Yes |
Mist lubricator | Yes |
Motor HP | 0.16 Hp |
Reservoir size | 8 gallon |
Indexer | |
Length per stroke | N/A |
Maximum index strokes length | N/A |
Remnant length at 90° | N/A |
Floor Space Dimensions | |
W x L x H | 115″ x 70″ x 85″ |
Material pass height | 31.5″ |
Machine weight | 3,715 lbs |
Electrical | |
Voltage requirement (Wye configuration) | 460V-60Hz-3ph |
Total amp draw (FLA) | 11 amps |
17″ x 24″ New DoAll Horizontal Band Saw Model DCDS-600SA Standard Equipment:
- Hydraulic dual swivel head to 60 left to 60 degrees right
- Semi-automatic cycle

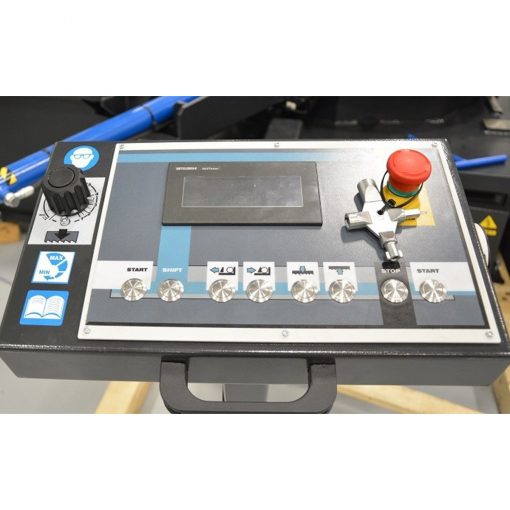

- Movable console with Mitsubishi controls
- Rapid head down approach
- Carbide faced saw guide inserts
- Programmable material height sensor
- Full stroke hydraulic vise
- Driven band cleaning brushes
- Infinite band speed controlled by variable frequency drive
- Automatic movable guide arm setting
- Cast steel band wheels
- Feed rate/Feed force
- Vertical hold down
- Laser line generator
- Hydraulic band tension
- Recirculating coolant system
- Mist band lubricator system
- Digitally displayed angle position with hydraulic lock
- Variable vise pressure
- LED work light
- 7 degree cant design
- Saw blade guards
- Band door interlocks
- Operation and parts manuals on USB stick
- Recommended band speed chart
- One (1) complimentary DoALL bi-metal saw blade
- Complimentary DoALL cutting fluids package
17″ x 24″ New DoAll Horizontal Band Saw Model DCDS-600SA Optional Accessories:
440×600-RDP 800/620 2.6 ft Heavy-duty input conveyor for angle cutting with drip pan/gutter – 24.4″ cylinder width – 1142 lbs/ft capacity | $3,755 |
440×600-RDZ 800/620 2.6 ft Heavy-duty output conveyor for angle cutting with drip pan/gutter – 24.4″ cylinder width – 1142 lbs/ft capacity | $3,465 |
500-RDT 2000/620 6.6 ft (2000mm) Input or output conveyor with drip pan/gutter – 24.4″ cylinder width – 1142 lbs/ft capacity | $3,217 |
231550 5 ft Medium-duty idler conveyor 24″ between frames roller capacity 850 lbs | $1,663 |
231551 10 ft Medium-duty idler conveyor 24″ between frames roller capacity 850 lbs | $2,743 |
500-RBR Single fixed vertical guide roller – 11″ cylinder heights – Attaches to RDT for operation | $412 |
500-RBRS Single adjustable vertical guide roller – Adjusts up to 24.4″ cylinder width – Requires RBR for operation | $691 |
500-RDH Single adjustable horizontal conveyor roller – 672 lbs/ft capacity | $1,545 |
440×600-VTT Worm chip conveyor for long chips – includes chip pan **16 week lead time** | $7,208 |
M-50-5 5 ft. Tape work stop (Mounts on conveyor) | $3,536 |
M-50-10 10 ft. Tape work stop (Mounts on conveyor) | $4,372 |
MD-50-5 5 ft. Digital work stop (Mounts on conveyor) | $5,449 |
MD-50-10 10 ft. Digital work stop (Mounts on conveyor) | $6,524 |
440-QPARTS Wear parts service kit – contains wear plates, guides, band brushes | $843 |
BOX-TRI Chip pan with drain | $648 |
BOX-TAH Handle for chip box | $128 |
226028 Magnetic wand chip remover | $185 |
299998 Additional USB stick of manuals | $87 |
NRTL A Nationally Recognized Testing Laboratory (NRTL) is an independent third-part laboratory recognized by the United States Occupational Safety and Health Administration (OSHA) to test and certify products to applicable product safety standards | $3,500 |
Warranty DoALL Cut Above 10 Year Warranty Annual Investment | $2,800 |
1200007 Starter Kit of Six Pack Blades consist of 1 each Silencer 3-4, 4-6, 5-8, and StructurALL 3-4, 4-6, 5-8 | $575 |
13410245 5 Gal. Pail of Band All 102 Semi Synthetic | $160 |
21200045 5 Gal. Pail of AL-2000 Mist Coolant | $240 |
