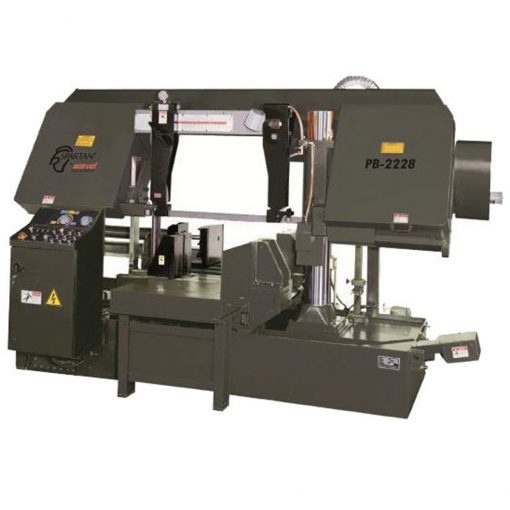

22” x 28” New Marvel Horizontal Billet Saw Model PB 2228

  • Heavy-Duty
  • Semi Automatic
  • Horizontal
  • Metal Cutting
  • 10 H.P.
  • 2” Blade
SKU: 18711 Categories: , ,

Description

Specifications:

Capacity
22” x 28” Rectangular, 22” Round. Minimum Vise Clamp 4.33”
Blade
2″ x .063” x 22’ 4”
Blade Tension
Hydraulically controlled to (38,000 psi). Includes Motion Detector switch to shut down machine if the blade should stall or break.
Speed Range
60 –265 fpm infinitely variable, driven by heavy-duty worm gear transmission frequency inverter blade speed control.
Feed Force
Hydraulic feed pressure 0 –350lbs. (0 – 1334 N) infinitely variable. Feed force and feed rate can be independently controlled for optimum cutting.
Secondary Head Hydraulic Cylinder
Maintains constant feed rates for optimum cutting performance
Hydraulic Bar Feed
For manual material positioning, shuttle stroke is 11.8”.
Motors
Blade Drive: 10 H.P. (11.25kW), Hydraulic Pump: 3 H.P. (2.25kW), Coolant Pump Motor: 0.25 H.P. (.1875kW)
Automatic Saw Return
Automatic saw head return with height control
Blade Motion Detector
Automatic shut-down of machine during blade breakage.
Blade Guides
Hydraulically controlled solid carbide guides are actuated when the machine’s hydraulic system is started to ensure rigid clamping for accurate cuts. The cast iron guide arms are manually positioned.
Chip Brush
Powered from the main drive shaft of the saw, cleans chips from blade to improve cutting performance and blade life.
Vise Jaws
The front vise jaws are split to hold material on both sides of the blade, reducing vibrations and burrs.
Work Light
Standard feature, mounted directly over work area.
Floor Space Required
11’ 3” x 7’ 3”
Hydraulic Capacity
30 gal
Coolant Capacity
21 gal
Table Height
29.5 inch
Crated Weight of Machine
9,920 lbs.
Table Load Capacity
7,250 lbs.

Standard Features:

  • Blade breakage/motion detector
  • Power driven wire brush
  • Saw frame height selector gauge
  • Work light
  • Hydraulically damped carbide blade guide system
  • Hydraulic shuttle vise for material positioning
  • Out feed auxiliary table
  • Roller table – 2M long
  • One bi-metal saw blade
  • One set of tools

Optional Accessories:

  • Automatic Chip Conveyor
  • Out Of Square Detector
  • Variable Vise Pressure
