Description

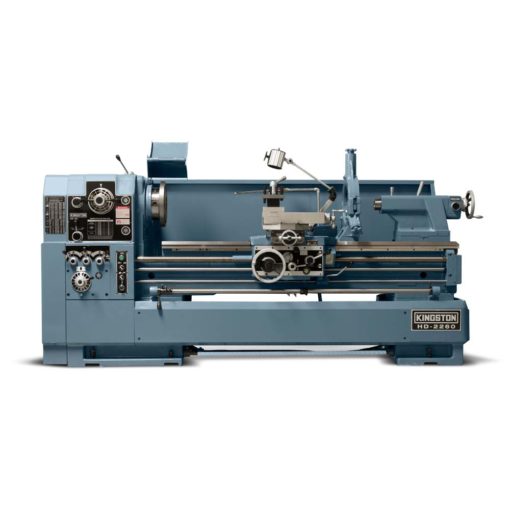

The 22″ x 60″ New Kingston Lathe Model HD-2260 is the big brother to our popular HJ model, Kingston’s HD is a versatile precision lathe that can tackle all of your projects, large and small. The hardened and ground main spindle features a 3-point bearing support with taper roller bearings for heavy-duty precision cutting. Select from either the HD 22” swing model which features a D1-8 Camlock spindle, 4 TPI lead screw, and a 10 HP motor, or the HD 26” swing model which features a D1-11 Camlock spindle, 2 TPI lead screw, and a 15 HP Motor.

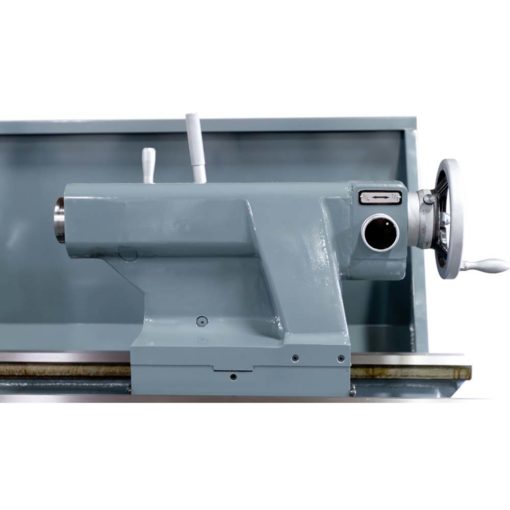

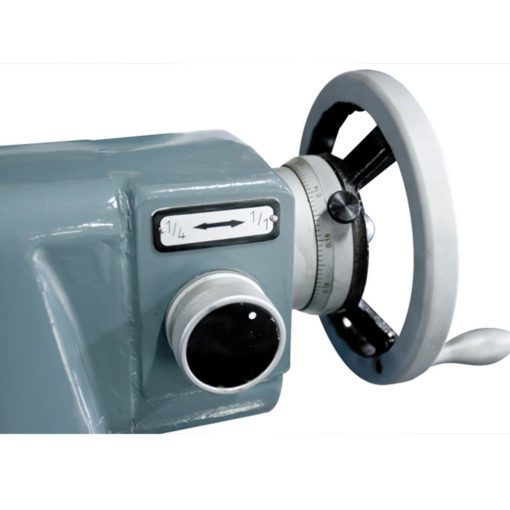

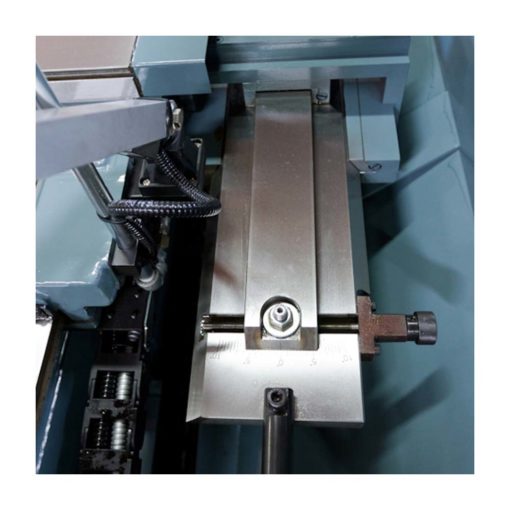

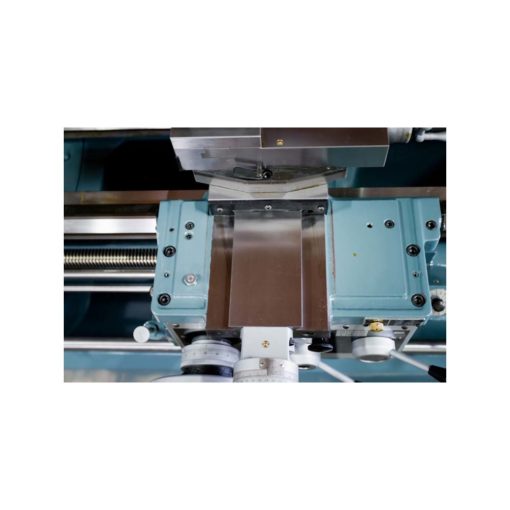

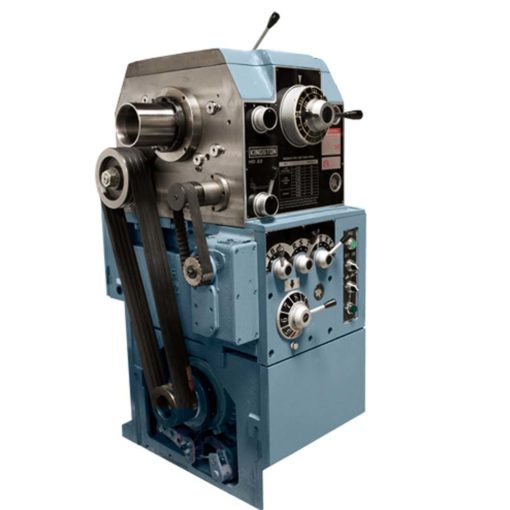

The timing-belt-driven power train system includes 12 speeds from 13 – 1200 RPM, complete with foot brake. Both bedway and cross slide are hardened and ground. The tailstock quill is heat treated and precisely ground, with a 7” travel and 1:1 and 1:4 changeable feeds. Machine lengths available from 35” – 160”. Z-axis rapid traverse standard on 90 C.C. and longer lathes.
22″ x 60″ New Kingston Lathe Model HD-2260 Specifications:
| Swing Over Bed | 22″ |
|---|---|
| Swing Over Bed | 22″ |
| Swing Over Cross Slide | 13″ |
| Swing In Gap | 31-3/8″ |
| Gap Width in Front of the Face Plate | 10-5/8″ |
| Distance Between Centers | 60″ |
| Width of Bed | 15-3/4″ |
| Height of Center from Leg Bottom | 42″ |
| Spindle Bore | 4-1/16″ |
| Taper of spindle bore and center | MT#7 x #5 |
| Type of Spindle Nose | D1-8 |
| Number of Spindle Speeds | 12 |
| Spindle Speed | 13-1200 RPM |
| Number of Feed Changes | 16 |
| Feeds per revolution – Longitudinal | 0.0012″-0.039″ |
| Feeds per revolution – Cross | 0.0004″ – 0.0117″ |
| Leadscrew Diameter & Threads Per Inch | 1.77″ , 4 TPI |
| Range of Inch Threads | 2 – 72 TPI (44) |
| Range of Metric Pitches | 0.2 – 14 (39) |
| Maximum Travel of Compound | 9.5″ |
| Maximum Travel of Cross Slide | 15.8″ |
| Tailstock Quill Travel | 9.8″ |
| Tailstock Quill Diameter | 2.9″ |
| Taper in Tailstock Quill | M.T. #5 |
| Main Drive Motor | 10 HP |
| Coolant Pump Motor | 1/8 HP |
| Floor Space | W: 47″ L: 114″ |
| Machine Weight | 5,300 Lbs. |
22″ x 60″ New Kingston Lathe Model HD-2260 Standard Equipment and Accessories:
- 10 HP (22”) /15 HP (26” Swing), 230/460V 3 phase, 60 cycle, Switch & Wiring
- 4.09” Spindle Bore
- Spindle Nose: D1-8/D1-11 (22″/26” Swing)
- 12 Spindle Speeds (13 – 1200 RPM)
- Wye Delta Start
- Emergency Stop Button
- Chuck Guard
- 10″ Steady Rest with Roller Jaws
- Z-Axis Rapid Traverse (Except 35″ & 60″ C.C.)
- 4-Way Tool Post Fitted To T-Slot Compound
- Coolant System With Pump And Piping
- LED Work Light w/ 120V Outlet
- Hardened & Ground Bed & Cross Slide Ways
- Cross Slide Screw: 8/5 TPI (22″/26″ Swing)
- Lead Screw: 4 TPI/2 TPI (22″/26″ Swing)
- Automatic Longitudinal Feed Stop Bar
- Thread Chasing Dial
- Pull Drawer Chip (Oil) Pan
- Two-Speed Drive Tailstock Spindle (MT #5)
- Full-Length Splash Guard
- Tailstock Complete Crank Assembly
- Tool Box w/Necessary Wrenches & Spanners
- Instruction Manual & Parts List
- Headstock Spindle Center Adaptor: MT #7 to #5
- Ground Steel Center MR #5 for Headstock
- 12″ Back Plate
- Leveling Screws
- Leveling Pads
- Touch-Up Paint
22″ x 60″ New Kingston Lathe Model HD-2260 Optional Accessories:
- Additional 10″ Steady Rest with Roller Jaws (Min. Capacity 1.6″) $3,500
- 15″ Steady Rest with Roller Jaws (Min. Capacity 7.5″) $3,750
- 7″ Follow Rest $1,700
- Telescopic Taper Turning Attachment $4,000
- Drilling Attachment $2,350
- Z-axis Rapid Traverse on 35” or 60” Bed $4,500
- Micrometer Carriage Stop $500
- Turret Carriage Stop $500
- Bison Super Precision Live Center MT#5 (4180 lbs, 0.0002 max runout) $495
- Convert Cross Feed Screw (HD-22 to 5 TPI, HD-26 to 8 TPI) $1,500
- Aloris CA Tool Post Only $1,125
- Aloris CA Tool Post plus 6 Tool Holders (set #4) $2,350
- Aloris DA Tool Post Only $1,590
- Aloris DA Tool Post plus 6 Tool Holders (set #5) $3,170
- Newall 2-Axis Digital Readout plus Installation 60” C.C. $4,400
- D1-8: Taiwan SK 12″ 3-Jaw Semi-Steel Scroll Chuck plus Plate (solid jaws) $2,750
- D1-8: Taiwan KT 12″ 3-Jaw Steel Body Adjustable Chuck plus Plate (hard and soft solid jaws) $3,100
- D1-8: Taiwan KC 12″ 4-Jaw Semi-Steel Independent Chuck (direct mount, solid jaws) $1,450
- D1-8: Bison 16″ 3-Jaw Forged Steel Chuck (direct mount, 5.35″ hole, 2pc jaws) $7,025
- D1-8: Bison 16″ 4-Jaw Forged Steel Chuck (direct mount, 3.94″ hole, 2pc jaws) $5,850
- D1-8: Taiwan KC 16″ 4-Jaw Semi-Steel Independent Chuck (direct mount, solid jaws) $2,575
- D1-11: Bison 20″ 3-Jaw Forged Steel Chuck (direct mount, 7.48″ hole, 2pc jaws) $15,400
- D1-11: Bison 20″ 4-Jaw Forged Steel Chuck (direct mount, 4.92″ hole, 2pc jaws) $9,125
- D1-11: Taiwan KC 20″ 4-Jaw Semi-Steel Independent Chuck (direct mount, solid jaws) $4,750
- 20″ Face Plate $1,650
- Other Chucks (i.e. Pratt Burnerd, Toolmex) Upon Request
- Add Limit Switch to Chuck Guard $150
- Clear Lexan Chuck Guard (Installed) $595
- Leadscrew Guard (60″/90″ Lengths Only) $1,050/$1,150
- Tool Post Guard $450
- Heavy Duty Tool Post Guard $2,350
- Rear Spindle Cover $250
- NRTL/UL Certification $6,500
