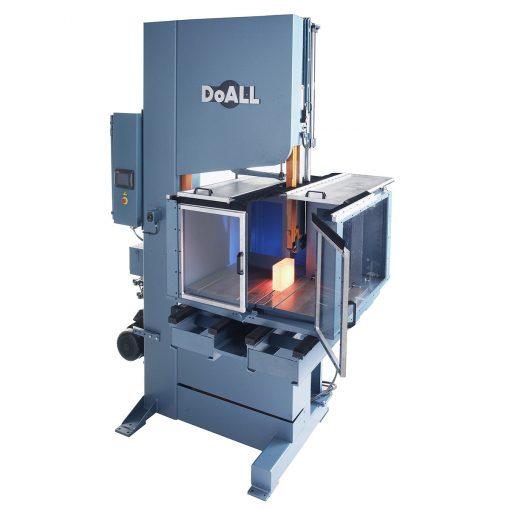

The 35″ x 16″ DoALL D900 is an economically priced diamond saw for cutting friable materials including silicon, quartz and glass. Designed to use 1.25″ (32mm) wide, grit edged saw bands, Model D900 has a 35″ (900mm) throat with a 16″ (400mm) work height that accommodates a wide range of material sizes. The simple design of the D900 features a band speed and feed rate control from the operator panel, resulting in reduced operating costs, minimal maintenance and lower total cost of ownership.
35″ x 16″ New DoALL Diamond Saw Model D-900 Specifications:
|Throat Depth (Band to Column)||35″ (900mm)|
|Maximum Work Height||16″ (410mm)|
|Band Width Capacity||1-1/4″ (32mm)|
|Band Length||234″ (5,940mm)|
|Variable Band Speed||1000-5000 fpm (305-1525mm)|
|Blade Drive Motor||15 hp (11.1kW)|
|Material Pass Line Height||35″ (900mm)|
|Table||20 – 34″ x 2 4- 42″ (500 – 864×609 – 1067mm)|
|Table Capacity||2,000 lbs (907kg)|
|Table Stroke||24″ (609mm)|
|T-Slots||1/2″ (4) (13mm)|
|Table Feed Rate||40 ipm ( mpm)|
|Force Feed||0-100 lbs (0 – 45kg)|
|Upper Wheel Adjustment||2″ (51mm)|
|Weight||4,500 lbs (2,041kg)|
35″ x 16″ New DoALL Diamond Saw Model D-900 Standard Equipment:
The D900 upright saw features 36″ (915mm) wheels to minimize band fatigue, an electric ball screw-controlled table with a 35″ (900mm) stroke for greater productivity, and a variable frequency 15 HP (11.25kW) AC drive with band speeds from 1000 – 5000 fpm to permit cutting of a wide variety of materials.
- One set of heavy-duty guide blocks with carbide back-up for 1-1/4″ (32mm) band
- One set of carbide-faced saw guide inserts for 1-1/4″ (32mm) band
- Coolant applicator, flushing nozzles, table coolant pan and table splash guards
- 15 hp (11.25kW) Variable frequency drive (VFD) controlled band drive motor
- Electric ball screw table drive system
- Calibrated feed control with digital readout
- Lubricated table bearings
- Hydraulic blade tension
- Precision band wheel spindles
- Instruction and parts manuals on CD or USB data stick
35″ x 16″ New DoALL Diamond Saw Model D-900 Optional Accessories:
- Extended Work Heights
- Optional 1-1/2″ (38mm) Band Width
- Longer or Shorter Table Strokes Available
