35″ x 160″ Kingston CNC Lathe Model CL58C 7.3″ for sale
Kingston’s CL-58 model builds upon our popular CL-38 by stepping up its power and capacity to handle larger and longer workpieces. This versatile front- and rear- chuck ready machine features a front V8 turret, 40 HP Motor, and wider 22″ 2 V-way bed for optimal cutting performance. Customize your CL-58 with a 7.3”, 10.1” or 14.7″ spindle bore, rear H6 rear turret and lengths from 40” — 240”.

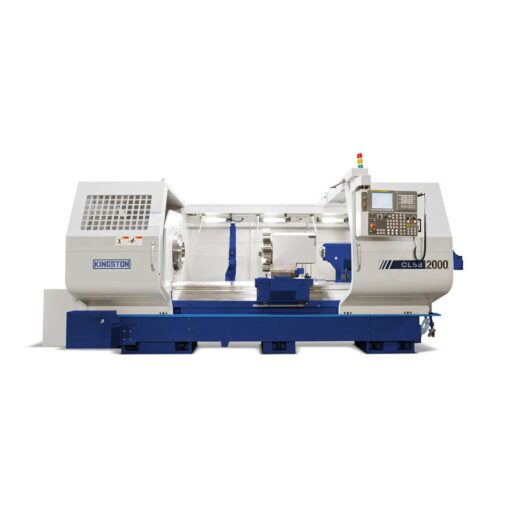

35″ x 160″ Kingston CNC Lathe Model CL58C 7.3″
Capacity | |
Swing Over Bed | 35″ |
Swing Over Cross Slide | 20.4″ |
Max. Cutting 2 Turrets (Wide) | 17.9″ |
Max. Cutting 2 Turrets (Narrow) | 14.1″ |
Distance Between Centers | 171″ |
Maximum Cutting Lengths | 157″ |
Width of Bed | 22″ |
Headstock | |
Spindle Bore | 7.3″ |
Spindle Motor | 30/40 HP (30 min.) |
Type of Spindle Nose | A2-15 |
Gear Box | |
Number of Speed Ranges | 2 |
Spindle Speed (RPM) | 3-1000 |
Turret | |
Turret | V8 Hydraulic |
Traverse | |
Max. Stroke | X-Axis: 20.5″ Z-Axis: 164.2″ |
Rapid Traverse | X-Axis: 394 in/min Z-Axis: 394 in/min |
Motor | |
Servo Motor | X-Axis: 3.6 HP Z-Axis: 5.4HP |
Ball Screw | |
Ball Screw | X-Axis: Ø1.41”, P6 Z-Axis: Ø1.97”, P8 (80″), P12 (120″), P16 (160″) – Ø2.48, P12(200″) |
Tailstock | |
Tailstock Quill Center | M.T. # 5 |
Tailstock Quill Diameter | Ø5.9” |
Tailstock Quill Travel | 8.6” |
Machine Height | 83″ |
Dimensions | |
Floor Space (LxW) | W: 98″ L: 330″ |
Weight | |
Net Weight (lbs) | 25,960 |
Total Power Required | 40 KVA |
Price and specifications subject to change without notice.
The machine will be guaranteed free from defective material and workmanship for a period of one (1) year under normal working conditions on a one-shift basis (8 hrs. only), excluding misuse by customer.
Electrics guaranteed for a period of one (1) year (parts only).
Standard Equipment & Accessories:
- 30/40 HP (30 min) Fanuc aP50i AC Spindle Motor, 220V (only), 3 Phase, 60 Cycle
- Fanuc 0iTF-Plus Controller with Manual Guide i & Threading Repair, 10.4″ LCD Monitor
- Front & Rear Chuck Ready Spindle
- Rear Spindle Safety Door
- V8 Turret
- 11.8″ Steady Rest w/Roller Jaw (Min. 3.5″)
- Tailstock with Sub-Spindle Function and Chuck Mounting Capability
- Water Spray Gun for chip Cleanup
- Tailstock Movable by Engaging with Carriage
- Dead Center for Tailstock MT#5
- Coolant System w/6 Bar Pressure
- Auto Lubrication System
- Two Doors and Full-Length Back Splash Guard
- Rear Chip Conveyor
- Halogen Light
- Foundation Pads, Leveling Screws
- Tool Box and Tools
- Operation, Electric, Controller & Parts Manual
STANDARD TOOLING PACKAGE
Turret | V8 | H6 | H4 (Opt.) | ||||
Tool Center Height | 1-1/4″ | 1-1/4″ | 1-1/4″ | ||||
Wedge Block | 8 pcs (+2 pc for Facing) | 8 pcs | 8 pcs | ||||
Facing Tool Holder | 1-1/4″” | 2pcs | |||||
Radial Tool Holder | 1-1/4″ | 2 pcs | |||||
Boring Bar Holder | 2″ | 4 pcs | 2″ | 6 pcs | 2′ | 1 pc | |
Boring Bar Sleeve | 1-1/2″ | 2 pcs | 1-1/2″ | 2 pcs | 1-1/2″ | 1 pc | |
1-1/4″ | 2 pcs | 1-1/4″ | 2 pcs | 1-1/4″ | 1 pc | ||
1″ | 2 pcs | 1″ | 2 pcs | 3/4″ | 1 pc | ||
3/4″ | 2 pcs | 3/4″ | 2 pcs | 1″ | 2 pc | ||
5/8″ | 2 pcs | ||||||
1/2″ | 2 pcs | ||||||
3/8″ | 2 pcs | ||||||
Drilling Sleeve MT#3 | 2″ | 1 pc | 2″ | 1 pc | 2″ | 1 pc | |
Drilling Sleeve MT#4 | 2″ | 1 pc | 2″ | 1 pc | 2″ | 1 pc |
Note: No credit allowed for deletion of individual tool sleeves in the standard tooling package.
Optional Accessories:
- Additional 11.8″ Steady Rest w/Roller Jaws (Min. Capacity 3.5″). $4,700
- 20″ Steady Rest w/Roller Jaws (Min. Capacity 11.4″). $5,800
- Heavy Duty 5.9″ Steady Rest with Roller Jaws (Min. Capacity 1.1″) $6,300
- Heavy Duty 22″ Steady Rest with Roller Jaws (Min. Capacity 14.9″). $7,200
- Follow Rest (1.57″-9.45″). $7,300
- 4″, 5″, 5.5″ or 6″ Boring Bar Support. $3,900
- 3″ & 4″ Sleeves for 5″ Boring Bar Support Each $1,200
- Fanuc Arbitrary Speed Threading + Thread Lead Teach: Spindle FWD $2,500
- Fanuc Arbitrary Speed Threading + Thread Lead Teach: Spinal FWD + REV $3,000
- 38.9″ Swing Over Bed Upgrade. Upon Request
- 42.8″ Swing Over Bed Upgrade. Upon Request
- Transformer 480V to 220V $2,800
- Full Enclosure. Upon Request
- Without Tailstock (Factory Removal Only). Upon Request
Turret Options:
Sauter BMT-65 V12 Live Tooling Turret + 2.5º C-Axis Spindle Indexing. Upon Request
Tool Holder for V8, V12, H4 & H6. Upon Request
Rear H6 or H4 Turret $15,500
Without Front or Rear Turret (Factory Removal Only). Upon Request
Tool Block W/T-Slot in Rear Position. Upon Request
Workholding
21″ 3-Jaw Hydraulic Chuck + System for 7.3″ Bore (6.4″ bar capacity). $37,500
24″ 3-Jaw Hydraulic Chuck + System for 7.3″ Bore (6.4″ bar capacity). $39,500
24″ 3-Jaw Hydraulic Chuck + System for 10.1″ Bore (8.0″ bar capacity). $45,500
Taiwan KC 24″ 4-Jaw Ind. Chuck (9.0″ hole, solid jaws, semi-steel body, A2-15). $7,500
Taiwan KC 26″ 4-Jaw Ind. Chuck (10.0″ hole, solid jaws, semi-steel body, A2-15). $9.500
Taiwan KC 28″ 4-Jaw Ind. Chuck (10.2″ hole, solid jaws, semi-steel body, A2-15). $12,500
Bison 25″ 4-Jaw XHD Ind. Chuck (10.6″/12.5″ hole, 2pc jaws, forged steel). $11,050
Bison 28″ 4-Jaw XHD Ind. Chuck (12.6″ hole, 2pc jaws, forged steel). Upon Request
Bison 32″ 4-Jaw XHD Ind. Chuck (14.6″ hole, 2pc jaws, forged steel). Upon Request
Other Hydraulic, Air & Manual Chucks. Upon Request
Kingston CL58 CNC Lathe Video:
