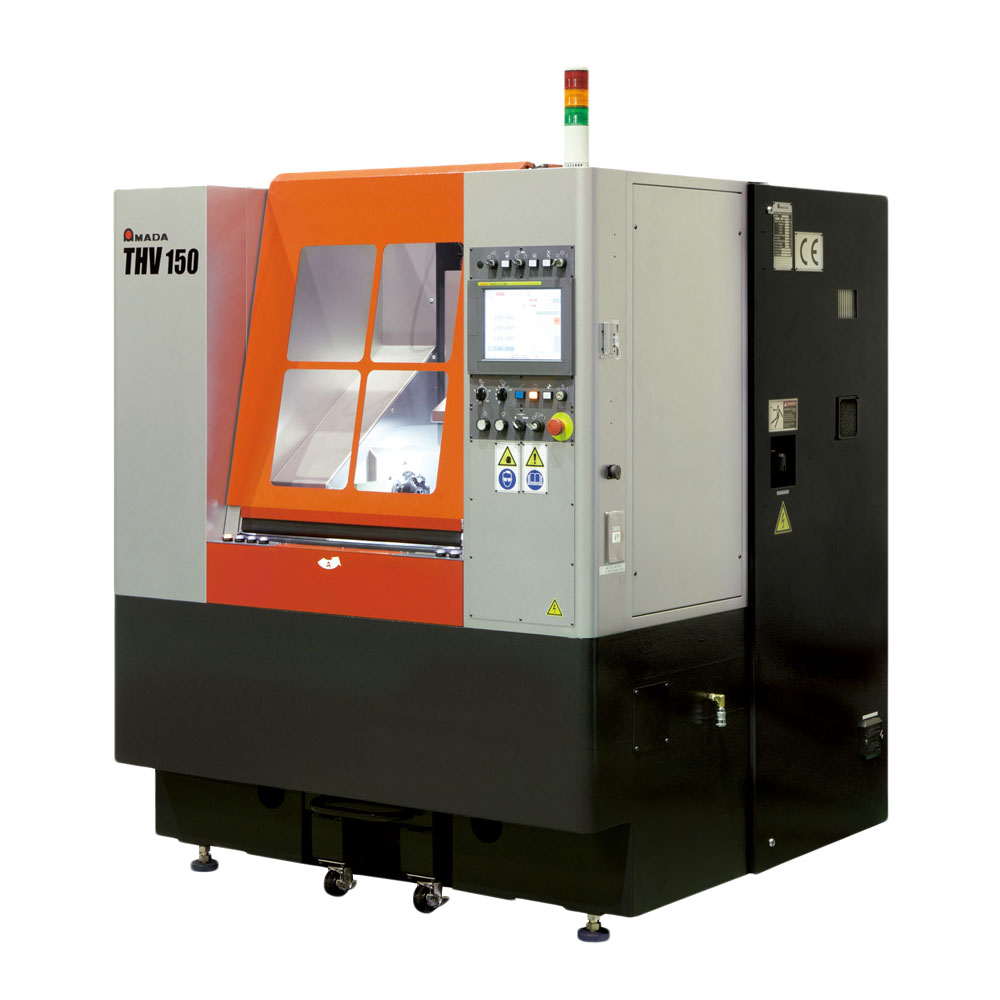

7.87″ New Amada Duplex Milling Model THV150 Specifications:
Body | |
Index Table Size | Dia. 7.87″ |
Max Longitudinal Travel (X-axis) | 11.8″ |
Max Cross Travel (Y&X-axis) | 4.84″ |
Distance from Spindle Nose to Table Center | 1.57″-6.41″ |
Max Distance Between Both Spindle Nose | 9.68″ |
Index Table Driving Angle | 0/45/90/135 Degree |
Capacity | |
Max Material Dimensions (W x L x H) | 6.3″ x 6.3″ x 5.9″ |
Max Machining Dimensions (W x L x H) | 5.9″ x 5.9″ x 2.05″ |
Min Machining Dimensions (W x L x H) | 0.276″ x 0.276″ x 0.276″ |
Chamfering Size | Max. C2 |
Face Mill Cutter Diameter | Dia. 2.48″ x thickness 1.57″ |
Table Loading Capacity (Max Workpiece Weight) | 44.1 lbs |
Feed Speed | |
Rapid Feed Speed (X-axis) | 32.8 ft/min |
Rapid Feed Speed (Y&X-axis) | 26.2 ft/min |
Cutting Feed Speed (Manual) | 0.039 – 59.05 in/min |
Cutting Feed Speed (Auto) | 0.039 – 196.85 in/min |
Handle Feed (Manual Pulse Generator) | 0.000039/0.00039/0.0039 in/1 pulse |
Spindle | |
Spindle Diameter | Equivalent to JIS No.30 |
Spindle Nose | Dia. 0.866″ |
Max Spindle Speed | 4500 RPM |
Spindle Speed (Optional High-Speed Spec.) | 8000 RPM |
Max Spindle Torque | 35 Nm |
Motors | |
Spindle Motor | 5/7.5 HP x 2 |
Feed Motor (X-axis) | 1 HP |
Feed Motor (Y&X-axis) | 3/4 HP x 2 |
A-Axis Index Table Motor | 3/4 HP |
Clamper | 3/4 HP |
Positioning System | 3/40 HP |
Machine Dimensions (W x L x H) | 59.1″ x 59.1″ x 79.6″ |
Machine Weight | 4,409 lbs |
Cutter Heeling | 0.0012″/11.8″ |
Air Pressure Requirement | 71.25 PSI and over, 79.25 gal/min and over |
Electric Power Requirement | 16 kVA, AC200/220V ±10%, 50/60Hz |
7.87″ New Amada Duplex Milling Model THV150 Features:
- Automatic Process to Milling Plate with a Twin Spindle Milling Machine
- Clamping the workpiece by the operator.
- Milling the 2 surfaces with 2 cutters at one time automatically.
- After milling 2 surfaces, index table is automatically rotated 90 degrees.
- Milling the 2 remaining surfaces automatically.
