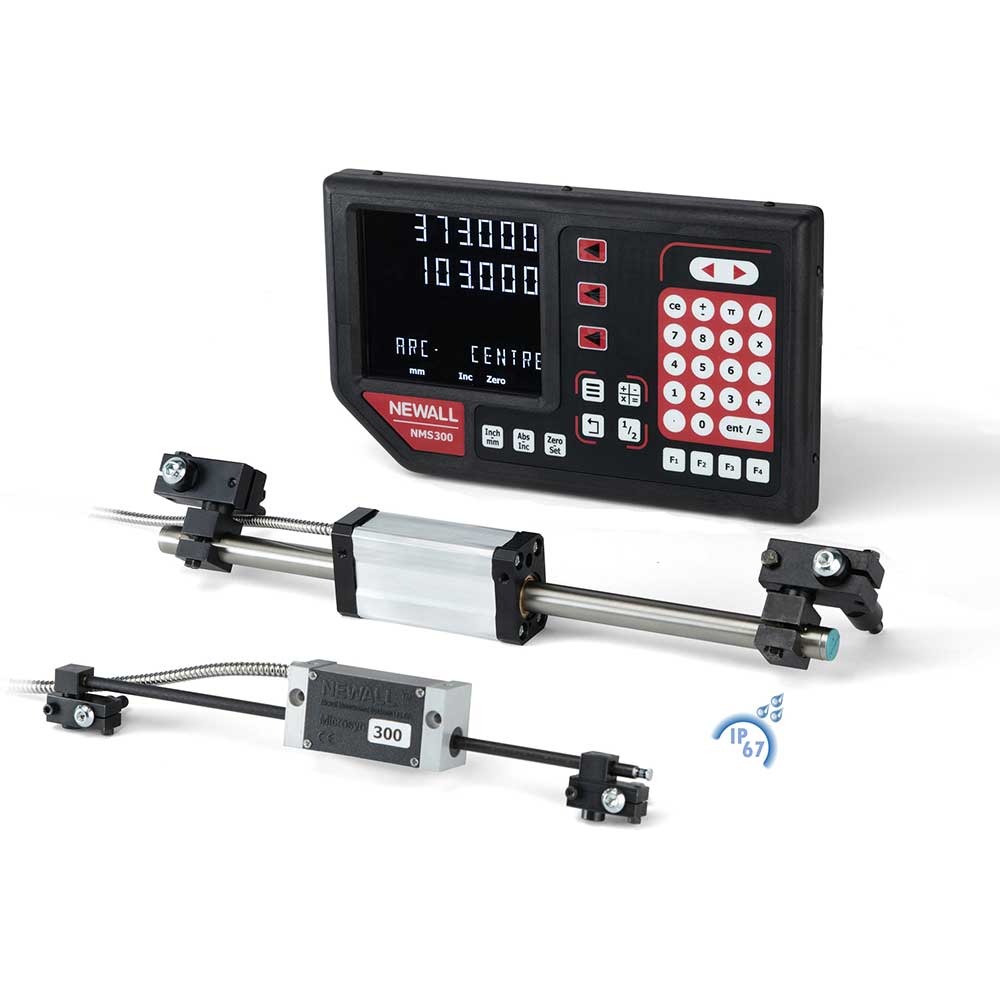

New 12″ x 36″ Newall NMS300 2 axis Digital Readout System

The NMS300 was designed specifically for long travel machine tools.  It includes features that are essential for increasing productivity on boring mills, VTLs, milling machines and long travel lathes.  Built with the operator in mind, the DP1200 includes large, clear numerical displays and an intuitive color TFT message screen along with an optional DSU.

Price On Request

F.O.B. Factory

Terms: Check with Order



SKU: 37792 Category:

Description

New Newall NMS300 Digital Readout Specifications

Newall’s NMS300 Digital Readout System sets the standard for reliability, value and ease of use. Specifically designed to be  partnered with machine tool builders and importers, the NMS300 DRO System  includes Newall’s Spherosyn300 and Microsyn300 encoders. Newall’s inductive encoders are simple to install and designed to provide consistent accuracy and reliability even under the harshest work shop conditions.

FEATURES INCLUDE:

  • Lathe and Mill specific functions
  • Panel mount option
  • Selectable resolutions down to 1 micron
  • Global technical support
  • User definable function keys
  • Custom mounting brackets available
  • Custom labelling, setup and display message available
  • Newall NMS300 Digital Readout Features

The Newall Advantage

  • Backed by a company with nearly 50 years of proven quality in manufacturing DRO systems & linear encoders
  • Reliable and dependable inductive encoder technology
  • Encoders carry an IP67 rating – All electronic and measuring components are sealed from the environment
  • No glass to break or scratch
  • Continually provides accurate readings even under the harshest work shop conditions
  • No cleaning or maintenance required
  • Tolerant to shock and vibration
  • Easy to install—No backer bar or machined surface needed



ALL NMS300 PACKAGES INCLUDE EVERYTHING REQUIRED FOR A COMPLETE INSTALLATION:

  • NMS300 DRO (2 or 3 axes)
  • Spherosyn300 and/or Microsyn300 assemblies with armoured cables
  • Scale bracket kit and hardware
  • Reader head mounting brackets and hardware*
  • Display mounting arm and hardware*All packages are available with or without mounting brackets for the reader head and mounting arm.



Spherosyn™ and Microsyn™ encoders are designed to give you consistent accuracy and reliability under even the harshest shop conditions. Based on the principle of electromagnetics, Newall’s analogue encoders embody a truly innovative design in which all of the electronic and measuring components are sealed and protected. The Newall encoders are IP67 (NEMA 6) environmental rating approved. The encoders provide accurate and reliable readings even when submerged in water, oil and coolant.

Encoder Benefits
  •  IP67 (NEMA 6)
  • Withstands dust, dirt, oil and other environmental conditions
  • No mechanical wear characteristics
  • Requires no cleaning or maintenance
  • High tolerance to shock and vibration
