Description

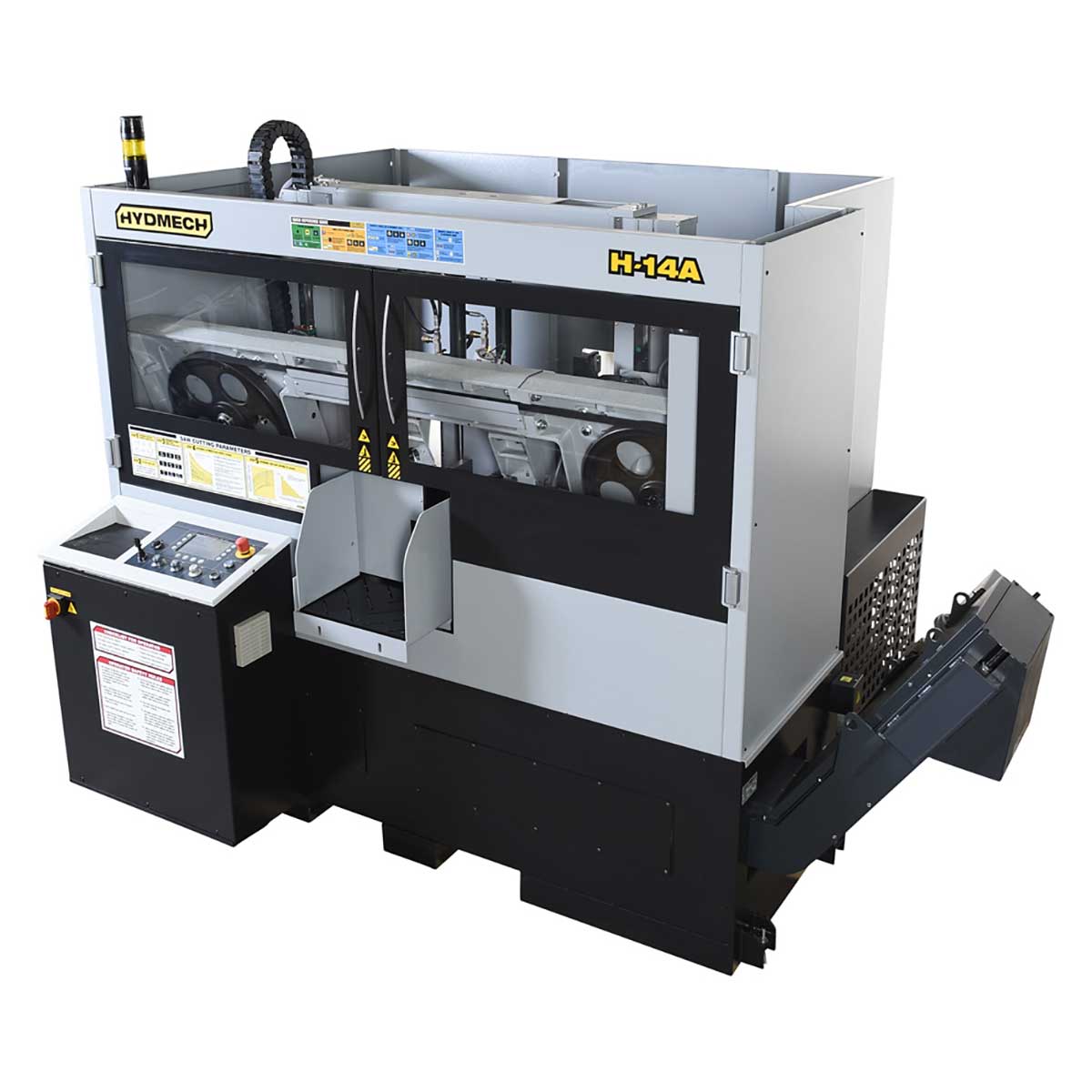

14” x 14” New Hyd-Mech Automatic Dual Post Horizontal Band Saw Model H-14A Specifications:
Capacity | |
90° rectangle (h x w) | 14″ x 14″ |
90° round | 14″ |
90° square | 14″ |
Blade Drive | 8.8 HP VFD |
Blade Speed | 49-380 (50-660- Optional Power transformer-required) SFM |
Blade Size | 1.25″ x 15′ 2″ |
Automatic Multi-Indexing | 0-24″ |
Table Height | 34″ |
Voltages Available | 480 v (208, 240 or 575 Optional Power transformer-required) |
Weight | 6,172 lbs |
Dimensions (w x l x h) | 88″ x 63″ x 78″ |
Coolant Tank Capacity | 53 Gallons |
Remnant Length | 4.7″ (11″ w/OH bundling) |
Standard Features:

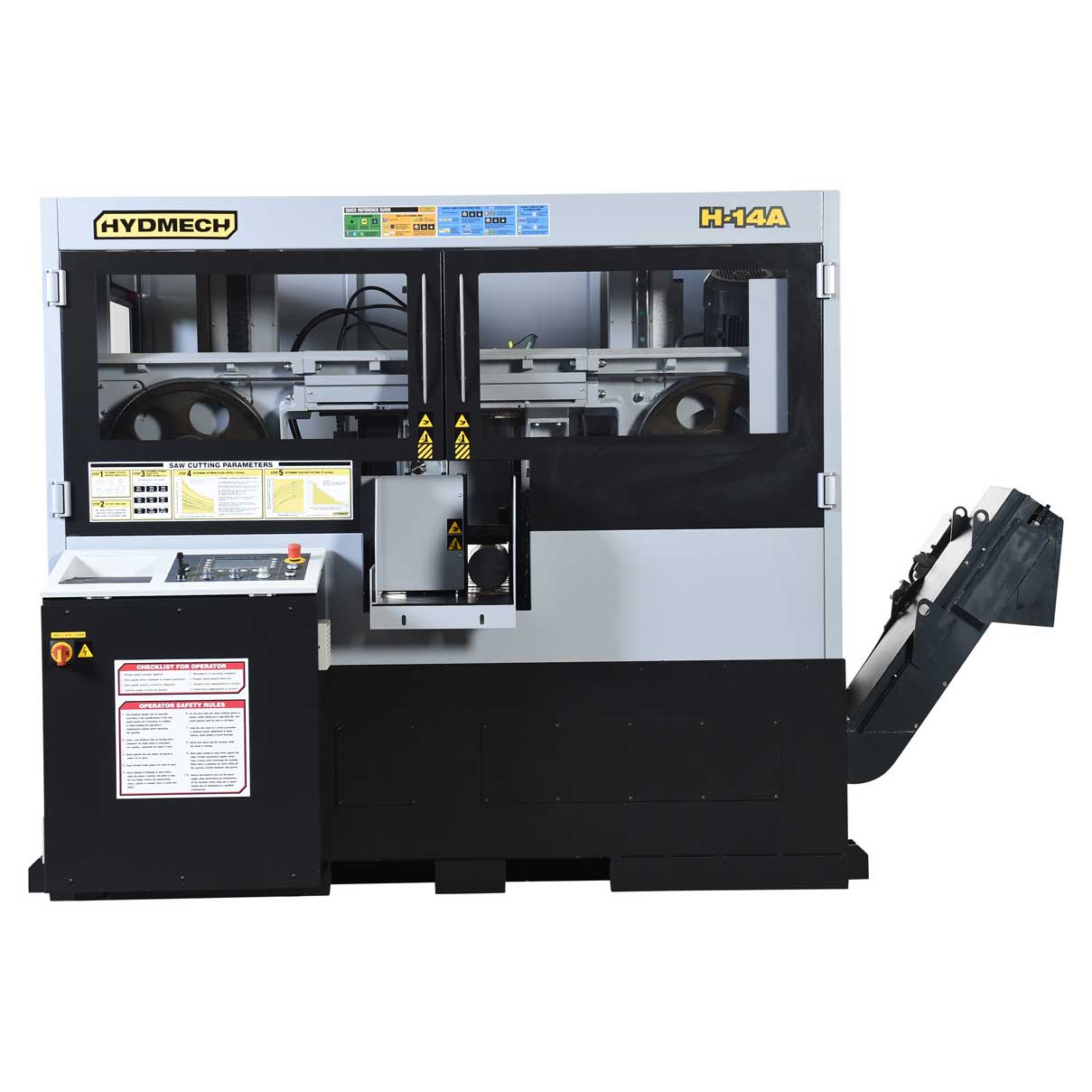

- Heavy-duty cast iron saw head

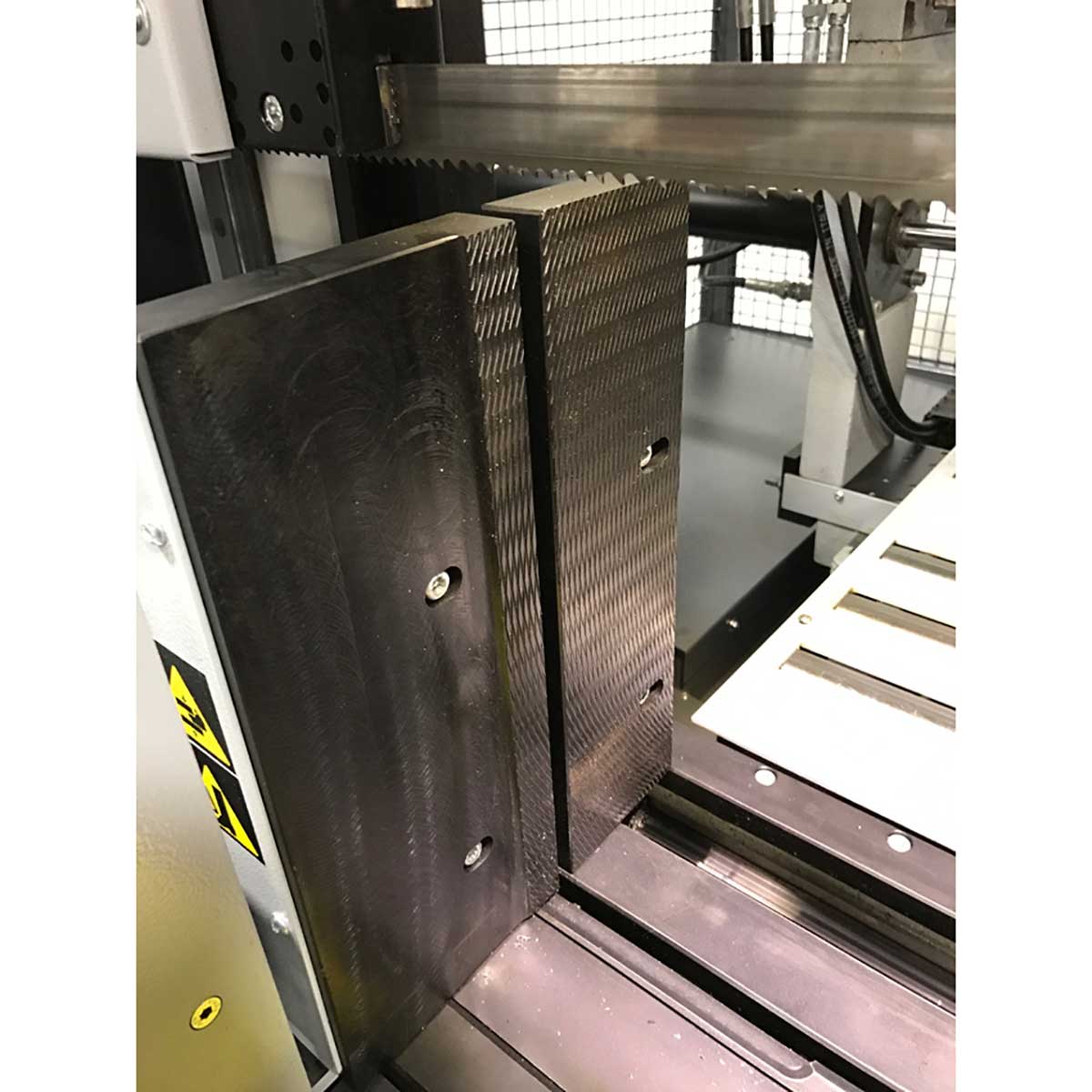

- Spilt front vise

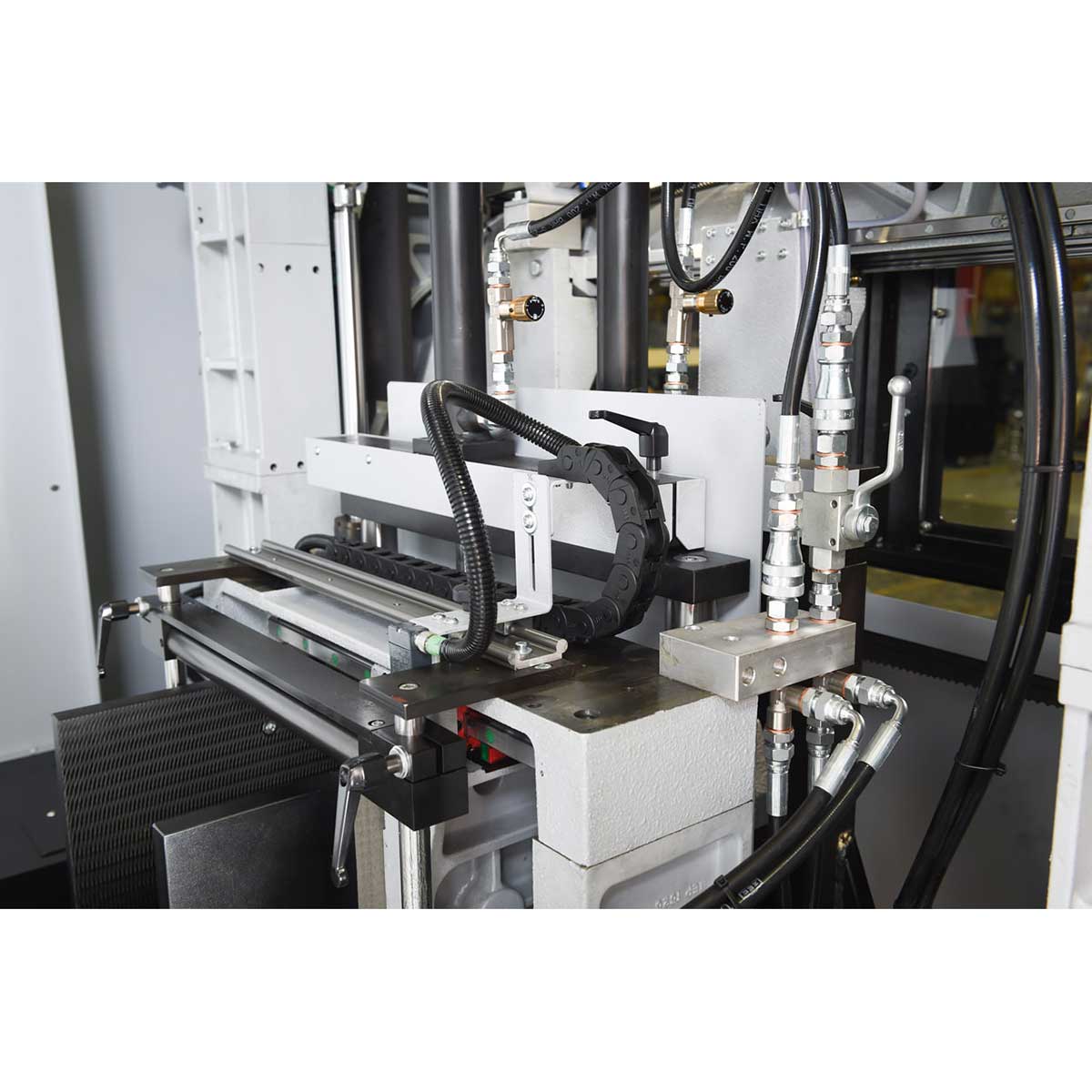

- Cast iron shuttle features automatic multi-indexing up to 24” in a single stroke with automatic kerf compensation. Powered by ball screw and stepper motor.
- On-demand hydraulics save energy

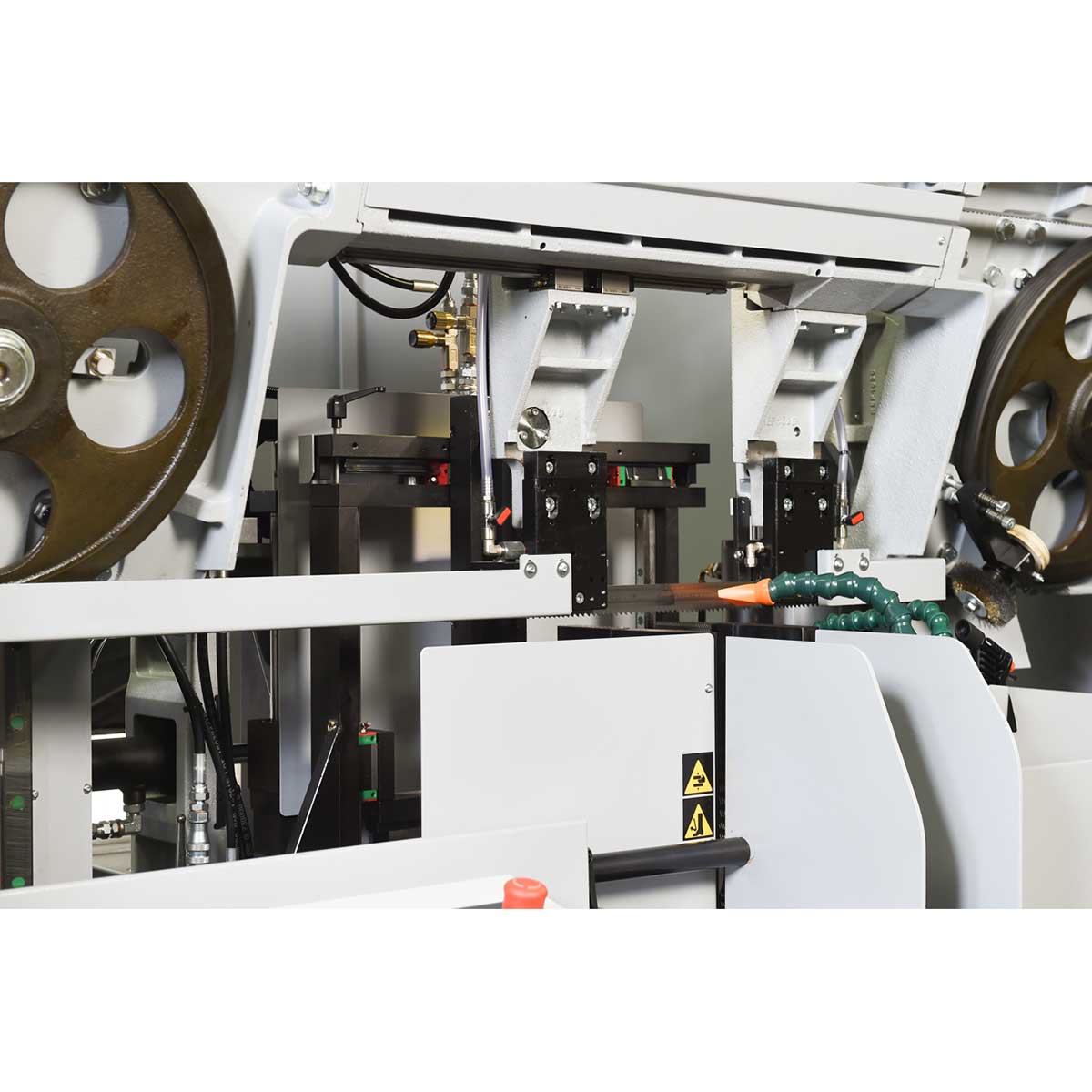

- Steel guide arms mounted on linear rails. Hydraulically powered idler side guide arm is adjustable for proper spacing.
- 8.8 HP VFD. True direct blade drive – no belts/pulleys
- Full capacity, full stroking hydraulic vises
- Hydraulic positive down feed
- Blade chamber separates material from cut part
- Cast iron band wheels
- Automatic PLC, touch screen control programmable up to 100 jobs with 20 in queue.

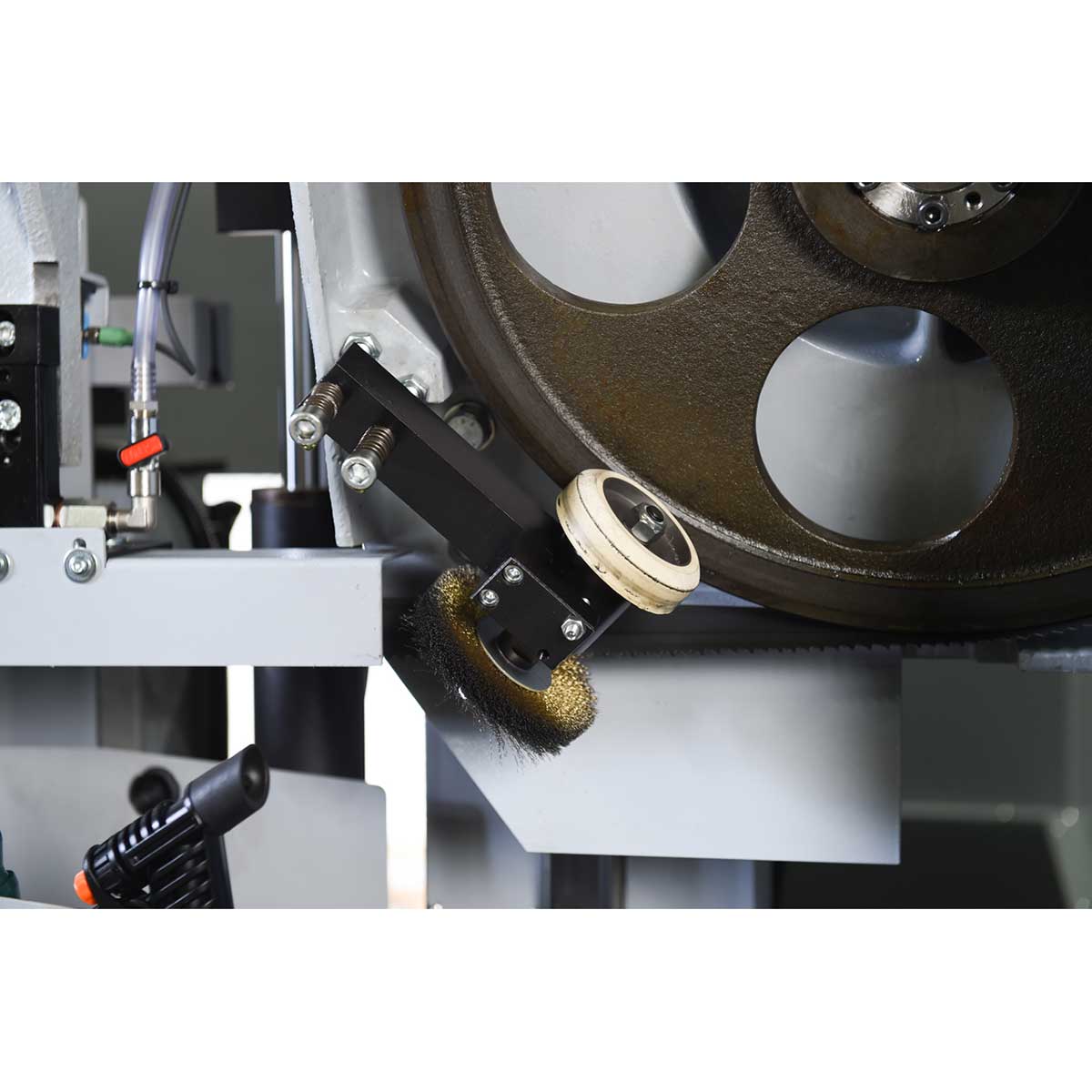

- Replaceable blade brush
- Robust steel base
- Automatic chip removal conveyor

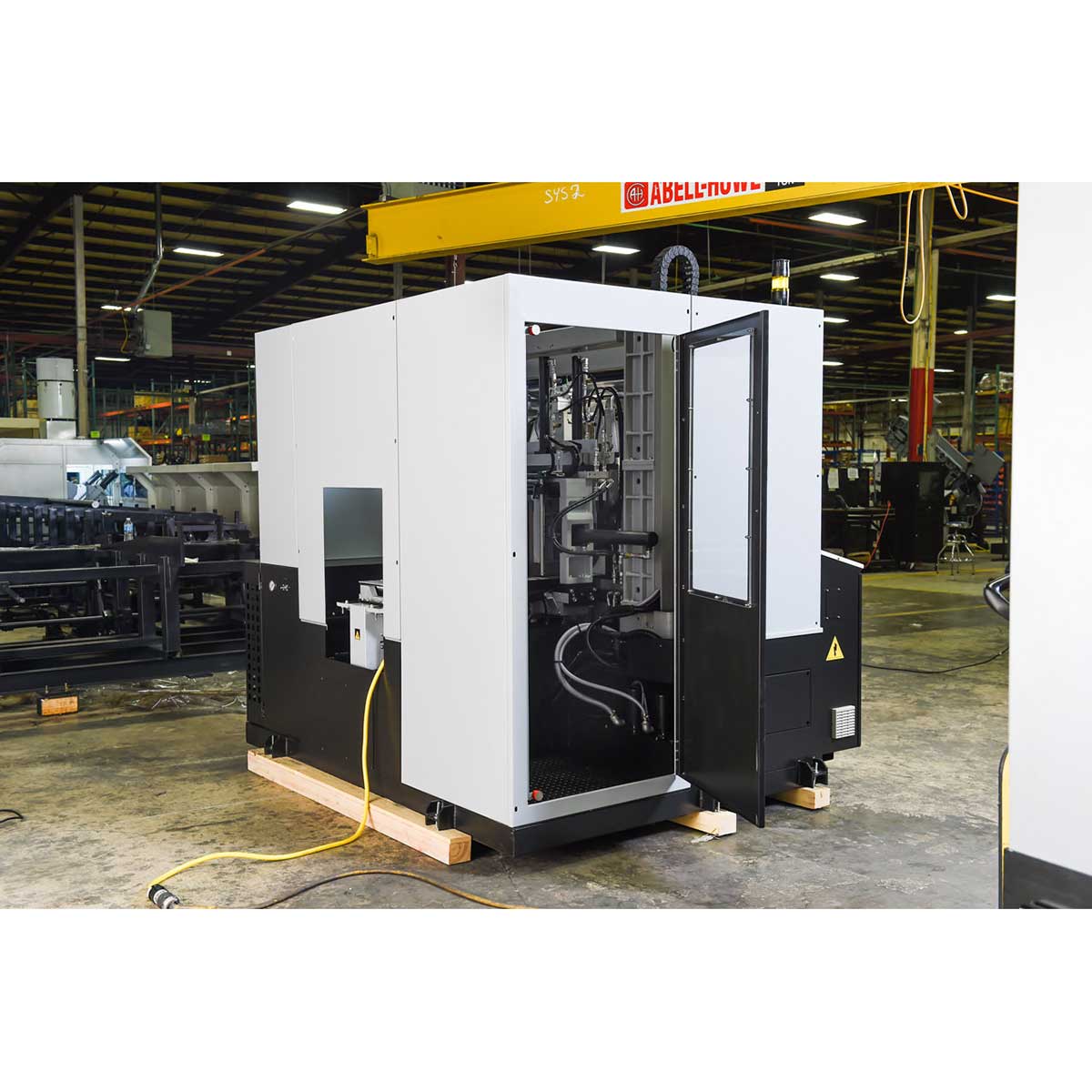

- Easy access electrical panel and hydraulics
- Variable vise pressure
- Blade breakage switch
- Blade deviation monitor

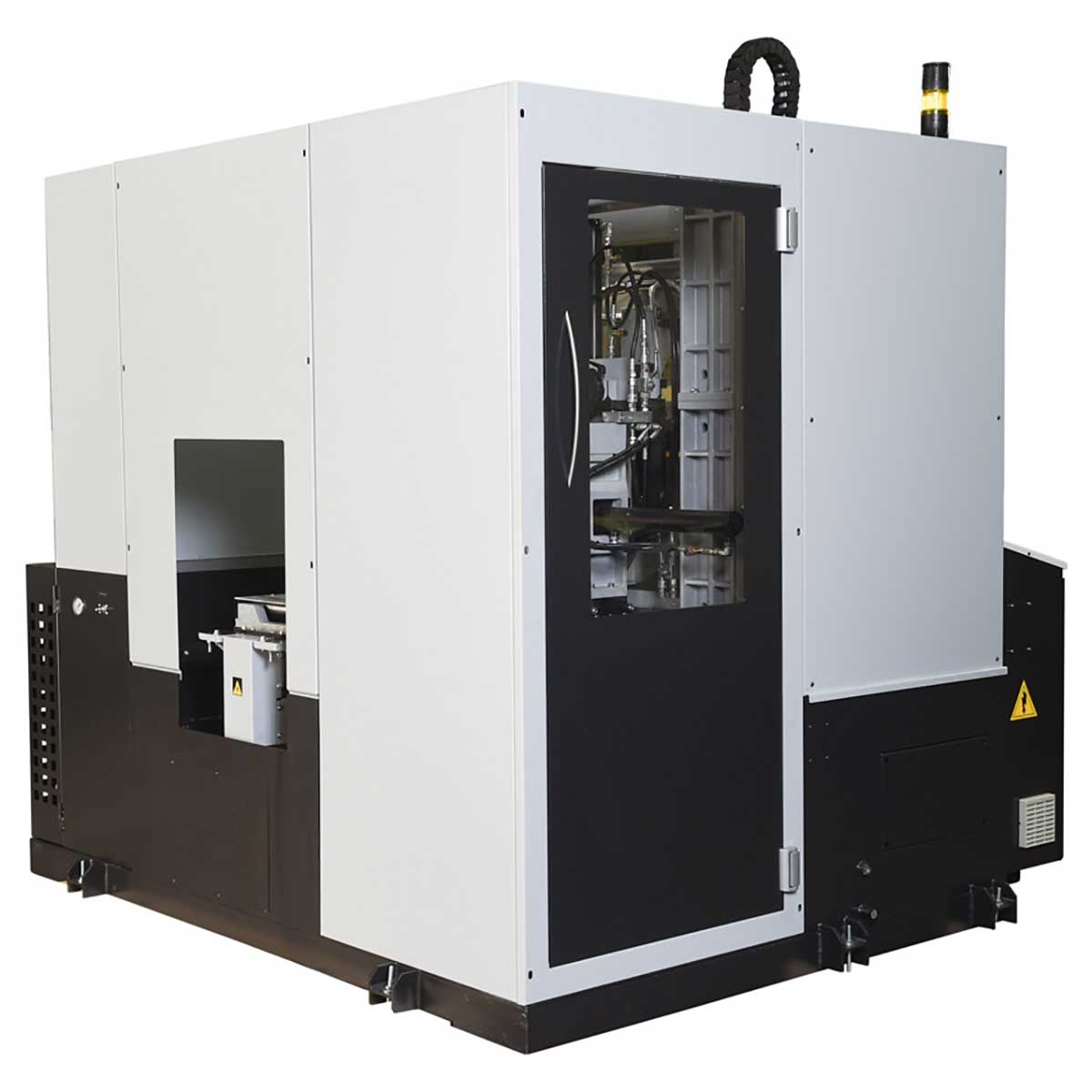

- Designed for safety with saw-in-a-box style
- Out of stock switch
- Electronic band tensioning with digital readout
- Replaceable carbide guide inserts
- Safety door interlocks
- Flood coolant with wash down hose
- Laser light
- Work light
14” x 14” New Hyd-Mech Automatic Dual Post Horizontal Band Saw Model H-14A Optional Features:

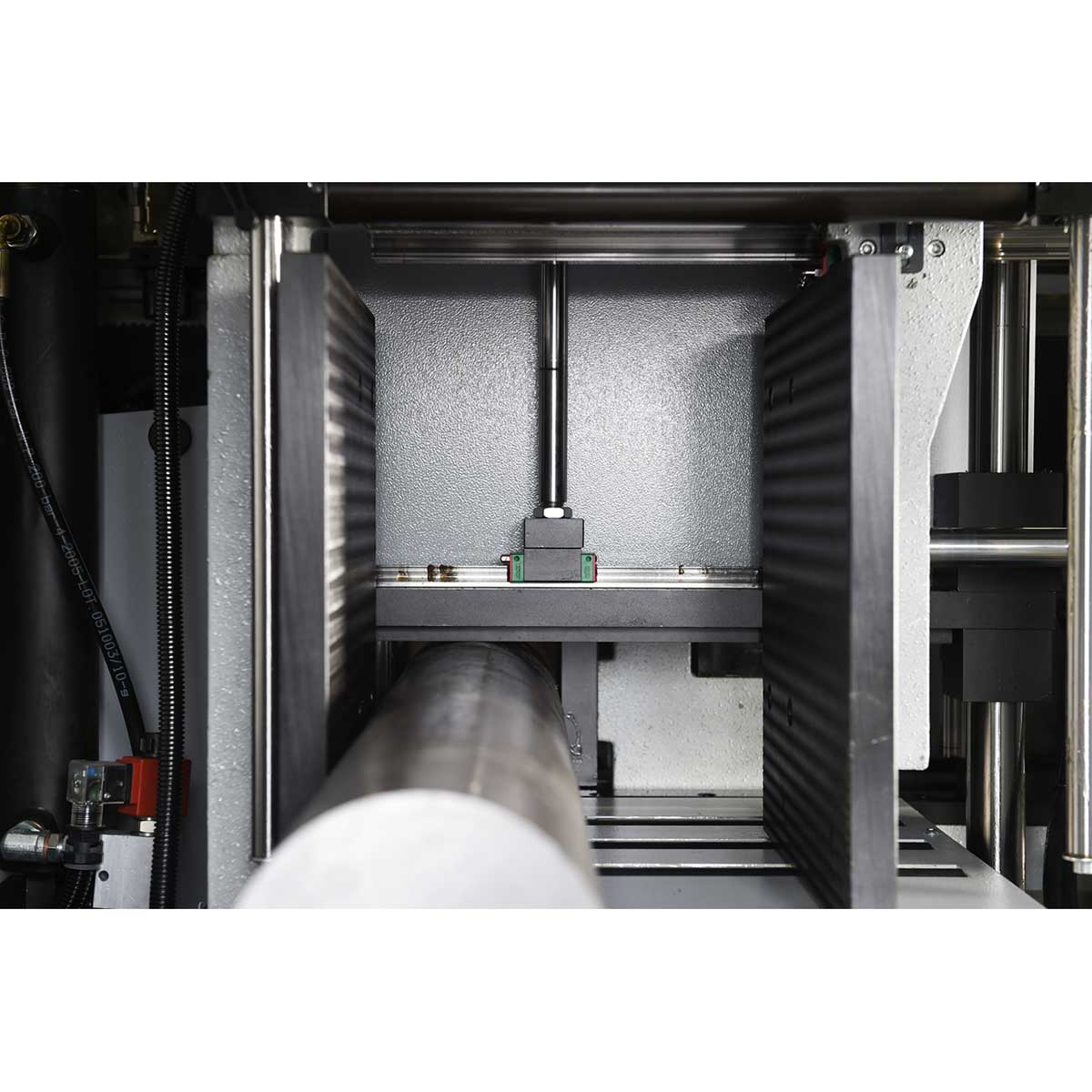

- Full capacity hydraulic overhead bundling-overhead bundling increases remnant length to 11” and reduces shuttle stroke to 21.5”
- High blade speed
- Mist lubrication
- Power transformers
- Vertical rollers
- Short remnant of 0.98”-cannot use option with overhead bundling
- Idler conveyors
- Powered conveyors
14” x 14” New Hyd-Mech Automatic Dual Post Horizontal Band Saw Model H-14A Optional Accessories:
16405005 Full capacity hydraulic overhead bundling – two vises | $6,100 |
16405040 High blade speed – 50 – 660 SFM | $6,500 |
16405060 Mist lubrication system (shop air required) | $1,900 |
Power Transformer- change in house power from 480 v to 208 v | $1,700 |
Power Transformer- change in house power from 480 v to 240 v | $1,700 |
Power Transformer- change in house power from 480 v to 575 v | $1,700 |
16405065 Short remnant – reduces remnant to 0.98” (cannot use option with overhead bundling) | $4,600 |
16405025 Vertical rollers – on machine | $1,500 |
Idler conveyors (26″W x 35″H)
|
|
18025261 Type 2 – 5’ in feed/ out feed idler conveyor | $4,500 |
18025262 Type 2 – 10’ in feed/ out feed idler conveyor | $8,900 |
Powered conveyors (26″W x 35″H) | |
18020270 Type 2 – 5’ in feed/ out feed powered conveyor | $11,200 |
18020271 Type 2 – 10’ in feed/ out feed powered conveyor | $15,500 |
18099788 Additional 10’ power add on section | $10,500 |
18092000 Pneumatic clutch | $4,100 |
Accessories for both idler and powered conveyors
|
|
18099091 Filler plates – for 5’ conveyor | $1,700 |
18099092 Filler plates – for 10’ conveyor | $3,400 |
18099084 Coolant drip pan – for 5’ conveyor | $1,800 |
18099083 Coolant drip pan – for 10’ conveyor | $3,600 |
18099080 Vertical alignment roller | $2,200 |
18099095 Fork lift cut outs | $2,200 |
