Description

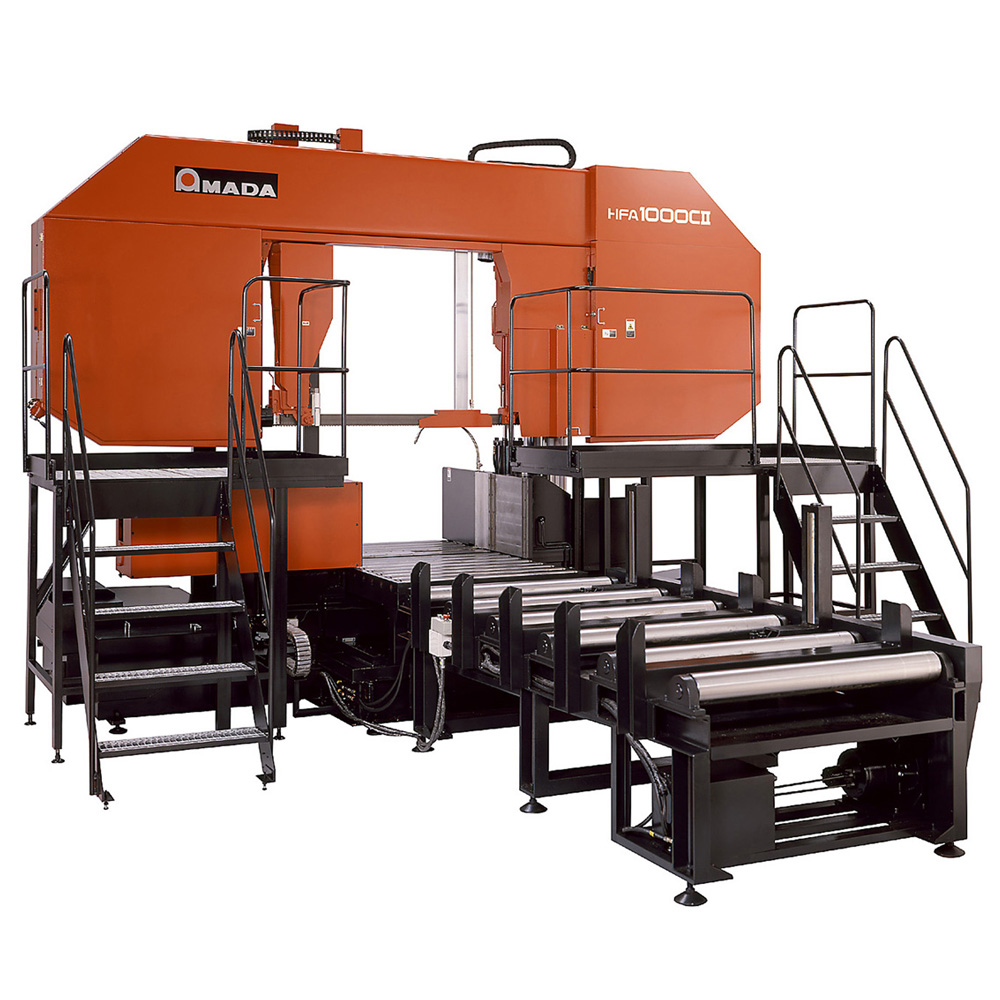

43″ x 40″ New Amada Horizontal Post Style Band Saw Model HFA1000CII Specifications:
| Cutting Capacity | |
| Round (diameter) | 15.7″-40″ |
| Rectangle (W x H) | 15.7″ x 3.9″ – 43″ x 40″ |
| Work Load Capacity | 33,069 lbs |
| Saw Blade | |
| Blade Size (L x T x W) | 36’6″ x 0.063″ x 3″ |
| Blade Speed | 49-394 ft./min by Inverter |
| Tension Control | Hydraulic |
| Blade Control | |
| Top Limit Setting | Automatic Setting with Quick Approach Feeler |
| Cutting Control | CNC-Lite, Hydraulic Flow Control Valve with Stepping Motor |
| Vise Operation | |
| Type | Front and Rear Vise |
| Control | Hydraulic Full-Stroke Cylinder |
| Motors | |
| Saw Blade | 15 HP |
| Hydraulic Pump | 5 HP |
| Cutting Fluid Pump | 1/2 HP |
| Power Requirement | |
| Power Supply Voltage | AC220V±10%, 3 PH, 60 Hz All Other Voltages Require Transformer |
| Power Requirement | 26 kVA |
| Cutting Fluid | |
| Tank Capacity | 66.1 gal |
| Pump Type | Electric |
| Hydraulic | |
| Tank Capacity | 30.4 gal |
| Pump Type | Vane Pump |
| Pressure Setting | 784 psi |
| Chip Disposal | Chip Conveyor |
| Material Index | |
| Index Mechanism | Shuttle Type |
| Stroke | 19.6″ |
| Length | 0.39″-99.999″ |
| Number of Input Block/Station | 1-99 |
| Number of Cut-Off Pieces | 1-9999 |
| Remnant Length | 13″ Plus Length of Parts |
| Machine Dimensions (W x L x H) | |
| Head-Up Position | 211.3″ x 126.6″ x 154.1″ |
| Head Down Position | 211.3″ x 126.6″ x 154.1″ |
| Table Height | 33.5″ |
| Machine Weight | 31,970 lbs |
43″ x 40″ New Amada Horizontal Post Style Band Saw Model HFA1000CII Features:
- BLADE DEVIATION MONITOR: The NC controller constantly monitors the cutting and blade conditions, including the twist of the saw blade. If these exceed the preset parameters in the automatic blade run-out detector the machine will cease cutting and indicate the reason for stopping.
- USER-FRIENDLY OPERATOR CONSOLE: By simplifying required input data, the cutting rate controller (CNC Light) makes achieving maximum cutting rates, accuracies, and longer blade life a constant.
- HIGH ACCURACY FOR LARGE-SIZED MATERIALS: This machine supports from 15.7″ x 3.9″ to 43″ x 40″. High accuracy cutting and durability.
- AUTOMATICALLY POSITIONED GUIDE ARM
- BLADE DEVIATION MONITOR
- BLADE SPEED CONTROLLED BY INVERTER
- POWERED CHIP CONVEYOR
- CNC CONTROLLED DOWN FEED
- DRIVE BY NO TORQUE LOSS HELICAL BEVEL GEAR
- FULL STROKE VISES
- HYDRAULIC BLADE TENSIONING
- KERF COMPOSITION
- MOTION DETECTOR
- PIECE COUNTER
- OUTBOARD VISE
- VIBRATION DAMPING ROLLERS
- WHEEL COVER LIMIT SWITCH
- SUB CONTROL BOX
- AUTO TRIM CUT FUNCTION
43″ x 40″ New Amada Horizontal Post Style Band Saw Model HFA1000CII Optional Accessories:
| Power Roller Table 10ft | |
| Free Roller Table 10ft | |
| Sub Control Box 65.5ft |
