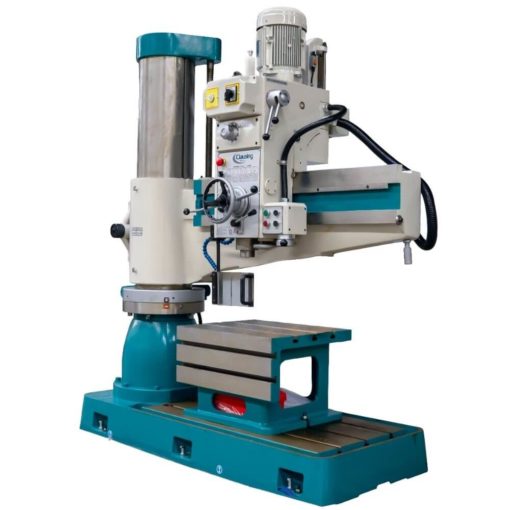

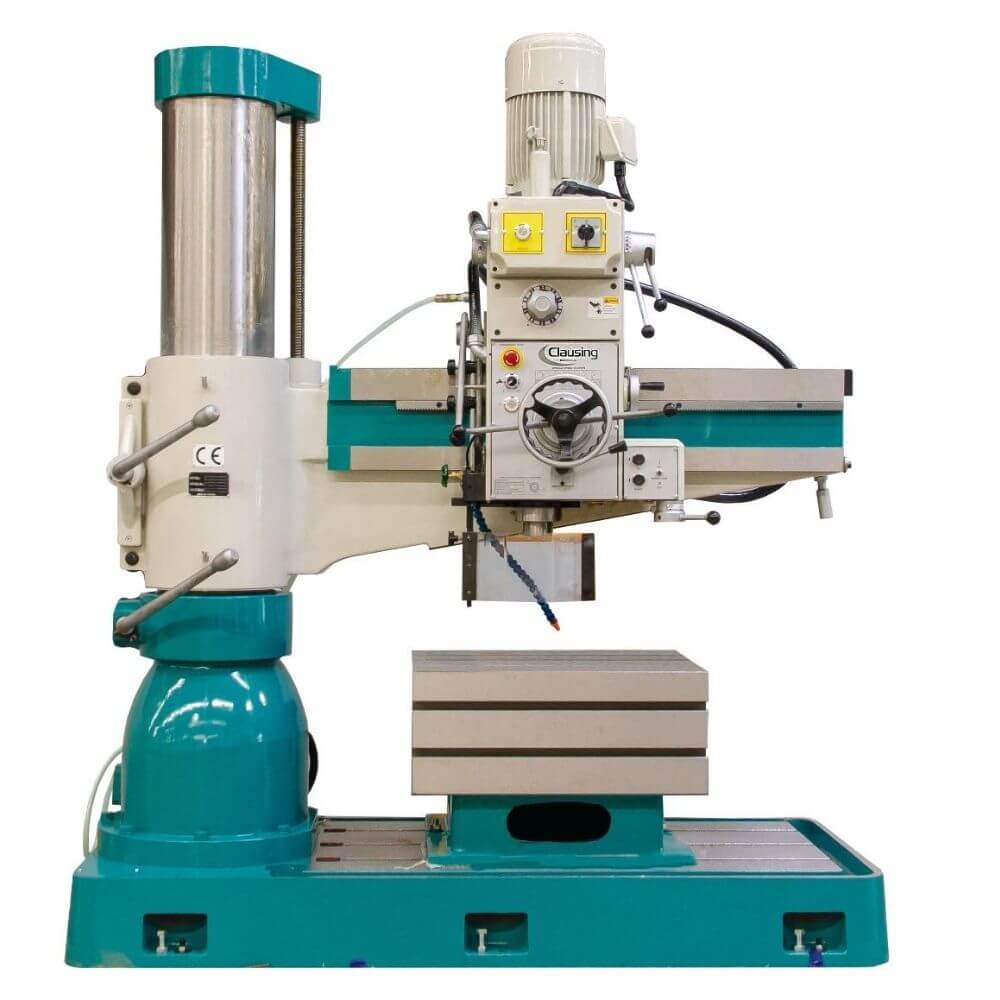

48” x 12″ New Clausing Radial Drill Model CL1230H

48″ x 12″ New Clausing Radial Drill Model CL1230H for sale at Worldwide Machine Tool view specifications, features, options and photos below.
Request a quote or call 614-255-9000
Terms:  Check with Order


SKU: 32376 Category:


48″ x 12″ New Clausing Radial Drill Model CL1230H Specifications:

Working Area
Column sleeve diameter 11.81″
Column face to spindle center Maximum 46.1″
Minimum 13.4″
Spindle head travel 35.0″
Base surface to spindle end Maximum 53.9″
Minimum 19.3″
Arm vertical travel 34.6″
Arm rotation (right & left) 180º
Baseplate working surface 48″ x 29.1″
Box table dimensions (L x W x H) 25.1″ x 20.4″ x 16.5″
Base dimensions floor area 67.9″ x 28.1″
Base dimensions height 7.1″
Maximum drilling capacity in steel 1.65″
Maximum drilling capacity in cast iron 2.16″
Maximum tapping capacity in steel 1″
Maximum tapping capacity in cast iron 1.38″
Drilling Head
Spindle taper 4MT
Spindle stroke 9.84″
Quill diameter 3.15″
Number of spindle speeds 12
Spindle speeds (rpm) 44-1500
Number of feeds 3
Spindle feed rate (in/rev.) 0.002″, 0.0035″, 0.006″
Spindle drive motor 3 hp (2sp)
Elevating motor 1 hp
Clamping motor 1 hp
Coolant pump motor 1/8 hp
Overall Measurements & Weight
Maximum machine height  109.5″
Base & column height 81.1″
Shipping dimensions (L x W x H) 80.1″ x 32.5″ x 88.2″
Net weight 4,630 lbs.
Shipping weight 5,071 lbs.


48″ x 12″ New Clausing Radial Drill Model CL1230H Features:

  • High quality cast iron arm with heat-treated and ground slides for smooth and accurate head positioning
  • The bearing bracket of gear-box is fitted with standard bearings to fit arm slide for smooth gear box operation
  • High speed gears are made of nickel-chrome steel and are heat-treated and ground for durability
  • Powerful 3 hp, 2 speed, heavy-duty spindle drive motor
  • Overload protection device
  • The main spindle is balanced by a compressed spring
  • Coolant system
  • Low volt and overload protection
  • Equipped with hydraulic clamping. With a push of a button you can have arm unclamped then move vertically, or stop then clamp automatically
  • Tool kit and manuals
  • 25” x 20” x 16” box table
  • CE Electrics (spindle guard & UL safety door)
  • Standard 230 volt 3ph other voltages may require a transformer or special order


48″ x 12″ New Clausing Radial Drill Model CL1230H Optional Accessories:

CLS100  Large tilt table 32 x 28 x 24 $11,420.00
CLS101  Small tilt table 20 x 20 x 23 $8,880.00
CLS102  Extra large box table 39 x 31 x 19 $4,955.00
CLS102B  Extra standard box table 25 x 20 x 16 $1,965.00
CLS-SBM4  Spindle braking motor 3Hp (factory installed) $875.00
CLS-CSA2  CSA/UL electrics (factory installed) (non-certified) $1,665.00
CLS-200  Auto reversing tapping feature 4MT (factory installed only) $2,095.00
