Description

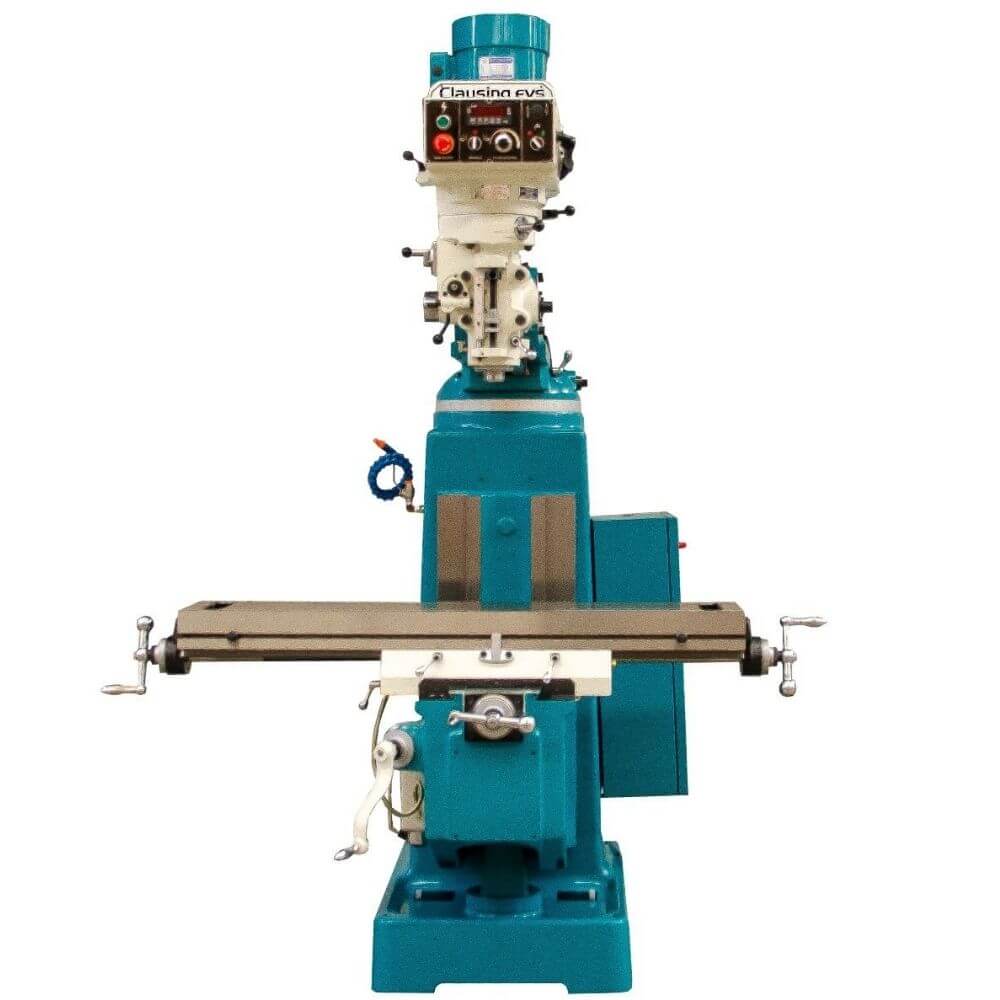

9″ x 49″ New Clausing Knee Mill Model 2EVS30 Specifications:
| Table & Ways | |
| Table size | 9″ x 49″ |
| Table size – 42 model | 9″ x 42″ |
| No. of T-slots | 3 |
| T-slot width | 5/8″ |
| T-slot center distance | 2.05″ |
| Table ways | Dovetail |
| Knee ways | Dovetail |
| Column ways | Dovetail |
| Travels | |
| X longitudinal (reduced w/ pwr feed) | 38.18″ |
| X longitudinal 42″ table (reduced w/ pwr feed) | 27.9″ |
| Y cross (reduced w/ pwr feed) | 14.17″ |
| Knee | 13.97″ |
| Ram | 18.50″ |
| Motors & Spindle | |
| Spindle motor R8 & 30 / 40 taper | 3 Hp/5 Hp Amp. Draw 208v: 7 Amp. Draw 230v: 7 Amp. Draw 460v: 5 |
| Variable spindle speed (mechanical/EVS) | RPM: 60-4300/70-4200 Low range: 60-500/70-500 High range: 550-4300/550-4200 |
| Main spindle taper | R8 or NMTB30 or NMTB40 |
| Spindle travel | 5″ |
| Quill feed (in/rev.) | 0.0015/0.0031/0.006 |
| Quill diameter | 3.38″ |
| Construction & Weight | |
| Column turret diameter | 14.96″ |
| Knee width | 11.42″ |
| Column bearing length | 16.54″ |
| Saddle/table bearing length | 19.88″ |
| Ram/turret bearing length | 16.14″ |
| Ram length | 28.94″ |
| Table load | 700 lbs. |
| Net weight | 2,100 lbs. |
| Height | 89″ |
| Depth | 66″ |
| Width | 99″ |
| Table to spindle | 3.15″ – 17.12″ |
| 45º inward | 0 – 19.68″ |
| Spindle ǿ to column | 4.53″ – 23.03″ |
| 45º outward | 6.89″ – 29.39″ |
| Head tilt | 90º right & left |
9″ x 49″ New Clausing Knee Mill Model 2EVS30 Standard Equipment:
- Meehanite castings for superior rigidity and wear resistance
- Hardened & ground, X, Y & Z ways
- X/Y ways coated with Turcite B
- Column & knee ways covers
- T-slots are ground to provide reference edge for positioning your workplace
- Hardened & ground table surface
- Hardened & ground spindle
- Chromed & ground quill
- Chromed X, Y, & Z leadscrews
- Double nut leadscrew for backlash compensation
- ABEC 7/CP4 spindle bearings
- Coolant system w/pump & switch
- Flexible segmented coolant nozzle
- Chromed Y screw covers and one-piece wipers
- 7/16”-20 Imperial drawbar R8, or 1/2”-20 Imperial drawbar NMTB30
- 3 Hp AC motor
- Manual drilling capacity 3/4″ taping capacity 0.393″
- Spindle braking motor on EVS series
- Variable speed drive
- Articulating head for compound angles
- Worm gear angular positioning of head in two directions
- Lever-operated manual rapid quill movement
- Handwheel for fine quill feed
- Adjustable automatic feed disengagement for quill feed in both directions
- Micrometer depth stop
- Reversing switch for clockwise or counter clockwise operation
- R8 or NMTB 30
- Spindle brake (hand operated)
- One-shot lubrication
- Leveling bolts and pads
- Tool kit, test and accuracy chart
- Operations manual/parts list
- Full electrics w/ disconnect (EVS series only)
- 2VS series standard 208/230 or 460 3 phase (other voltages require a transformer or special order)
- 2EVS series standard 230 volt 3 phase (other voltages require a transformer or special order)
9″ x 49″ New Clausing Knee Mill Model 2EVS30 Optional Accessories:
| SM1301 208v to 230v Transformer 3 HP | $1,290.00 |
| SM1301A 460v to 230v Transformer 3 HP | $2,510.00 |
| R8 Spindle Accessories Only | |
| 2VS020-1 R8 Milling Chuck Kit w/11 ER Style Collets | $655.00 |
| 2VS030P Horiz. Milling Attachment 3pc. Set (cannot use with power drawbar option) | $1,195.00 |
| 2VS031P R8 Rt. Angle Attachment (cannot use with power drawbar option) | $765.00 |
| Z384-SET-1 R8 Metric Set 2mm by 1mm, 19 Collets | $425.00 |
| Z384-SET-5 R8 Inch Collet Set 1/8 to 7/8 by 32nds, 25 Collets | $1,475.00 |
| Z384-SET-6 R8 Inch Collet Set 1/8 to 7/8 by 1/16ths, 13 Collets | $315.00 |
| Z384-SET-7 R8 Inch Collet Set 1/8 to ¾ by 1/8ths, 6 Collets | $230.00 |
| FV-9031G R8 to J2 Arbor for FV-9030G | $185.00 |
| FV-9033G R8 to J6 Arbor for FV-9032G | $170.00 |
| FV-9041G 12pc. R8 Collet Rack | $60.00 |
| FV9050G ½” R8 Shell Mill Holder | $100.00 |
| FV-9051G ¾” R8 Shell Mill Holder | $150.00 |
| FV-9052G 1” R8 Shell Mill Holder | $100.00 |
| FV-9080G R8 End Mill Adapter Set 3/16-1 ¼ (8 pcs.) | $320.00 |
| 2VS8408 Air Power Draw Bar R8 (US MFG) (installed) | $1,385.00 |
| NMTB30 Spindle Accessories Only | |
| 2VS021 NMTB30 Milling Chuck Kit w/11 ER Style Collets | $655.00 |
| 2VS030AP NMTB30 Horiz. Milling Attachment 3pc. Set (cannot use with power drawbar option) | $1,340.00 |
| 2VS031AP NMTB30 Rt. Angle Attachment (cannot use with power drawbar option) | $985.00 |
| FV-9081G NMTB End Mill Adapter Set 3/16 – 1 (7 pcs) | $740.00 |
| 2VS8430 Air Power Draw Bar NMTB30 (US MFG) (installed) | $1,385.00 |
| All Accessories | |
| 2VS001P Chip Tray (not required with 2VS-RSG) | $535.00 |
| 2VS-RSG Chip Tray and Rear Splash Guard Sides of Column (cannot be used with a knee scale or power feed installation) | $2,100.00 |
| 2VS002 Full Electrics w/Disconnect Box & CNTL Box (factory) (not required for EVS series) | $1,110.00 |
| 2VS002F Full Electrics w/Disconnect Box & CNL Box (field or stock machines not required for EVS series) | $1,840.00 |
| 2VS002A Central 110v Wiring Point w/6 Plugs & 8’ Power Cord | $265.00 |
| 2VS010 52 Piece Clamping Kit | $195.00 |
| 2VS040P 4” Riser Block | $760.00 |
| 2VS041P 6” Riser Block | $845.00 |
| 2VS042P 8” Riser Block | $880.00 |
| 2VS045 X,Y Ball Screws I/O Lead Screws (factory installed) | $2,345.00 |
| 2VS050 Auto Lube Pump 110V | $330.00 |
| 2VSX350 X-Axis Servo Feed (USA MFG) | $1,855.00 |
| 2VSXA X-Axis Align Power Feed (Taiwan) | $840.00 |
| 2VSY350 Y Axis Servo Feed (USA MFG) (cannot be used with ballscrew option) | $1,930.00 |
| 2VSYA Y Axis Align Power (Taiwan) (cannot be used with ballscrew option) | $865.00 |
| 2VSK350 Knee Servo Feed (USA MFG) | $1,970.00 |
| 2VSKA Knee Align Power (Taiwan) | $865.00 |
| FV-9010G Kurt 6” Vise Only | $1,100.00 |
| FV-9011G Kurt 6” Swivel Base for FV-9010G | $730.00 |
| FV-9012G Vise Step Key Kit 11/16 x 5/8 (set of 2) | $95.00 |
| FV-9030G ½” Keyless Drill Chuck | $230.00 |
| FV-9032G 1/8” to 5/8” Keyless Drill Chuck | $240.00 |
| FV-9070L LED Work Light w/3Pin 110V Plug | $220.00 |
| CS-9062 Coolant Mist System 1 Gal | $1,485.00 |
| 2VS-CE CE Electrics w/ Spindle Guard (factory order) | $2,315.00 |
| 2VS-CSA CSA Electrics Canadian Specifications (non-certified) | $825.00 |
| 2VS-BRKM Braking Motor In lieu of Standard Motor (factory inst) (EVS series standard) | $820.00 |
| SPDL-GR8-30 Spindle Guard R8 and NT30 Spindles (factory order) | $1,160.00 |
| SPDL-GR8-30F Spindle Guard R8 and NT30 Spindles (field install) | $1,355.00 |
| DRO Kits 42″ Table | |
| AR14-35-200M 2VS 2 Axis 9”x 42” TBL Acu-Rite 200 DRO (installed) | $3,710.00 |
| AR14-35-300M 2VS 2 Axis 9” x 42” TBL Acu-Rite 300 DRO (installed) | $4,130.00 |
| AR4-14-35-200M 2VS 3 Axis w/Spindle 9”x 42” TBL Acu-Rite 200 DRO (installed) | $4,660.00 |
| AR4-14-35-300M 2VS 3 Axis w/Spindle 9”x 42” TBL Acu-Rite 300 DRO (installed) | $5,080.00 |
| AR14-35-16-200M 2VS 3 Axis w/Knee 9”x 42” TBL Acu-Rite 200 DRO (installed) | $4,960.00 |
| AR14-35-16-300M 2VS 3 Axis w/Knee 9”x 42” TBL Acu-Rite 300 DRO (installed) | $5,390.00 |
| AR4-14-35-16300M 2VS 4 Axis w/Knee 9”x 42” TBL Acu-Rite 300 DRO (installed) | $6,450.00 |
| DRO Kits 49″ Table | |
| AR14-40-200M 2VS 2 Axis 9”x 49” TBL Acu-Rite 200 DRO (installed) | $4,020.00 |
| AR14-40-300M 2VS 2 Axis 9” x 49” TBL Acu-Rite 300 DRO (installed) | $4,450.00 |
| AR4-14-40-200M 2VS 3 Axis w/Spindle 9”x 49” TBL Acu-Rite 200 DRO (installed) | $4,980.00 |
| AR4-14-40-300M 2VS 3 Axis w/Spindle 9”x 49” TBL Acu-Rite 300 DRO (installed) | $5,400.00 |
| AR14-40-16-200M 2VS 3 Axis w/Knee 9”x 49” TBL Acu-Rite 200 DRO (installed) | $5,280.00 |
| AR14-40-16-300M 2VS 3 Axis w/Knee 9”x 49” TBL Acu-Rite 300 DRO (installed) | $5,700.00 |
| AR4-14-40-16300M 2VS 4 Axis w/Knee 9”x 49” TBL Acu-Rite 300 DRO (installed) | $6,760.00 |
| NOTE: Acu-Rite edge finder requires 300 DRO kits | |
| NW16-36-NMS800 2VS 2 Axis 9”x 49” TBL Newall DRO (installed) | $4,020.00 |
| NW6-16-36-NMS800 2VS 3 Axis w/Spindle 9”x 49” TBL Newall DRO (installed) | $4,980.00 |
| NW16-16-36-NMS800 2VS 3 Axis w/Knee 9”x 49” TBL Newall DRO (installed) | $5,280.00 |
| FG14-40-PKMC 2VS 2 Axis 9”x 49” TBL Fagor DRO 400i (installed) | $4,020.00 |
| FG14-40-PKM 2VS 2 Axis 9”x 49” TBL Fagor LED DRO 20i (installed) | $3,620.00 |
| FG06-14-40-PKMC 2VS 3 Axis w/Spindle 9”x 49” TBL Fagor DRO 400i (installed) | $4,980.00 |
| FG06-14-40-PKM 2VS 3 Axis w/Spdl 9”x 49” TBL Fagor LED DRO 20i (installed) | $4,580.00 |
| FG16-14-40-PKMC 2VS 3 Axis w/Knee 9”x 49” TBL Fagor DRO 400i (installed) | $5,280.00 |
| FG16-14-40-PKM 2VS 3 Axis w/Knee 9”x 49” TBL Fagor LED DRO 20i (installed) | $4,880.00 |
